Briggs & Stratton 13R232-0021-F1 Horizontal Engine, Replaces 13R232-0001-F1 for SALE
$ 207,90
Brand: Briggs & Stratton EnginesShop the Briggs & Stratton 13R232-0021-F1 Horizontal Engine, Replaces 13R232-0001-F1 with 9.5 ft-lb gross torque. Replaces model 13R232-0001-F1.
Briggs & Stratton 13R232-0021-F1 Horizontal Engine, Replaces 13R232-0001-F1

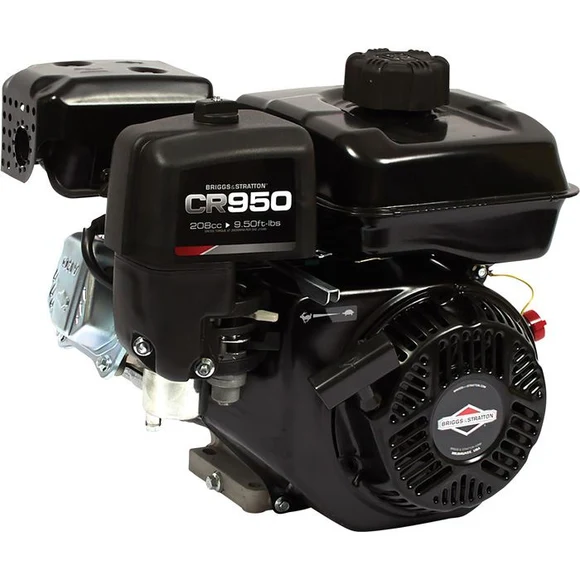

The Briggs & Stratton 13R232-0021-F1 CR950 Horizontal Engine delivers dependable power for compatible log splitters, pressure washers, compressors, tillers, and other utility equipment. This 208cc single-cylinder OHV engine produces 9.5 ft-lb of gross torque, providing reliable performance for demanding residential applications.
Key Features
- Genuine Briggs & Stratton CR950 Series engine
- Replaces/supersedes 13R232-0001-F1
- 208cc single-cylinder displacement
- 9.5 ft-lb gross torque
- Durable OHV configuration
- Dura-Bore cast-iron cylinder sleeve
- Dual ball-bearing support
- Dual-Clean air filtration system
- Maintenance-free Magnetron electronic ignition
- Float-feed carburetor
- Recoil starting system
- Mechanical governor
- Low-oil shutdown protection
- Fuel tank and muffler included
Specifications
| Specification | Details |
|---|---|
| Manufacturer | Briggs & Stratton |
| Model/MPN | 13R232-0021-F1 |
| Replaces | 13R232-0001-F1 |
| Engine series | CR950 |
| Engine type | Single-cylinder, four-cycle OHV |
| Displacement | 208cc |
| Gross torque | 9.5 ft-lb |
| Bore × stroke | 2.68″ × 2.20″ |
| Shaft orientation | Horizontal |
| Crankshaft diameter | 3/4″ |
| Crankshaft length | 2-27/64″ |
| Keyway | 3/16″ |
| Tapped end | 5/16-24 |
| PTO shaft rotation | Counterclockwise |
| PTO height | Approximately 4.17″ |
| Maximum RPM | 3,300 |
| Starting system | Recoil |
| Ignition | Magnetron electronic |
| Carburetor | Float feed |
| Governor | Mechanical |
| Cooling system | Air cooled |
| Oil capacity | 20 fl oz |
| Fuel capacity | 3.2 qt |
| Low-oil shutdown | Yes |
| Muffler | Included |
| Fuel tank | Included |
| UPC | 810003901583 |
