Humminbird HELIX 9 CHIRP MEGA SI+ G3N Fish Finder/GPS Chartplotter for SALE
$ 643,50
Brand: HumminbirdShop the Humminbird HELIX 9 CHIRP MEGA SI+ G3N Fish Finder/GPS Chartplotter with a 9-inch display, XM 9 HW MSI T transducer, CHIRP sonar, mapping and Ethernet.

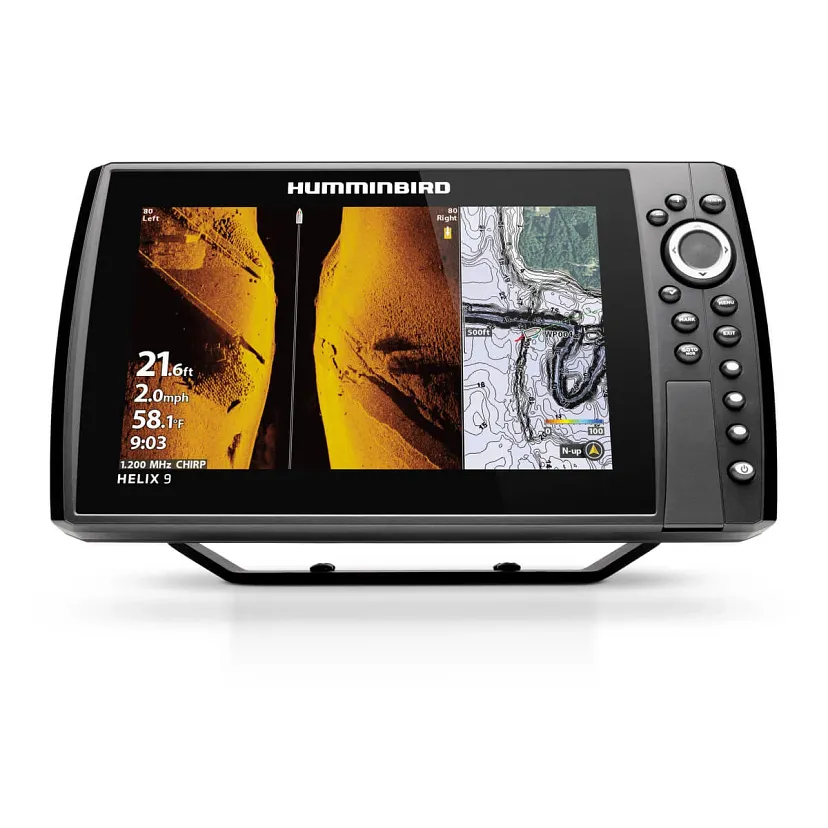

Humminbird HELIX 9 CHIRP MEGA SI+ G3N Fish Finder/GPS Chartplotter
The Humminbird HELIX 9 CHIRP MEGA SI+ GPS G3N gives anglers detailed sonar imaging, reliable navigation and extensive networking capabilities in one marine display. Its 9-inch, 1024 × 600 color screen provides clear views of sonar returns, charts and customized split-screen layouts.
MEGA Side Imaging+ delivers detailed coverage up to 200 feet on each side of the boat, while MEGA Down Imaging+ reveals fish and structure down to 200 feet beneath the transducer. Dual Spectrum CHIRP sonar produces well-defined fish arches and improved target separation, with Wide, Narrow and Full search modes.
The internal GPS and built-in Humminbird Basemap provide coastal coverage and charts for more than 10,000 U.S. lakes. AutoChart Live lets you create personalized maps showing depth contours, vegetation and bottom hardness, with eight hours of internal recording capacity.
As a network-capable G3N model, the HELIX 9 supports Ethernet connections to compatible Humminbird displays, MEGA Live Imaging, MEGA 360 Imaging, Minn Kota i-Pilot Link and other marine technologies. Bluetooth, dual microSD slots and optional NMEA 2000 connectivity provide additional expansion options.
Key Features
- 9-inch color TFT display
- 1024 × 600-pixel resolution
- MEGA Side Imaging+ with 200 ft coverage per side
- MEGA Down Imaging+ to 200 ft
- Dual Spectrum CHIRP sonar
- SwitchFire sonar control
- Internal GPS receiver
- Built-in Humminbird Basemap
- AutoChart Live mapping
- High-speed Ethernet networking
- MEGA Live and MEGA 360 compatible
- Bluetooth connectivity
- Dual microSD card slots
- Keypad operation with preset-view buttons
- LakeMaster, CoastMaster and compatible Navionics chart support
Specifications
| Specification | Details |
|---|---|
| Model | HELIX 9 CHIRP MEGA SI+ GPS G3N |
| Product code | 410860-1 |
| UPC/GTIN | 0082324052934 |
| Display size | 9 inches |
| Display resolution | 1024 × 600 pixels |
| Display type | Color TFT, 16-bit |
| Included transducer | XM 9 HW MSI T |
| Transducer mounting | Transom |
| Standard sonar | Dual Spectrum CHIRP, MEGA SI+, MEGA DI+ |
| Standard sonar depth | Up to 1,200 ft |
| Optional 50 kHz depth | Up to 3,500 ft |
| MEGA Side Imaging range | 200 ft per side/400 ft total |
| MEGA Down Imaging depth | Up to 200 ft |
| Target separation | 2.5 inches |
| GPS receiver | Internal |
| Waypoints | 2,750 |
| Routes | 45 |
| Memory card slots | Two microSD |
| Networking | Ethernet and Bluetooth |
| NMEA 2000 | Optional accessory required |
| Power input | 10.8–20 VDC |
| Power draw | 1 amp |
| Mounting | Gimbal; optional in-dash |
| Warranty | Two-year limited warranty for qualifying original purchases |
What’s Included
- HELIX 9 G3N control head
- XM 9 HW MSI T transom-mount transducer
- Transducer mounting hardware
- Gimbal mounting bracket and hardware
- Power cable
- Protective unit cover
- Documentation
