Lowrance HDS PRO 16 with Active Imaging HD 3-in-1 Transducer for SALE
$ 3.432,00
Brand: LowranceBuy the Lowrance HDS PRO 16 with Active Imaging HD 3-in-1 Transducer, Full HD touchscreen, C-MAP charts and ActiveTarget 2 compatibility.

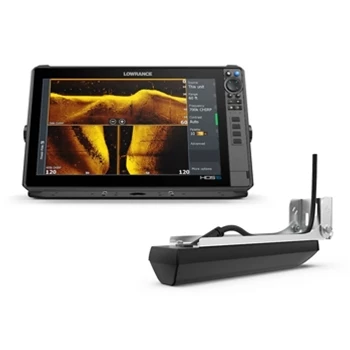

Lowrance HDS PRO 16 with Active Imaging HD 3-in-1 Transducer
The Lowrance HDS PRO 16 with Active Imaging HD 3-in-1 Transducer delivers an expansive, high-resolution view of sonar, charts and connected vessel systems.
Key Features
- 16-inch SolarMAX HD IPS touchscreen
- 1920 × 1080 Full HD resolution
- More than 1,200-nit brightness
- Active Imaging HD 3-in-1 transducer included
- Lowrance CHIRP sonar
- High-definition SideScan and DownScan Imaging
- ActiveTarget and ActiveTarget 2 compatible
- Active Imaging HD operation up to 1.2 MHz
- Independent dual 1 kW sonar capability
- C-MAP DISCOVER OnBoard charts on AMER models
- C-MAP Genesis Live real-time mapping
- Integrated 10 Hz GPS/GLONASS
- Four programmable quick-access keys
- HDMI and composite-video input
- Ethernet, NMEA 2000, Wi-Fi and Bluetooth
- Two microSD card slots
- IPX7 waterproof rating
FishReveal SideScan requires an optional S3100 sonar module and compatible transducer.
Technical Specifications
| Specification | Details |
|---|---|
| Display | 16-inch SolarMAX HD IPS |
| Resolution | 1920 × 1080 Full HD |
| Brightness | More than 1,200 nits |
| Viewing angles | 80° top/bottom and 80° left/right |
| Controls | Multitouch, keypad and 4 programmable keys |
| Included transducer | Active Imaging HD 3-in-1 |
| Sonar technologies | CHIRP, SideScan and DownScan Imaging |
| Active Imaging HD frequencies | DownScan: 700/1200 kHz; SideScan: 455/1075 kHz |
| Live-sonar compatibility | ActiveTarget and ActiveTarget 2 |
| Sonar output | Independent dual 1 kW capable, transducer dependent |
| Included cartography | C-MAP DISCOVER OnBoard on AMER models |
| GPS | Integrated 10 Hz GPS/GLONASS |
| Internal storage | 8 GB |
| Waypoints | 3,000 |
| Routes | 100 |
| Trails | 100, up to 10,000 points each |
| Memory-card slots | 2 × microSD, up to 32 GB each |
| Sonar ports | 2 |
| Ethernet | 2 × 100 Mbit ports |
| Marine networking | NMEA 2000 and NMEA 0183 |
| Wireless | Wi-Fi and Bluetooth 4.0 |
| Video input | Composite video and HDMI |
| USB | 1 × USB-A |
| Supply voltage | 12 V DC; operating range 10.8–17 V |
| Maximum power consumption | 56.6 W |
| Recommended fuse | 5 A |
| Waterproof rating | IPX7 with card door closed |
| Dimensions | 430.5 × 259.2 × 87.8 mm |
| Display weight | 3.60 kg |
| Mounting | Bracket or panel mounting |
| Warranty | 2 years |
| AMER SKU/MPN | 000-15990-001 |
