Humminbird HELIX 7 CHIRP MEGA SI GPS G4N Fish Finder/Chartplotter – Network Compatible for SALE
$ 650.00
Brand: HumminbirdBuy the Humminbird HELIX 7 CHIRP MEGA SI GPS G4N Fish Finder/Chartplotter – Network Compatible sonar, GPS, MEGA Imaging, Ethernet, Bluetooth, NMEA 2000, and One-Boat Network.

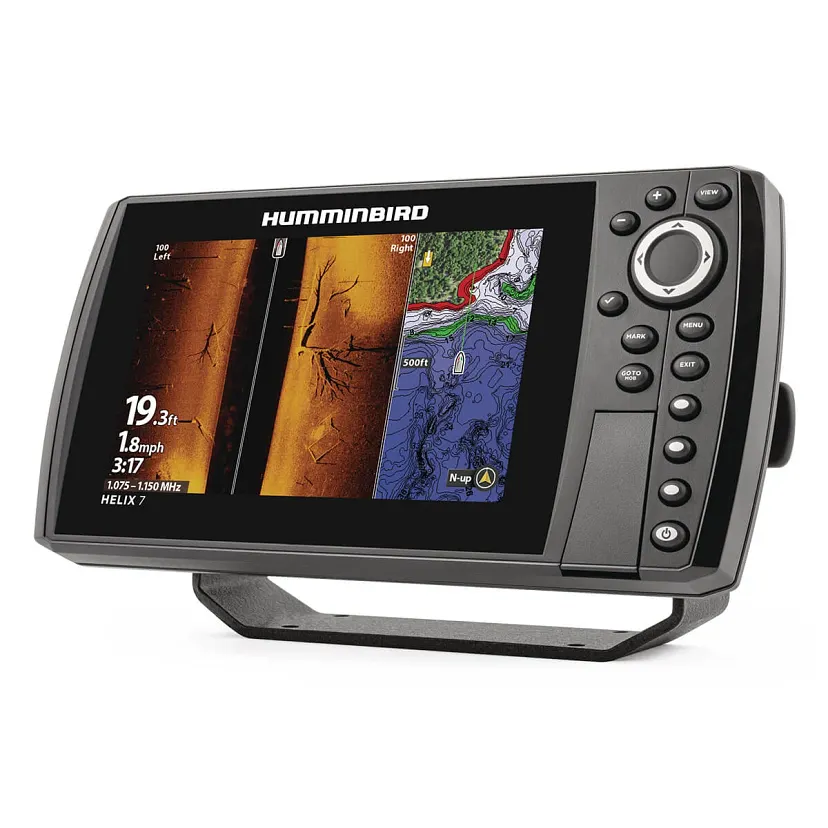

Humminbird HELIX 7 CHIRP MEGA SI GPS G4N Fish Finder/Chartplotter – Network Compatible
The Humminbird HELIX 7 CHIRP MEGA SI GPS G4N Fish Finder/Chartplotter combines detailed sonar imaging, accurate navigation, and extensive networking in a compact marine-electronics system. Its sunlight-readable 7-inch color display offers a 1024 × 600 resolution and multiple split-screen views for monitoring sonar, charts, and connected equipment.
The included XNT 9 HW MSI 150 T transom-mount transducer provides MEGA Side Imaging, MEGA Down Imaging, and Dual Spectrum CHIRP sonar. MEGA Side Imaging scans up to 125 feet on each side of the boat, while MEGA Down Imaging provides detailed coverage below. Dual Spectrum CHIRP displays defined fish arches, bottom structure, and targets with 2.5-inch separation.
Internal GPS, Humminbird Basemap, and AutoChart Live support dependable navigation and custom mapping. Optional LakeMaster, CoastMaster, and compatible Navionics charts provide additional coverage.
Unlike the non-network G4 model, the G4N includes Ethernet, Bluetooth, and NMEA 2000. It integrates with compatible Minn Kota i-Pilot Link systems, Talon and Raptor anchors, MEGA Live, MEGA 360 Imaging, radar, AIS, and other Humminbird displays, making it ideal for building a connected fishing system.
Key Features
- 7-inch color display
- 1024 × 600-pixel resolution
- Reliable keypad interface
- MEGA Side Imaging
- MEGA Down Imaging
- Dual Spectrum CHIRP sonar
- XNT 9 HW MSI 150 T transducer included
- Internal GPS receiver
- Humminbird Basemap included
- AutoChart Live mapping
- Eight hours of built-in map recording
- Ethernet networking
- Built-in NMEA 2000 support
- Bluetooth connectivity
- Dual microSD card slots
- One-Boat Network compatible
- Compatible with MEGA Live
- Compatible with MEGA 360 Imaging
- Minn Kota i-Pilot Link compatible
- Talon and Raptor compatible
- Radar and optional AIS compatible
- LakeMaster and CoastMaster compatible
- Compatible with selected Navionics charts
- Sonar recording and screen capture
- Up to 2,750 waypoints
- Software upgradable
Specifications
| Specification | Details |
|---|---|
| Brand | Humminbird |
| Model | HELIX 7 MSI GPS G4N |
| Product Code | 411940-1 |
| UPC / GTIN | 0082324058172 |
| Display Size | 7 inches |
| Display Resolution | 1024 × 600 pixels |
| Display Type | 16-bit color TFT |
| Interface | Keypad |
| Standard Sonar | Dual Spectrum CHIRP |
| Side Imaging | MEGA Side Imaging |
| Down Imaging | MEGA Down Imaging |
| Included Transducer | XNT 9 HW MSI 150 T |
| Transducer Mount | Transom |
| CHIRP Narrow Mode | 180–240 kHz |
| CHIRP Wide Mode | 140–200 kHz |
| CHIRP Full Mode | 150–220 kHz |
| MEGA Imaging Frequency | 1075–1150 kHz |
| Standard Sonar Depth | Up to 1,200 ft |
| Optional Sonar Depth | Up to 3,500 ft with compatible 50 kHz transducer |
| MEGA Down Imaging Depth | Up to 75 ft |
| 455 kHz Down Imaging Depth | Up to 400 ft |
| MEGA Side Imaging Range | Up to 125 ft per side |
| 455 kHz Side Imaging Range | Up to 400 ft per side |
| Target Separation | 2.5 inches |
| GPS Receiver | Internal |
| GPS Chartplotting | Included |
| Waypoints | 2,750 |
| Routes | 47 |
| Tracks | 50 tracks with 20,000 points |
| Mapping | Humminbird Basemap and AutoChart Live |
| Memory Card Slots | Dual microSD |
| Ethernet | Supported |
| NMEA 2000 | Included |
| Wireless Connectivity | Bluetooth |
| One-Boat Network | Compatible |
| Power Input | 10.8–20 VDC |
| Power Draw | 800mA |
| Power Output RMS | 500W |
| Mounting | Gimbal; optional in-dash installation |
| Dimensions | 10.54 × 5.44 × 3.08 in |
| Weight | Approximately 2.4 lb |
| Warranty | One-year limited warranty |
What’s Included
- HELIX 7 MSI GPS G4N control head
- XNT 9 HW MSI 150 T transom-mount transducer
- Power cable
- Gimbal mounting bracket
- Mounting hardware
- Product documentation
