Humminbird APEX MSI+ Fish Finder/Chartplotter for SALE
$ 2,200.00
Brand: HumminbirdShop Humminbird APEX MSI+ Fish Finder/Chartplotter with Full HD touchscreen, MEGA SI+, MEGA DI+, CHIRP sonar, GPS mapping and XM 14 HW MSI T transducer.

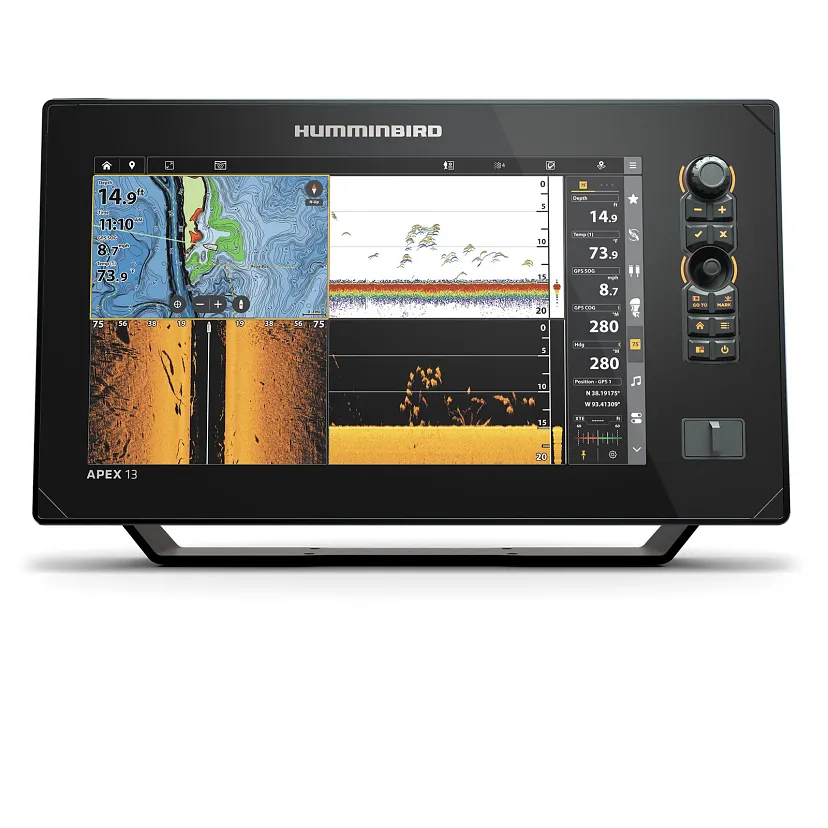

Humminbird APEX MSI+ Fish Finder/Chartplotter
The Humminbird APEX MSI+ Fish Finder/Chartplotter with Transducer delivers premium sonar performance, detailed navigation, and extensive marine-networking capabilities for serious freshwater and saltwater anglers.
Its sunlight-readable Full HD display provides crisp 1920 × 1080 resolution, while the Cross Touch interface allows convenient operation through the touchscreen or keypad. MEGA Side Imaging+ reveals fish and underwater structure up to 250 feet on each side of the boat, while MEGA Down Imaging+ provides detailed coverage to depths of 250 feet. Dual Spectrum CHIRP sonar produces clear fish arches, strong target separation, and accurate bottom definition.
The included XM 14 HW MSI T transducer supports MEGA Imaging+ and high-wide CHIRP sonar. A dedicated second sonar channel also supports compatible optional 2D CHIRP transducers up to 2kW for deep-water applications.
Internal GPS, Humminbird Basemap, AutoChart Live, and the included LakeMaster/CoastMaster VX map card provide powerful navigation and mapping tools. Dual Ethernet, HDMI input/output, Wi-Fi, Bluetooth, NMEA 2000, and One-Boat Network compatibility make APEX an excellent centerpiece for an advanced marine-electronics system.
Key Features
- Full HD 1920 × 1080 color display
- Cross Touch touchscreen and keypad interface
- Sunlight-readable glass-bonded screen
- MEGA Side Imaging+
- MEGA Down Imaging+
- Dual Spectrum CHIRP sonar
- Dual-channel CHIRP sonar capability
- XM 14 HW MSI T transom transducer included
- Internal GPS and Humminbird Basemap
- LakeMaster/CoastMaster VX map card included
- Eight hours of built-in AutoChart Live recording
- Dual microSD card slots
- Dual Ethernet connections
- HDMI input and output
- Wi-Fi, Bluetooth and NMEA 2000
- MEGA Live 2 and MEGA 360 compatible
- Minn Kota and One-Boat Network integration
- Radar, AIS and autopilot compatible
- Two-year limited warranty
Available Models
| Model | Display | Product Code/MPN | UPC/GTIN |
|---|---|---|---|
| APEX 13 MSI+ | 13.3 inches | 411470-1VX | 0082324061639 |
| APEX 16 MSI+ | 15.6 inches | 411500-1VX | 0082324061615 |
| APEX 19 MSI+ | 18.5 inches | 411240-1VX | 0082324061653 |
Sonar and Navigation Specifications
| Specification | Details |
|---|---|
| Display resolution | 1920 × 1080 pixels |
| Standard sonar | Dual Spectrum CHIRP, MEGA SI+, MEGA DI+ |
| Included transducer | XM 14 HW MSI T |
| Transducer location | Transom mount |
| Standard sonar depth | Up to 1,200 ft |
| Optional Airmar CHIRP depth | Up to 3,500 ft |
| MEGA Down Imaging depth | Up to 250 ft |
| 455 kHz Down Imaging depth | Up to 400 ft |
| MEGA Side Imaging range | 250 ft per side/500 ft total |
| 455 kHz Side Imaging range | 400 ft per side/800 ft total |
| Target separation | 2.5 inches |
| GPS receiver | Internal |
| Waypoints | 10,000 |
| Routes | 50 |
| Tracks/track points | 50/20,000 |
| Memory card slots | Dual microSD |
| Power input | 10.8–20 VDC |
| Sonar power output | 1,000W RMS/8,000W peak-to-peak |
| Networking | Dual Ethernet, NMEA 2000, Wi-Fi, Bluetooth |
| Video connectivity | HDMI input and output |
What’s Included
- Humminbird APEX control head
- XM 14 HW MSI T transom-mount transducer
- LakeMaster/CoastMaster U.S. and Canada VX map card
- Gimbal mounting bracket and hardware
- Front-mount in-dash installation hardware
- 10-foot power cable
- Premium silicone screen cover
