Humminbird MEGA 360 Imaging Transducer Kit for Minn Kota Trolling Motors -Universal for SALE
$ 1.155,00
Brand: HumminbirdBuy the Humminbird MEGA 360 Imaging Transducer Kit for Minn Kota Trolling Motors -Universal with 360-degree sonar coverage, independent aluminum mount and up to 250-ft viewing diameter.
Humminbird MEGA 360 Imaging Transducer Kit for Minn Kota Trolling Motors -Universal
Explore the water in every direction with the Humminbird MEGA 360 Imaging Transducer Kit – Universal. Using high-frequency MEGA Imaging sonar, this advanced transducer displays picture-like views of fish, structure, vegetation, and bottom contours around your boat.
The system scans up to 125 feet in every direction, creating a viewing circle up to 250 feet in diameter. Its adjustable sweep area can be narrowed from a complete 360-degree view to a focused 10-degree section, helping you concentrate on productive water without moving the boat.

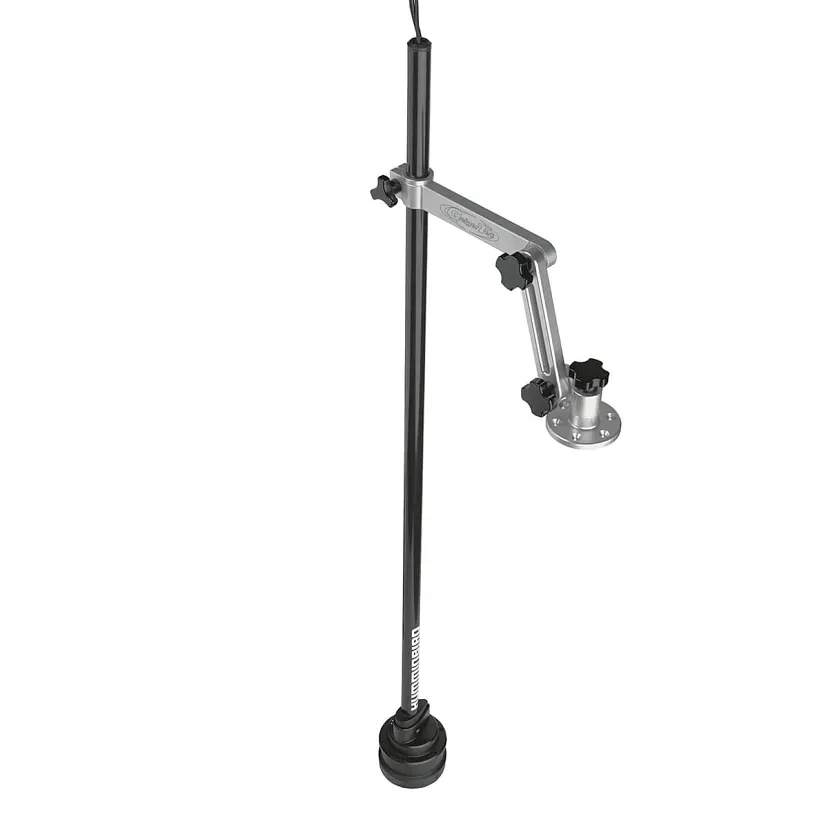

Unlike a transducer that rotates with the trolling motor, the MEGA 360 Universal uses an independent GeigerTec mount constructed from CNC-machined billet aluminum. This maintains a consistent sonar orientation while steering, fishing in wind or waves, or using Minn Kota Spot-Lock.
Choose between MEGA 360 Imaging and MEGA Side Imaging modes. Anglers can customize sweep speed, viewing area, sonar zoom, display information, and color palette. Range rings show the approximate distance to targets, while compatible chartplotters allow waypoints to be marked directly from the sonar display.
The universal mounting system installs on virtually any suitable boat, with or without a trolling motor. A compatible Humminbird control head is required.
Key Features
- Detailed 360-degree underwater imaging
- Scans up to 125 ft in every direction
- Up to 250-ft total viewing diameter
- MEGA 360 and MEGA Side Imaging modes
- Adjustable sweep area from 10° to 360°
- Six selectable beam-rotation speeds
- Up to 10× sonar zoom
- Independent mounting maintains image orientation
- Adjustable GeigerTec universal mount
- CNC-machined billet-aluminum construction
- Customizable display and color palettes
- Range rings for target-distance estimation
- On-screen waypoint marking
- Freshwater and saltwater compatible
- Compatible with selected Humminbird displays
- Two-year limited warranty
Compatibility
Compatible with:
- All Humminbird XPLORE models
- All Humminbird APEX models
- Humminbird SOLIX G2 and G3 models
- Selected HELIX 8, 9, 10, 12 and 15 MEGA Imaging network models
Important: Fish finder/chartplotter is not included. Confirm compatibility with the exact Humminbird model before ordering.
Specifications
| Specification | Details |
|---|---|
| Model | MEGA 360 Imaging – Universal |
| Product code/MPN | 411390-1 |
| UPC/GTIN-13 | 0082324055355 |
| Sonar modes | MEGA 360 and MEGA Side Imaging |
| Maximum scanning range | Up to 125 ft from the transducer |
| Total viewing diameter | Up to 250 ft |
| Adjustable sweep area | 10°–360° |
| Maximum zoom | 10× |
| Shaft length | 50 inches |
| Mounting | Independent universal boat mount |
| Bracket material | CNC-machined billet aluminum |
| Weight | 16 lb |
| Warranty | Two years |
What’s Included
- MEGA 360 Imaging transducer
- Attached power and transducer cables
- Adjustable universal aluminum mounting bracket
- Shaft depth-retaining ring
- 10-foot SOLIX transducer extension cable
- 10-foot HELIX transducer adapter cable
- 10-foot MEGA 360 power cable
