Humminbird HELIX 5 CHIRP GPS G3 PT Fish Finder/Chartplotter for SALE
$ 357,50
Brand: HumminbirdBuy the Humminbird HELIX 5 CHIRP GPS G3 PT Fish Finder/Chartplotter with GPS, AutoChart Live, transducer, carrying case, battery and charger.

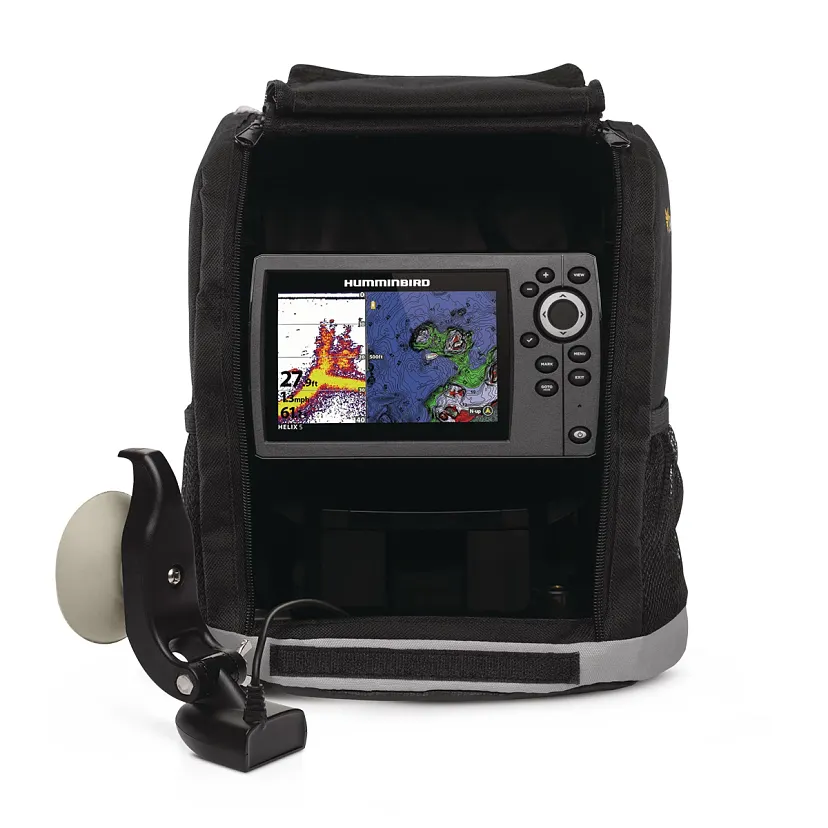

Humminbird HELIX 5 CHIRP GPS G3 PT Fish Finder/Chartplotter
The Humminbird HELIX 5 CHIRP GPS G3 PT Fish Finder/Chartplotter gives anglers reliable sonar and navigation in a convenient portable system. It is ideal for small boats, rental boats, kayaks, and other applications where permanent installation is impractical.
Dual Spectrum CHIRP sonar provides detailed fish arches, clear bottom definition, and excellent target separation. Select Wide Mode for greater underwater coverage or Narrow Mode when you need maximum detail. The included XNT 9 HW T transducer uses a suction-cup mount for quick installation and removal.
Its 5-inch color display offers an 800 × 480-pixel resolution and dependable keypad operation in wet or challenging conditions. Internal GPS and Humminbird Basemap help you navigate confidently, mark productive fishing locations, and follow saved tracks. The unit stores up to 2,750 waypoints and supports optional LakeMaster, CoastMaster, and compatible Navionics charts.
AutoChart Live allows you to create personalized fishing maps showing depth contours, bottom hardness, and vegetation. A portable shuttle, protective carrying case, rechargeable 12V battery, and charger make the complete system easy to transport between fishing locations.
Please note: This model provides traditional Dual Spectrum CHIRP sonar and does not include Down Imaging or Side Imaging.
Key Features
- Complete portable fish-finder package
- 5-inch color TFT display
- 800 × 480-pixel resolution
- Dual Spectrum CHIRP 2D sonar
- Wide, Narrow, and Full CHIRP modes
- XNT 9 HW T transducer included
- Portable suction-cup transducer mount
- Internal GPS receiver
- Humminbird Basemap included
- AutoChart Live custom mapping
- Stores up to 2,750 waypoints
- Compatible with LakeMaster and CoastMaster
- Compatible with supported Navionics charts
- Single microSD card slot
- Keypad control and X-Press menu
- 12V 7Ah AGM battery and charger included
- Protective portable carrying case
- One-year limited warranty
Specifications
| Specification | Details |
|---|---|
| Model | HELIX 5 CHIRP GPS G3 PT |
| Product code/MPN | 411680-1 |
| UPC/GTIN-13 | 0082324056314 |
| Display size | 5 inches |
| Display resolution | 800 × 480 pixels |
| Display type | Color TFT |
| Interface | Keypad control |
| Standard sonar | Dual Spectrum CHIRP |
| Included transducer | XNT 9 HW T |
| Transducer mounting | Portable suction cup |
| CHIRP Narrow Mode | 180–240 kHz |
| CHIRP Wide Mode | 140–200 kHz |
| CHIRP Full Mode | 150–220 kHz |
| Standard sonar depth | Up to 1,200 ft |
| Optional 50 kHz depth | Up to 3,000 ft |
| Target separation | 2.5 inches |
| GPS receiver | Internal |
| GPS chartplotting | Included |
| GPS trackplotting | Included |
| Waypoints | 2,750 |
| Routes | 45 |
| Tracks/track points | 50/20,000 |
| Memory card slot | Single microSD |
| Power output | 500W RMS/4,000W peak-to-peak |
| Power draw | 615 mA |
| Power input | 10.8–20 VDC |
| Battery | 12V 7Ah AGM |
| Standard mounting | Portable |
| Warranty | One year |
What’s Included
- HELIX 5 CHIRP GPS G3 control head
- XNT 9 HW T transducer
- Portable suction-cup transducer mount
- Portable shuttle
- Soft-sided protective carrying case
- 12V 7Ah AGM battery
- Battery charger
- Power cable
- Gimbal mounting bracket
- Mounting hardware
