Humminbird XPLORE 10 CMSI+ CHIRP MEGA SI Fish Finder/Chartplotter for SALE
$ 1.648,90
Brand: HumminbirdBuy the Humminbird XPLORE 10 CMSI+ CHIRP MEGA SI Fish Finder/Chartplotter with a 10.1-inch touchscreen, MEGA SI+, MEGA DI+, CHIRP sonar, GPS mapping and XM 14 HW CMSI T transducer.

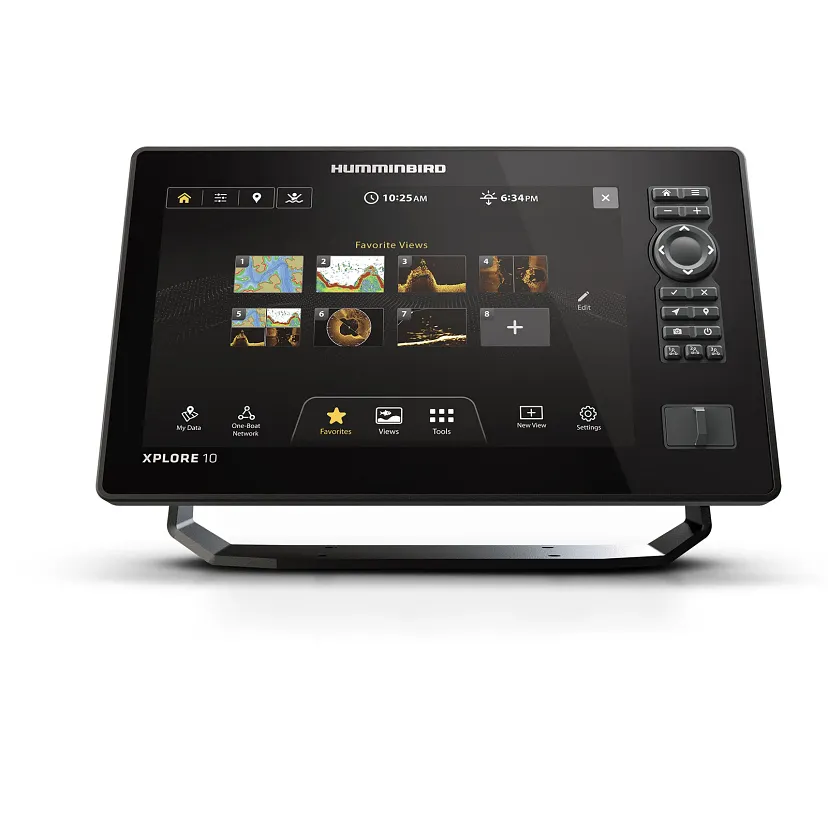

Humminbird XPLORE 10 CMSI+ CHIRP MEGA SI Fish Finder/Chartplotter
The Humminbird XPLORE 10 CMSI+ CHIRP MEGA SI Fish Finder/Chartplotter combines powerful sonar, advanced mapping, and intuitive control in one high-performance marine electronics system. Its bright 10.1-inch color display delivers a detailed 1280 × 800 resolution and can be operated using either the responsive touchscreen or physical keypad.
MEGA Side Imaging+ provides clear views of fish and underwater structure up to 200 feet on each side of the boat, while MEGA Down Imaging+ reveals detailed imagery directly below. Dual Spectrum CHIRP sonar produces well-defined fish arches, excellent target separation, and reliable bottom detail.
The internal GPS and included LakeMaster/CoastMaster VX map card provide advanced navigation tools for compatible U.S. and Canadian waters. AutoChart Live lets anglers create personalized maps showing depth contours, bottom hardness, and vegetation.
Built-in Ethernet, Wi-Fi, Bluetooth, and NMEA 2000 connectivity make the XPLORE 10 ready for a complete marine network. It is also compatible with MEGA Live 2, MEGA 360 Imaging, Minn Kota i-Pilot Link, Talon and Raptor shallow-water anchors, radar, and the Humminbird One-Boat Network. The CMSI+ package includes the XM 14 HW CMSI T transom-mount transducer.
Key Features
- 10.1-inch color TFT Cross Touch display
- 1280 × 800-pixel screen resolution
- MEGA Side Imaging+ with up to 400-foot total coverage
- MEGA Down Imaging+ with depth coverage up to 200 feet
- Dual Spectrum CHIRP sonar
- Internal GPS and Humminbird Basemap
- Included LakeMaster/CoastMaster VX map card
- AutoChart Live custom mapping
- 10,000-waypoint capacity
- Dual microSD card slots
- Ethernet, Wi-Fi, Bluetooth and NMEA 2000
- MEGA Live 2 and MEGA 360 compatible
- One-Boat Network and Minn Kota integration
- Touchscreen and keypad controls
- Three-year limited warranty with registration
Specifications
| Specification | Details |
|---|---|
| Model | XPLORE 10 CMSI+ |
| Product code/MPN | 412010-1 |
| UPC/GTIN-13 | 0082324058677 |
| Display size | 10.1 inches |
| Display resolution | 1280 × 800 pixels |
| Display type | Color TFT |
| Standard sonar | Dual Spectrum CHIRP, MEGA SI+, MEGA DI+ |
| Included transducer | XM 14 HW CMSI T |
| Transducer mounting | Transom |
| Standard sonar depth | Up to 1,200 ft |
| MEGA Down Imaging depth | Up to 200 ft |
| 455 kHz Down Imaging depth | Up to 400 ft |
| MEGA Side Imaging range | 200 ft per side |
| 455 kHz Side Imaging range | 400 ft per side |
| Target separation | 2.5 inches |
| GPS | Internal |
| Waypoints | 10,000 |
| Routes | 50 |
| Tracks/track points | 50/20,000 |
| Memory cards | Dual microSD |
| Connectivity | Ethernet, Wi-Fi, Bluetooth, NMEA 2000 |
| Power input | 10.8–20 VDC |
| Power draw | 2.2 A |
| Dimensions | 12.1 × 7.25 × 3.3 in |
| Weight | 4 lb 12 oz |
| Standard mount | Gimbal |
| Warranty | 3 years with registration |
What’s in the Box
- Humminbird XPLORE 10 control head
- XM 14 HW CMSI T transom-mount transducer
- LakeMaster/CoastMaster map card
- Gimbal mounting bracket and hardware
- 10-foot power cable
- Premium silicone unit cover
