Briggs & Stratton 130G52-0182-F1 Horizontal Engine with 6:1 Gear Reduction for SALE
$ 321,20
Brand: Briggs & Stratton EnginesShop the Briggs & Stratton 130G52-0182-F1 Horizontal Engine with 6:1 Gear Reduction with 9.50 ft-lb torque and integrated 6:1 gear reduction.

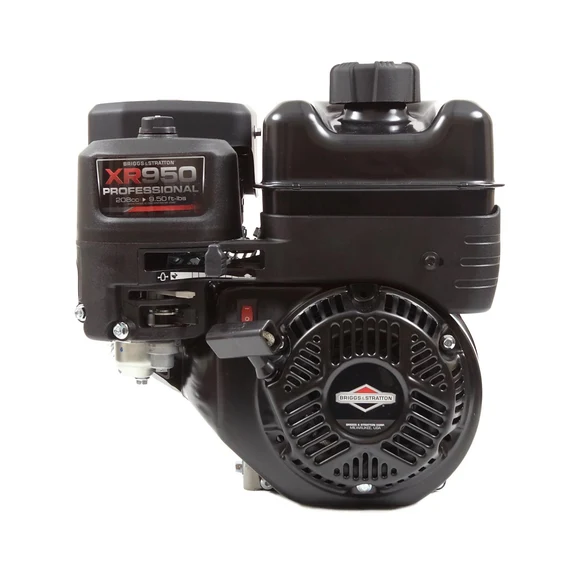

Briggs & Stratton 130G52-0182-F1 Horizontal Engine with 6:1 Gear Reduction
The Briggs & Stratton 130G52-0182-F1 XR950 Horizontal Engine provides dependable low-speed power for compatible tillers, pumps, mixers, conveyors, and other utility equipment. Its 208cc single-cylinder, four-stroke OHV design produces 6.5 HP and 9.50 ft-lb of gross torque.
Key Features
- Genuine Briggs & Stratton XR950 engine
- 208cc single-cylinder, four-stroke design
- 6.5 HP and 9.50 ft-lb gross torque
- Integrated 6:1 gear reduction
- Approximately 550 RPM maximum output speed
- Counterclockwise gearbox output
- Horizontal keyed output shaft
- Dura-Bore® cast-iron cylinder sleeve
- Dual-Clean™ air-filtration system
- Magnetron® electronic ignition
- Recoil starting system
- Float-feed carburetor
- Muffler and fuel tank included
- Replaces 12S452-0049-F8
Specifications
| Specification | Details |
|---|---|
| Brand | Briggs & Stratton |
| Model/MPN | 130G52-0182-F1 |
| Series | XR950 Professional Series |
| Engine type | Single-cylinder, four-stroke OHV |
| Shaft orientation | Horizontal |
| Displacement | 208cc |
| Gross horsepower | 6.5 HP |
| Gross torque | 9.50 ft-lb |
| Gear-reduction ratio | 6:1 |
| Maximum engine speed | 3,300 RPM |
| Approximate maximum output speed | 550 RPM |
| Gearbox output rotation | Counterclockwise |
| Output-shaft size | Approximately 3/4″ × 2″ |
| Output-shaft end | 5/16″-24 drilled and tapped |
| Keyway | 3/16″ |
| Starting system | Recoil start |
| Ignition | Magnetron® electronic |
| Oil capacity | 20 fl oz |
| Fuel-tank capacity | 3.2 qt |
| Fuel type | Gasoline |
| Replacement for | 12S452-0049-F8 |
