Honda GX160 QC9 Horizontal Engine with Cyclonic Air Filter for SALE
$ 353,10
Brand: Honda EnginesBuy the Honda GX160 QC9 Horizontal Engine with Cyclonic Air Filter with 163cc OHV power, 4.8 HP, cyclonic air filtration, Oil Alert and a 3/4-inch keyed shaft.

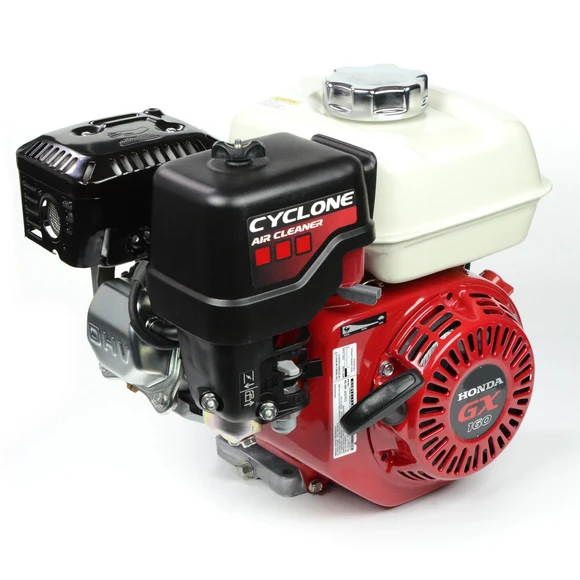

Honda GX160 QC9 Horizontal Engine with Cyclonic Air Filter
The Honda GX160 QC9 Horizontal Engine with Cyclonic Air Filter delivers commercial-grade performance and enhanced engine protection in dusty working environments. Its 163cc air-cooled, four-stroke OHV design produces 4.8 net horsepower at 3,600 rpm and 7.6 lb-ft of torque at 2,500 rpm.
Key Features
- Commercial-grade 163cc Honda OHV engine
- 4.8 HP net power output
- Compact cyclonic air-cleaning system
- Designed for dusty operating environments
- 3/4″ × 2-7/16″ straight keyed shaft
- Heavy-duty recoil starter
- Honda Oil Alert low-oil protection
- Cast-iron cylinder sleeve
- Remote-cable throttle capability
- Fuel-efficient, low-vibration operation
Specifications
| Specification | Details |
|---|---|
| Engine model | Honda GX160 QC9 |
| Manufacturer part number | GX160UT2QC9 |
| Engine type | Air-cooled, four-stroke OHV |
| Cylinders | Single cylinder |
| Displacement | 163cc |
| Net power | 4.8 HP / 3.6 kW at 3,600 rpm |
| Net torque | 7.6 lb-ft / 10.3 Nm at 2,500 rpm |
| Bore × stroke | 68 × 45 mm |
| Compression ratio | 9.0:1 |
| Shaft orientation | Horizontal |
| Crankshaft type | Q-type straight keyed shaft |
| Shaft diameter | 3/4 inch |
| Shaft length | 2-7/16 inches |
| Keyway | 3/16 inch |
| Shaft-end thread | 5/16-24 |
| Air cleaner | Compact cyclone type |
| Starting system | Recoil |
| Ignition | Transistorized magneto |
| Governor | Centrifugal mechanical |
| Lubrication | Splash |
| Oil capacity | 0.61 US qt / 0.58 L |
| Fuel capacity | 3.3 US qt / 3.1 L |
| PTO rotation | Counterclockwise from PTO side |
| Low-oil protection | Honda Oil Alert |
