Honda GX160 HX2 Horizontal Engine with 6:1 Gear Reduction for SALE
$ 379,50
Brand: Honda EnginesBuy the Honda GX160 HX2 Horizontal Engine with 6:1 Gear Reduction with 163cc OHV power, 4.8 HP, Oil Alert, recoil start and integrated 6:1 gear reduction.

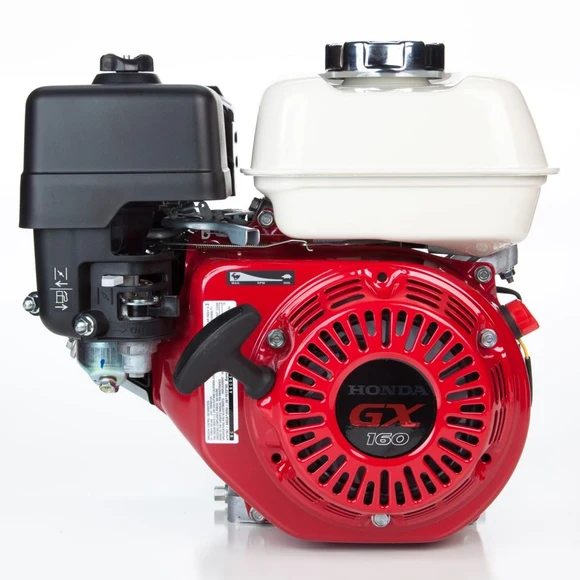

Honda GX160 HX2 Horizontal Engine with 6:1 Gear Reduction
The Honda GX160 HX2 Horizontal Engine with 6:1 Gear Reduction provides commercial-grade power for equipment requiring high torque at a substantially lower output speed. Its 163cc air-cooled, four-stroke OHV engine produces 4.8 net horsepower at 3,600 rpm and 7.6 lb-ft of torque at 2,500 rpm.
Key Features
- Commercial-grade 163cc Honda OHV engine
- 4.8 HP net power output
- Integrated 6:1 reduction gearbox
- Approximately 600-rpm output at rated speed
- Direct-drive system without a clutch
- 3/4″ keyed output shaft
- Heavy-duty recoil starter
- Honda Oil Alert protection
- Cast-iron cylinder sleeve
- Dual-element air cleaner
Specifications
| Specification | Details |
|---|---|
| Engine model | Honda GX160 HX2 |
| Manufacturer part number | GX160UT2HX2 |
| Engine type | Air-cooled, four-stroke OHV |
| Cylinders | Single cylinder |
| Displacement | 163cc |
| Net power | 4.8 HP / 3.6 kW at 3,600 rpm |
| Net torque | 7.6 lb-ft / 10.3 Nm at 2,500 rpm |
| Bore × stroke | 68 × 45 mm |
| Compression ratio | 9.0:1 |
| Shaft orientation | Horizontal |
| PTO type | H-type reduction shaft |
| Reduction ratio | 6:1 |
| PTO output speed | Approximately 600 rpm at 3,600 engine rpm |
| Clutch | No clutch |
| Shaft diameter | 3/4 inch |
| Shaft length | Approximately 1-31/32 inches |
| Shaft type | Straight keyed |
| Starting system | Recoil |
| Ignition | Transistorized magneto |
| Carburetor | Butterfly type |
| Governor | Centrifugal mechanical |
| Air cleaner | Dual element |
| Lubrication | Splash |
| Oil capacity | 0.61 US qt / 0.58 L |
| Fuel capacity | 3.3 US qt / 3.1 L |
| Recommended fuel | Unleaded gasoline, 86 octane or higher |
| Low-oil protection | Honda Oil Alert |
