Honda GX200 QC9 Horizontal Engine with Cyclonic Air Filter, Replaces GX200 QXC9 for SALE
$ 372,90
Brand: Honda EnginesBuy the Honda GX200 QC9 Horizontal Engine with Cyclonic Air Filter, Replaces GX200 QXC9with 196cc OHV power, 5.8 HP, cyclonic air filtration and a 3/4-inch shaft. Replaces QXC9.

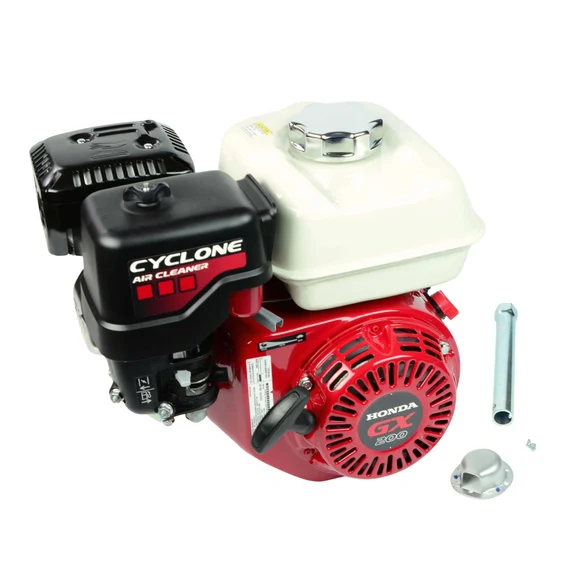

Honda GX200 QC9 Horizontal Engine with Cyclonic Air Filter, Replaces GX200 QXC9
The Honda GX200 QC9 Horizontal Engine with Cyclonic Air Filter delivers commercial-grade performance with enhanced protection for dusty and demanding work environments. It directly replaces the Honda GX200 QXC9 when the existing shaft, mounting and control specifications match.
Key Features
- Direct replacement for Honda GX200 QXC9
- Commercial-grade 196cc Honda OHV engine
- 5.8 HP net power output
- Compact cyclonic air-cleaning system
- Designed for dusty operating conditions
- 3/4″ × 2-7/16″ keyed crankshaft
- Heavy-duty recoil starter
- Honda Oil Alert protection
- Cast-iron cylinder sleeve
- Fuel-efficient, low-vibration operation
Specifications
| Specification | Details |
|---|---|
| Engine model | Honda GX200 QC9 |
| Manufacturer part number | GX200UT2QC9 |
| Replaces | Honda GX200 QXC9 |
| Engine type | Air-cooled, four-stroke OHV |
| Cylinders | Single cylinder |
| Displacement | 196cc |
| Net power | 5.8 HP / 4.3 kW at 3,600 rpm |
| Net torque | 9.1 lb-ft / 12.4 Nm at 2,500 rpm |
| Bore × stroke | 68 × 54 mm |
| Compression ratio | 8.5:1 |
| Shaft orientation | Horizontal |
| Shaft type | Q-type straight keyed shaft |
| Shaft diameter | 3/4 inch |
| Shaft length | 2-7/16 inches |
| Keyway | 3/16 inch |
| Shaft-end thread | 5/16-24 |
| Air cleaner | Compact cyclone type |
| Starting system | Recoil |
| Ignition | Transistorized magneto |
| Carburetor | Butterfly type |
| Governor | Mechanical |
| Lubrication | Splash |
| Oil capacity | 0.63 US qt / 0.60 L |
| Fuel capacity | 3.3 US qt / 3.1 L |
| PTO rotation | Counterclockwise from PTO side |
| Low-oil protection | Honda Oil Alert |
