Honda GX100 KRMB Horizontal Engine for SALE
$ 356,40
Brand: Honda EnginesBuy the Honda GX100 KRMB Horizontal Engine with 98.5cc power, recoil start and M12 threaded PTO for compatible tamping rammers.

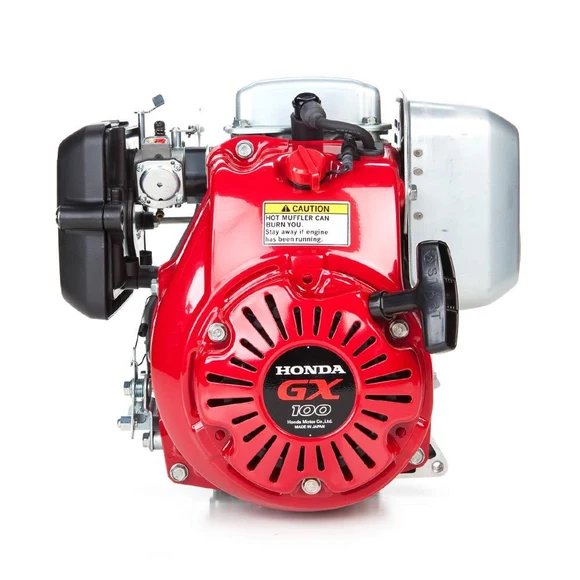

Honda GX100 KRMB Horizontal Engine
The Honda GX100 KRMB Horizontal Engine is a compact commercial engine engineered specifically for high-vibration compaction equipment, including jumping jacks and tamping rammers. Its 98.5cc air-cooled, four-stroke OHC design delivers 2.8 net horsepower and 4.2 lb-ft of torque at 3,600 rpm.
Key Features
- Commercial-grade 98.5cc Honda OHC engine
- 2.8 HP net power output
- Designed for tamping rammers and jumping jacks
- Specialized M12 × 1.25 × 77mm threaded PTO
- Rammer-specific floatless carburetor
- Heavy-duty recoil starter
- Automatic mechanical decompression
- Dual-element air cleaner
- Cast-iron cylinder sleeve
- Compact, vibration-resistant construction
Specifications
| Specification | Details |
|---|---|
| Engine model | Honda GX100 KRMB |
| Manufacturer part number | GX100RTKRMB |
| Engine type | Air-cooled, four-stroke OHC |
| Cylinders | Single cylinder |
| Displacement | 98.5cc |
| Net power | 2.8 HP / 2.1 kW at 3,600 rpm |
| Net torque | 4.2 lb-ft / 5.7 Nm at 3,600 rpm |
| Bore × stroke | 56 × 40 mm |
| Compression ratio | 8.5:1 |
| Shaft orientation | Horizontal |
| PTO type | K-type rammer shaft |
| Crankshaft dimensions | M12 × 1.25 × 77mm |
| PTO rotation | Counterclockwise from PTO side |
| Starting system | Recoil |
| Ignition | Transistorized magneto |
| Carburetor | Rammer-specific floatless type |
| Governor | Centrifugal mechanical |
| Air cleaner | Dual element |
| Lubrication | Splash |
| Oil capacity | 0.42 US qt / 0.40 L |
| Fuel tank | Not included |
| Oil Alert | Not included |
| Approximate weight | 29 lb |
| Maximum speed | 3,600 rpm |
