Honda GX50 S3 Mini 4-Stroke Horizontal Engine for SALE
$ 258,50
Brand: Honda EnginesBuy the Honda GX50 S3 Mini 4-Stroke Horizontal Engine with 47.9cc displacement, 2.0 HP output, recoil start, and a clutch-ready design.

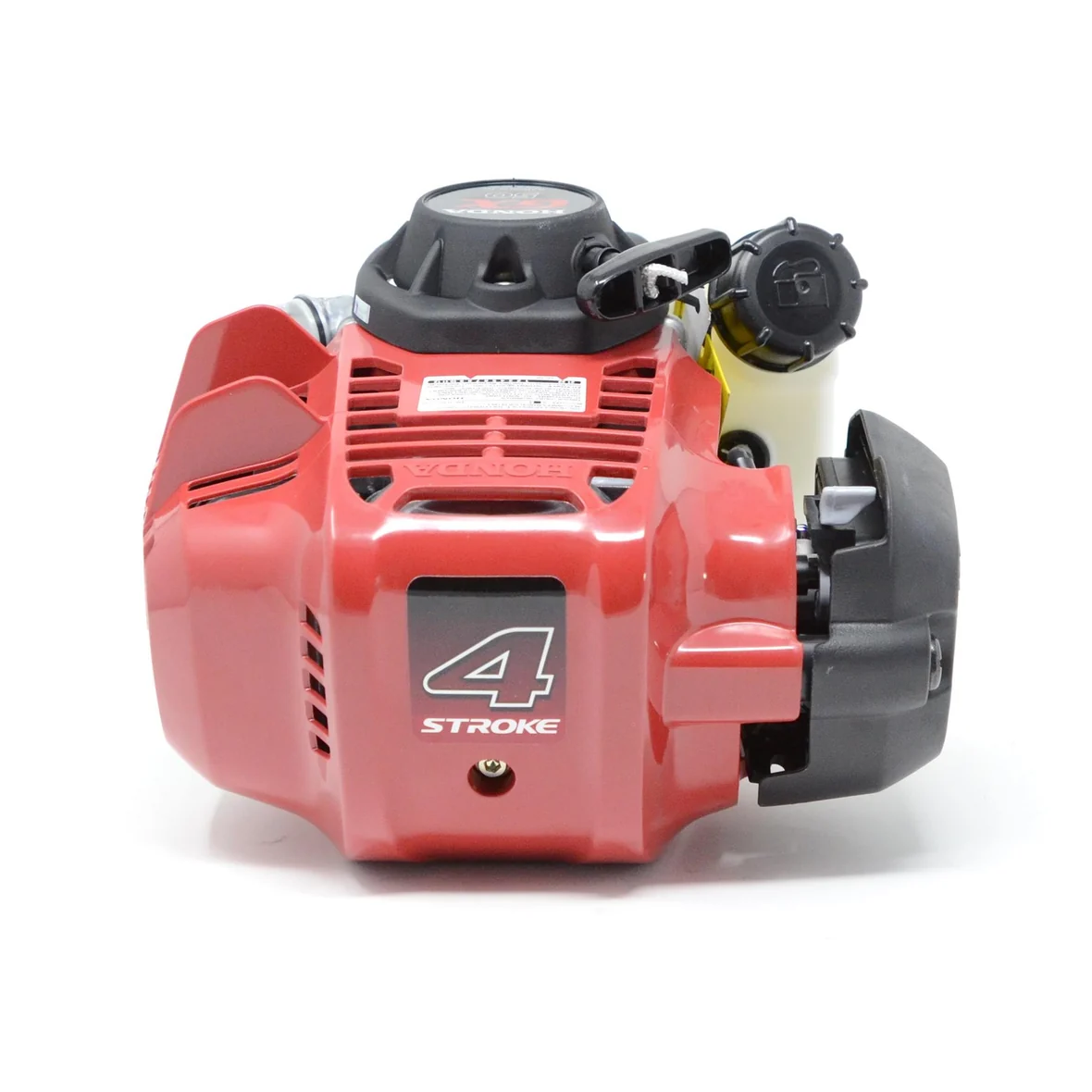

Honda GX50 S3 Mini 4-Stroke Horizontal Engine
The Honda GX50 S3 Mini 4-Stroke Horizontal Engine combines commercial-grade performance with a compact, lightweight design. Its 47.9cc air-cooled, single-cylinder OHC engine delivers 2.0 HP at 7,000 rpm and 2.2 Nm of torque at 5,000 rpm, making it suitable for demanding lawn and garden equipment, cultivators, construction machinery, agricultural tools, pumps, and other portable applications.
Key Specifications
| Specification | Details |
|---|---|
| Model | GX50NTS3 / GX50 S3 |
| Engine type | Air-cooled four-stroke, single-cylinder OHC |
| Configuration | Horizontal, clutch-ready |
| Displacement | 47.9cc |
| Bore × stroke | 43 × 33 mm |
| Net power | 2.0 HP (1.47 kW) at 7,000 rpm |
| Maximum net torque | 1.6 lb-ft (2.2 Nm) at 5,000 rpm |
| Compression ratio | 8.0:1 |
| Starting system | Recoil starter |
| Ignition system | Transistorized magneto |
| Carburetor | Diaphragm type with overflow return |
| Fuel | Unleaded gasoline, 86 octane or higher |
| Fuel-tank capacity | 0.67 US qt / 0.63 liter |
| Oil capacity | 4.4 US oz / 130cc |
| Lubrication | Crankcase pressure-driven rotary-slinger system |
| Air cleaner | Dry-paper type |
| PTO rotation | Counterclockwise from PTO side |
| Operating positions | Full 360° operation |
| Dimensions | 199 × 260 × 263 mm |
| Dry weight | 9.1 lb / 4.1 kg |
| Low-oil shutdown | No |
| Muffler | Included |
