Honda GX200 QG2 Horizontal Engine with 7 Amp Charge Coil for SALE
$ 419,10
Brand: Honda EnginesBuy the Honda GX200 QG2 Horizontal Engine with 7 Amp Charge Coil with 196cc OHV power, 5.8 HP, 7-amp charge coil, recoil start and Oil Alert protection.

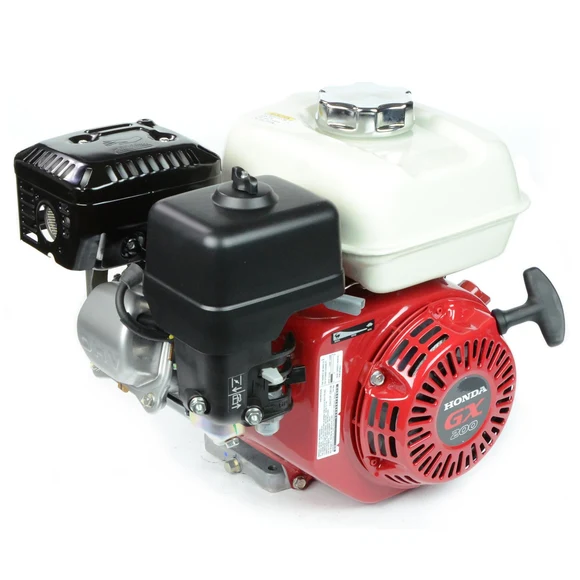

Honda GX200 QG2 Horizontal Engine with 7 Amp Charge Coil
The Honda GX200 QG2 Horizontal Engine with 7 Amp Charge Coil delivers commercial-grade performance for equipment that requires dependable mechanical power and an auxiliary electrical charging system. Its 196cc air-cooled, four-stroke OHV design produces 5.8 net horsepower and 12.4 Nm of torque while providing efficient fuel consumption, quiet operation, and easy starting.
Key Features
- Commercial-grade 196cc Honda GX engine
- 5.8 net HP at 3,600 rpm
- 7-amp electrical charging system
- 3/4 × 2-7/16-inch Q-type crankshaft
- Recoil starter with automatic decompression
- Honda Oil Alert low-oil shutdown
- Dual-element air-cleaning system
- Cast-iron cylinder sleeve
- Ball-bearing-supported crankshaft
- Mechanical governor
- Fuel tank and muffler included
Specifications
| Specification | Details |
|---|---|
| Model | Honda GX200 QG2 |
| Manufacturer Part Number | GX200UT2QG2 |
| Engine Type | Air-cooled, four-stroke OHV |
| Cylinder Configuration | Single cylinder |
| Displacement | 196cc |
| Bore × Stroke | 68 × 54 mm |
| Net Power | 5.8 HP / 4.3 kW at 3,600 rpm |
| Net Torque | 9.1 lb-ft / 12.4 Nm at 2,500 rpm |
| Compression Ratio | 8.5:1 |
| Charge System | 7 amp |
| Starting System | Recoil |
| Crankshaft Type | Q-type, keyed |
| Shaft Diameter | 3/4 in |
| Shaft Length | 2-7/16 in |
| Shaft Keyway | Approximately 3/16 in |
| PTO Rotation | Counterclockwise |
| Ignition System | Transistorized magneto |
| Governor | Mechanical |
| Lubrication | Splash |
| Air Cleaner | Dual element |
| Fuel Tank Capacity | 3.3 US qt / 3.1 L |
| Oil Capacity | 0.63 US qt / 0.60 L |
| Low-Oil Protection | Honda Oil Alert |
| Muffler | Included |
