Honda GX120 QX2 Horizontal Engine for SALE
$ 283,80
Brand: Honda EnginesBuy the Honda GX120 QX2 horizontal engine with 122cc displacement, 3.2 net HP, recoil start, Oil Alert, and a 3/4-inch keyed shaft.

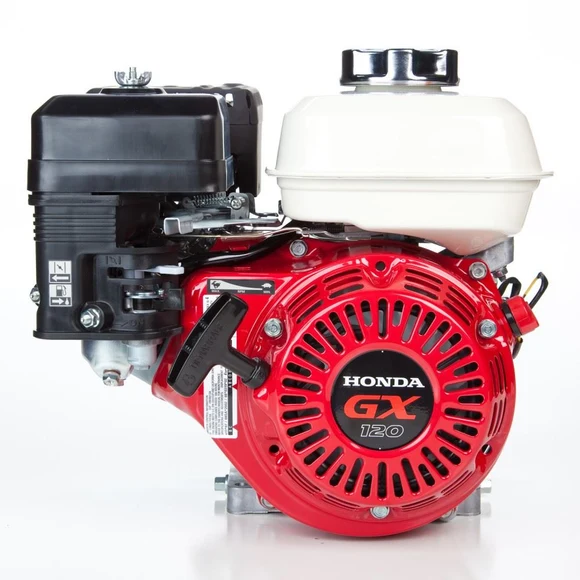

Honda GX120 QX2 Horizontal Engine
The Honda GX120 QX2 Horizontal Engine delivers compact, commercial-grade power for construction, landscaping, agricultural, and industrial equipment. Its air-cooled 122cc four-stroke OHV design produces 3.2 net HP at 3,600 rpm and 5.5 lb-ft of torque at 2,500 rpm. It is an excellent power source for pumps, generators, tillers, pressure washers, compressors, and other general-purpose machinery.
Key Specifications
| Specification | Details |
|---|---|
| Brand | Honda |
| Model | GX120 QX2 |
| Manufacturer model | GX120UT3QX2 |
| Engine type | Air-cooled, four-stroke, single-cylinder OHV |
| Shaft orientation | Horizontal |
| Crankshaft type | Q-type straight shaft |
| Shaft dimensions | 3/4″ diameter × 2-7/16″ long |
| Keyway | 3/16″ |
| End tap | 5/16″-24 UNF |
| Displacement | 122cc |
| Bore × stroke | 60 × 43.5 mm |
| Net power | 3.2 HP (2.4 kW) at 3,600 rpm |
| Maximum net torque | 5.5 lb-ft (7.3 Nm) at 2,500 rpm |
| Compression ratio | 8.3:1 |
| Starting system | Heavy-duty recoil starter |
| Ignition | Transistorized magneto |
| Carburetor | Butterfly-float type |
| Governor | Centrifugal mechanical |
| Lubrication | Splash |
| Oil capacity | 0.59 US qt / 0.56 liter |
| Low-oil protection | Oil Alert with automatic shutdown |
| Air cleaner | Dual-element |
| Fuel | Unleaded gasoline, 86 octane or higher |
| Fuel-tank capacity | 2.1 US qt / 2.0 liters |
| PTO rotation | Counterclockwise from PTO side |
| Muffler | Included |
| Dimensions | Approximately 297 × 346 × 329 mm |
| Dry weight | Approximately 28.9 lb / 13.2 kg |
| EPA compliant | Yes |
| CARB approved | No for this specific configuration |
