Honda GX120 QXS2 Horizontal Engine for SALE
$ 326,70
Brand: Honda EnginesBuy the Honda GX120 QXS2 horizontal engine with 122cc displacement, 3.2 net HP, 50W lamp coil, Oil Alert, and a 3/4-inch keyed shaft.

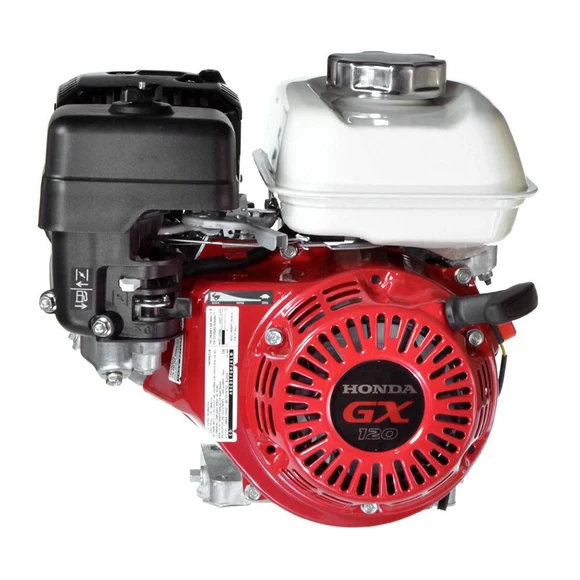

Honda GX120 QXS2 Horizontal Engine
The Honda GX120 QXS2 Horizontal Engine is a specialized commercial-grade power unit designed for equipment that requires both mechanical power and an auxiliary electrical supply. Its built-in 12V/50W lamp coil can power compatible lights or laser-guidance systems, making it well suited to pavement stripers, paint sprayers, concrete screeds, and similar professional equipment.
Key Specifications
| Specification | Details |
|---|---|
| Brand | Honda |
| Model | GX120 QXS2 |
| Current manufacturer model | GX120UT3QXS2 |
| Engine type | Air-cooled, four-stroke, single-cylinder OHV |
| Shaft orientation | Horizontal |
| Crankshaft type | Q-type straight shaft |
| Shaft diameter | 3/4″ |
| Shaft length | 2.43″ / approximately 2-27/64″ |
| Keyway | 3/16″ |
| End tap | 5/16″-24 |
| Lamp coil | 12V/50W |
| Muffler | Included, low-profile configuration |
| Displacement | 122cc |
| Bore × stroke | 60 × 43.5 mm |
| Net power | 3.2 HP (2.4 kW) at 3,600 rpm |
| Maximum net torque | 5.5 lb-ft (7.3 Nm) at 2,500 rpm |
| Compression ratio | 8.3:1 |
| Starting system | Heavy-duty recoil starter |
| Ignition | Transistorized magneto |
| Carburetor | Butterfly-float type |
| Governor | Centrifugal mechanical |
| Lubrication | Splash |
| Oil capacity | 0.59 US qt / 0.56 liter |
| Low-oil protection | Oil Alert with automatic shutdown |
| Air cleaner | Dual-element |
| Fuel | Unleaded gasoline, 86 octane or higher |
| Fuel-tank capacity | 2.1 US qt / 2.0 liters |
| PTO rotation | Counterclockwise from PTO side |
| Throttle control | Remote-wire compatible |
| Dimensions | Approximately 297 × 346 × 329 mm |
| Dry weight | Approximately 28.9 lb / 13.2 kg |
| CARB approved | Yes for the UT3 configuration |
