Briggs & Stratton 386447-0448-F1 Horizontal Vanguard Engine for SALE
$ 1.282,60
Brand: Briggs & Stratton EnginesBuy the Briggs & Stratton 386447-0448-F1 Horizontal Vanguard Engine with electric start, oil cooler, fuel tank, and 16A charging.

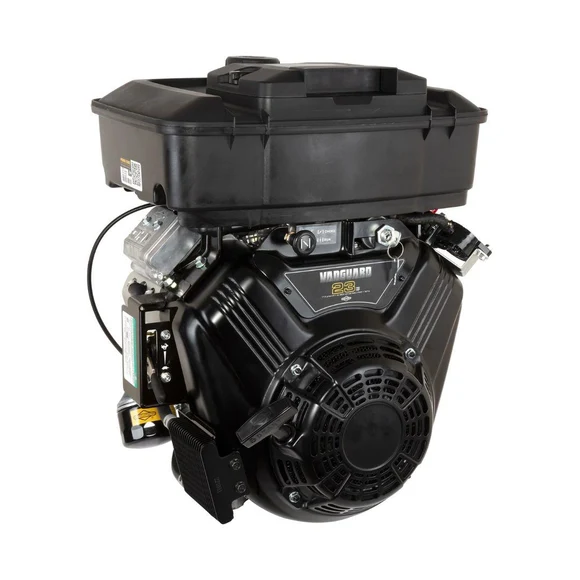

Briggs & Stratton 386447-0448-F1 Horizontal Vanguard Engine
The Briggs & Stratton 386447-0448-F1 Horizontal Vanguard Engine delivers dependable commercial-grade power for compatible outdoor, agricultural, and industrial equipment. Its compact Small Block V-Twin configuration produces 23 gross horsepower from a 627cc displacement, providing a strong balance of power, efficiency, and durability.
Key Features
- Commercial-grade Vanguard construction
- 23 gross HP output
- 627cc Small Block V-Twin design
- Horizontal crankshaft
- Electric starting system
- Advanced Debris Management
- Dura-Bore cast-iron cylinder sleeves
- Integrated oil cooler
- Centrally located oil pump and pickup
- Integrated fuel tank
- 16-amp charging system
- EPA-compliant design
Specifications
| Specification | Details |
|---|---|
| Brand | Briggs & Stratton |
| Engine series | Vanguard |
| Model number | 386447-0448-F1 |
| Engine configuration | Small Block V-Twin |
| Shaft orientation | Horizontal |
| Power rating | 23 gross HP |
| Displacement | 627cc |
| Bore | 2.97″ / 75.44 mm |
| Stroke | 2.76″ / 70.10 mm |
| Maximum engine speed | 3,600 RPM |
| Starting system | Electric start |
| Crankshaft diameter | 1″ |
| Crankshaft length | 3″ |
| Crankshaft dimensions | 1″ × 3″ |
| Crankshaft keyway | 1/4″ |
| Drilled and tapped end | 3/8-24 |
| Cylinder sleeves | Dura-Bore cast iron |
| Oil cooler | Included |
| Oil pump | Centrally located |
| Oil capacity | 48 fl oz / approximately 1.42 L |
| Charging system | 16 amp |
| Fuel tank | Included |
| Debris protection | Advanced Debris Management |
| Emissions compliance | EPA compliant |
