Briggs & Stratton 543477-3318-J1 Horizontal Engine for SALE
$ 2.410,10
Brand: Briggs & Stratton EnginesShop the Briggs & Stratton 543477-3318-J1 Horizontal Engine with 31 HP, 896cc V-Twin power, electric start and a 1-1/8″ × 4″ horizontal shaft.

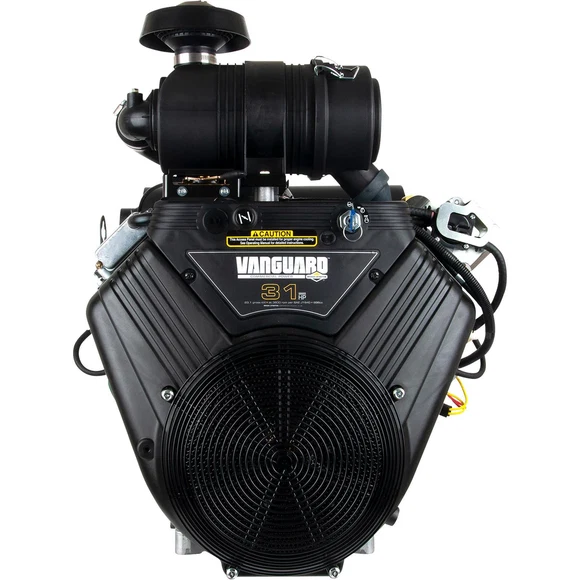

Briggs & Stratton 543477-3318-J1 Horizontal Engine
The Briggs & Stratton 543477-3318-J1 Horizontal Engine is a commercial-grade Vanguard Big Block engine engineered for dependable performance in demanding industrial and outdoor power applications. Its 896cc V-Twin OHV configuration produces 31 gross horsepower, providing smooth power for generators, pumps, compressors, construction equipment, and other heavy-duty machinery.
Key Features
- Commercial Vanguard Big Block engine
- 31 gross horsepower
- 896cc V-Twin displacement
- Horizontal 1-1/8″ × 4″ crankshaft
- Dura-Bore cast-iron cylinder sleeves
- Full-pressure lubrication
- Replaceable spin-on oil filter
- Integrated oil cooler
- Cyclonic air-cleaning system
- Advanced debris management
- Electronic ignition
- Mechanical governor
- Manual choke
- 12-volt electric starter
- 20-amp alternator
- Mechanical fuel pump
- Muffler included
- Fuel tank not included
Specifications
| Specification | Details |
|---|---|
| Brand | Briggs & Stratton |
| Engine series | Vanguard Big Block |
| Model number | 543477-3318-J1 |
| Engine type | Commercial four-stroke V-Twin |
| Crankshaft orientation | Horizontal |
| Power output | 31 gross HP |
| Displacement | 896cc |
| Number of cylinders | 2 |
| Cylinder configuration | V-Twin |
| Valve configuration | Overhead Valve (OHV) |
| Cooling system | Air-cooled |
| Bore | 3.37 in. |
| Stroke | 3.07 in. |
| Fuel type | Gasoline |
| Fuel system | Float-type carburetor |
| Fuel pump | Included |
| Choke | Manual |
| Governor | Mechanical |
| Ignition system | Electronic |
| Starting system | 12-volt electric start |
| Starter type | Solenoid-shift starter |
| Charging system | 20-amp alternator |
| Lubrication system | Full pressure |
| Oil filter | Spin-on oil filter |
| Oil cooler | Included |
| Oil capacity | Approximately 2.5 qt. / 2.4 L |
| Recommended commercial oil | Vanguard 15W-50 full synthetic |
| Cylinder sleeves | Dura-Bore cast iron |
| Air cleaner | Cyclonic air cleaner with rain cap |
| Crankshaft diameter | 1-1/8 in. |
| Crankshaft length | 4 in. |
| Crankshaft end | Drilled and tapped 7/16″-20 |
| Crankshaft keyway | 1/4 in. |
| Shaft rotation | Counterclockwise when viewed from PTO side |
| PTO height | Approximately 6.13 in. |
| Muffler | Included |
| Fuel tank | Not included |
| Overall length | Approximately 15.1 in. |
| Overall width | Approximately 19.6 in. |
| Overall height | Approximately 25 in. |
| Shipping weight | Approximately 150 lb. |
| UPC | 047282759516 |
| Typical applications | Generators, pumps, compressors and industrial equipment |
