Honda GX270 PA2 Horizontal Engine with Threaded Shaft for SALE
$ 501,60
Brand: Honda EnginesBuy the Honda GX270 PA2 Horizontal Engine with Threaded Shaft with 270cc displacement, 8.4 HP output, recoil start and a 1-inch threaded PTO shaft.

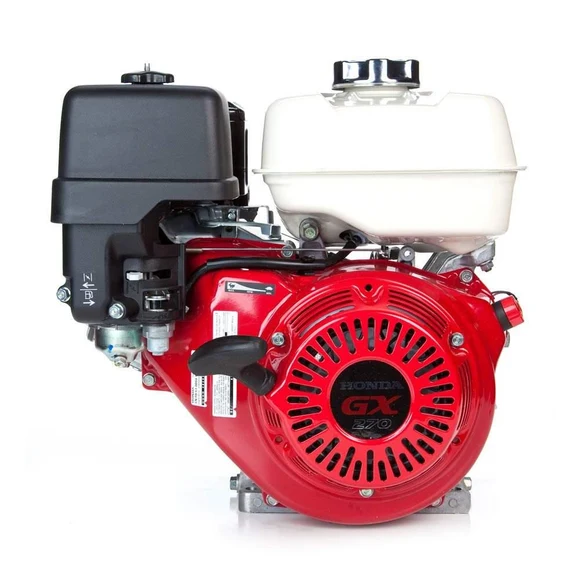

Honda GX270 PA2 Horizontal Engine with Threaded Shaft
The Honda GX270 PA2 Horizontal Engine delivers dependable commercial-grade power for pumps, pressure washers, construction equipment, agricultural machinery, generators, and other industrial applications requiring a threaded PTO shaft. Its 270cc air-cooled, four-stroke OHV design produces 8.4 HP at 3,600 RPM and 14.1 lb-ft of torque at 2,500 RPM.
Key Features
- Commercial-grade 270cc four-stroke OHV engine
- 8.4 HP net output at 3,600 RPM
- 14.1 lb-ft maximum torque at 2,500 RPM
- PA2 threaded PTO shaft configuration
- Heavy-duty recoil starting system
- Digital CDI ignition with variable timing
- Automatic mechanical decompression
- Honda Oil Alert protection
- Dual-element air cleaner
- Cast-iron cylinder sleeve
- Ball-bearing-supported crankshaft
- Large-capacity fuel tank
Specifications
| Specification | Details |
|---|---|
| Brand | Honda |
| Model | GX270 PA2 |
| Manufacturer model | GX270UT2PA2 |
| Engine type | Air-cooled, four-stroke OHV |
| Cylinders | One |
| Displacement | 270cc |
| Bore × stroke | 77 × 58 mm |
| Net power output | 8.4 HP / 6.3 kW at 3,600 RPM |
| Maximum torque | 14.1 lb-ft / 19.1 Nm at 2,500 RPM |
| Starting system | Recoil |
| Shaft orientation | Horizontal |
| Crankshaft type | Externally threaded |
| Shaft diameter | 1 inch |
| Shaft length | Approximately 3-1/2 inches |
| Shaft thread | 1″-14 UNF-2A, right-hand |
| PTO rotation | Counterclockwise from PTO side |
| Ignition | Digital CDI with variable timing |
| Compression ratio | 8.5:1 |
| Lubrication | Splash |
| Air cleaner | Dual element |
| Fuel capacity | 5.6 US qt / 5.3 liters |
| Oil capacity | 1.16 US qt / 1.1 liters |
| Recommended fuel | Unleaded gasoline, 86 octane or higher |
| Dry weight | Approximately 55 lb / 25 kg |
| Dimensions | Approximately 15 × 16.9 × 16.6 inches |
