Honda GX690 TXF2 Horizontal Engine with Snorkel Air Cleaner for SALE
$ 1.639,00
Brand: Honda EnginesBuy the Honda GX690 TXF2 Horizontal Engine with Snorkel Air Cleaner with 22.1 HP, electric start, 1-1/8-inch shaft and Donaldson snorkel air cleaner.

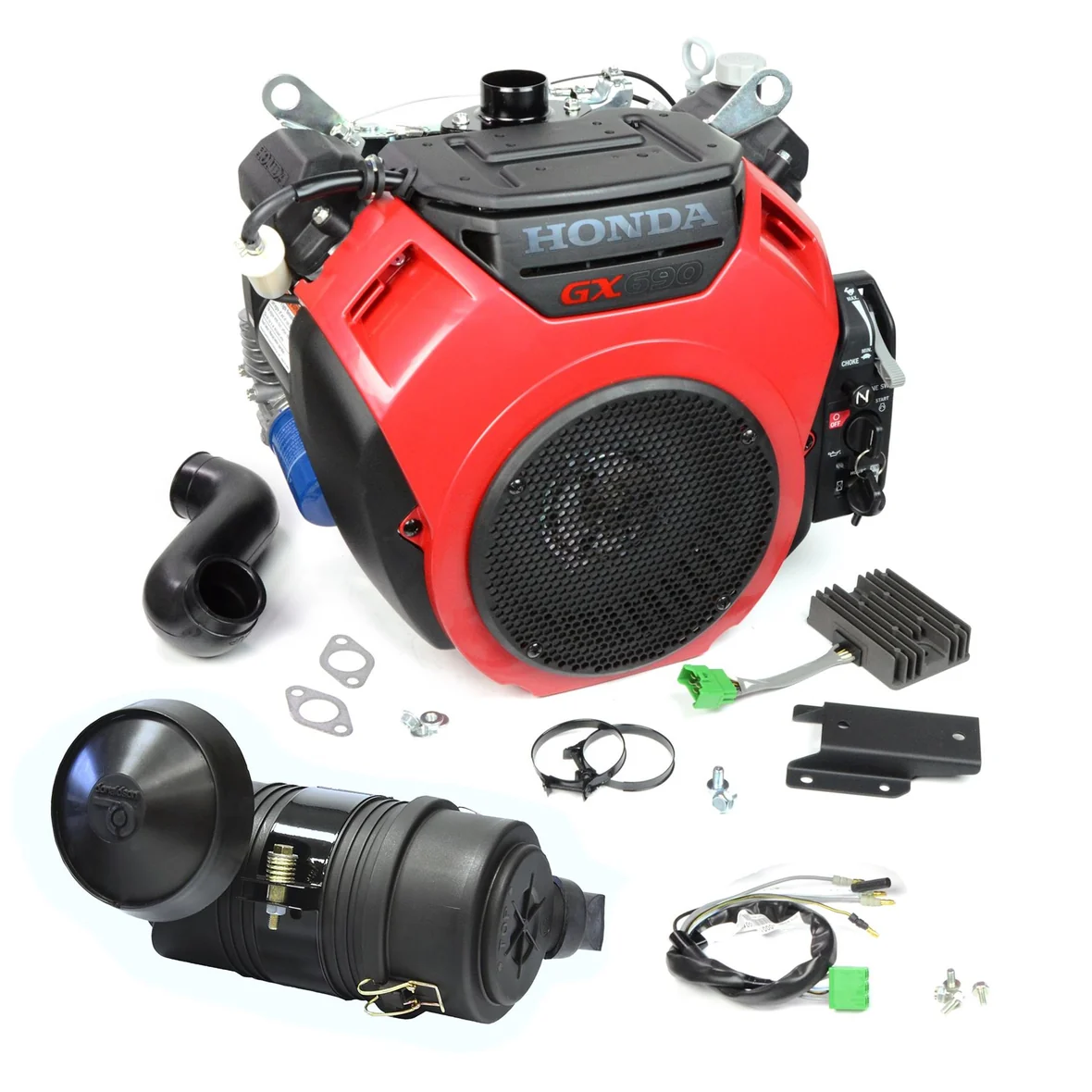

Honda GX690 TXF2 Horizontal Engine with Snorkel Air Cleaner
The Honda GX690 TXF2 Horizontal Engine with Snorkel Air Cleaner delivers reliable commercial-grade power for equipment operating in dusty and demanding environments. Its 688cc, air-cooled 90-degree V-Twin OHV design produces 22.1 HP at 3,600 rpm and 35.6 lb-ft of torque at 2,500 rpm.
Key Features
- Commercial-grade 688cc V-Twin engine
- 22.1 HP net power output
- Donaldson canister snorkel air cleaner included
- Designed for dusty operating environments
- Electric starting system
- Digital CDI ignition with variable timing
- Two-barrel carburetor
- Full-pressure lubrication
- Automotive-style spin-on oil filter
- Forged-steel crankshaft
- Cast-iron cylinder sleeves
- Oil Alert engine protection
- 1-1/8-inch keyed horizontal shaft
Specifications
| Specification | Details |
|---|---|
| Model | GX690 TXF2 |
| Manufacturer model code | GX690RHTXF2 |
| Engine type | Air-cooled, 4-stroke, OHV 90° V-Twin |
| Shaft orientation | Horizontal |
| Displacement | 688cc |
| Bore × stroke | 78 × 72 mm |
| Compression ratio | 9.3:1 |
| Net power | 22.1 HP at 3,600 rpm |
| Maximum torque | 35.6 lb-ft at 2,500 rpm |
| Fuel system | Two-barrel carburetor |
| Ignition | Digital CDI with variable timing |
| Starting system | Electric |
| Lubrication | Full pressure |
| Oil capacity | Approximately 1.7 L with filter change |
| Air cleaner | Donaldson canister snorkel system |
| Shaft diameter | 1-1/8 in. |
| Shaft length | Approximately 3.78 in. |
| Keyway | 1/4 in. |
| Shaft end tapping | 7/16-20 |
| PTO rotation | Counterclockwise from PTO side |
| Fuel | Unleaded gasoline, 86 octane or higher |
