Kohler CH620-3132 Horizontal Command PRO Engine, Replaces CH621-3010 for SALE
$ 1.628,00
Brand: Kohler EnginesBuy Kohler CH620-3132 Horizontal Command PRO Engine, Replaces CH621-3010, 19 HP 674cc V-Twin with electric start and 15-amp alternator. Replaces CH621-3010.

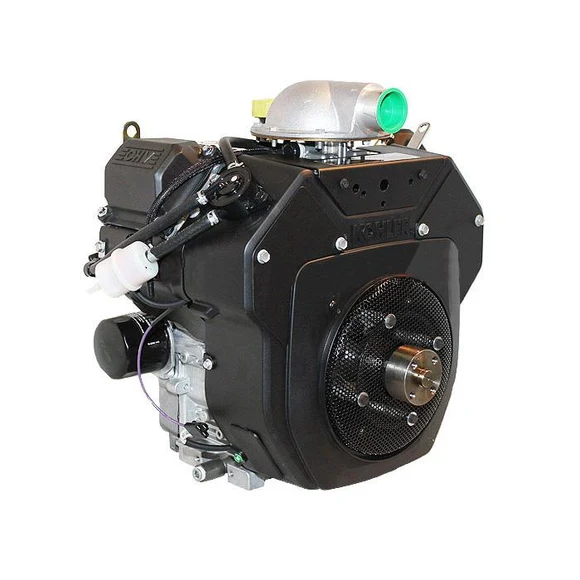

Kohler CH620-3132 Horizontal Command PRO Engine, Replaces CH621-3010
Kohler CH620-3132 Horizontal Command PRO Engine, Replaces CH621-3010 is a reliable 19 HP, 674cc V-Twin gasoline engine designed for demanding commercial outdoor power equipment. This horizontal-shaft Kohler Command PRO engine features an OHV design, electric start, 15-amp alternator, fuel pump, and full-pressure lubrication, providing dependable power for professional applications.
Key Features
- 19 HP Kohler Command PRO engine
- 674cc V-Twin
- Horizontal-shaft configuration
- No PTO shaft / shaftless crankshaft
- OHV design
- Electric start
- 15-amp alternator
- Fuel pump
- Air-cleaner adapter
- Full-pressure lubrication
- Full-flow oil filtration
- Cast-iron cylinder liners
- Designed for commercial applications
- Fits certain Walker MTGHS mower applications
- Replaces CH621-3010
Specifications
| Specification | Details |
|---|---|
| Brand | Kohler |
| Model | CH620-3132 |
| Replacement Model | CH621-3010 |
| Engine Series | Command PRO |
| Engine Type | 4-Cycle Gasoline |
| Cylinder Configuration | V-Twin |
| Valve Configuration | OHV |
| Displacement | 674cc / 41.1 cu. in. |
| Gross Power | 19 HP @ 3,600 RPM |
| Peak Torque | 35.0 ft-lb @ 2,400 RPM |
| Bore | 3.15 in. / 80 mm |
| Stroke | 2.64 in. / 67 mm |
| Compression Ratio | Approximately 8.5:1 |
| Cooling System | Air Cooled |
| Shaft Orientation | Horizontal |
| Crankshaft | No PTO Shaft |
| Starting System | Electric Start |
| Alternator | 15 Amp |
| Fuel Pump | Yes |
| Lubrication | Full Pressure |
| Oil Filter | Full-Flow |
| Oil Capacity | 2.0 US qt / 1.9 L |
| Air Cleaner Adapter | Included |
| Fuel Tank | Not Included |
| Muffler | Not Included |
| Length | 14 in. |
| Width | 17.7 in. |
| Height | 19 in. |
| Dry Weight | Approximately 107 lb |
| Common Application | Walker MTGHS Mowers |
| Warranty | 3-Year Engine Manufacturer Warranty* |
