Kohler CH730-3003 Horizontal Engine, Replaces CH730-3206 for SALE
$ 1.604,90
Brand: Kohler EnginesBuy Kohler CH730-3003 Horizontal Engine, Replaces CH730-3206, a 23.5 HP 725cc Command PRO V-Twin with electric start, 25-amp charging and 13-tooth splined B-mount crankshaft. Replaces CH730-3206.

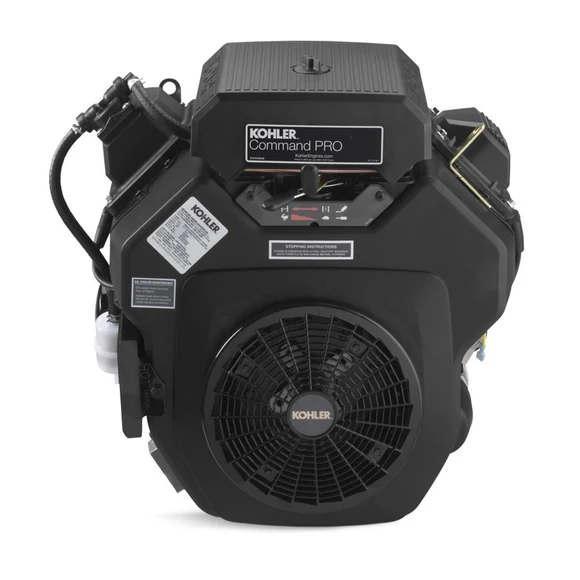

Kohler CH730-3003 Horizontal Engine, Replaces CH730-3206
Kohler CH730-3003 Horizontal Engine, Replaces CH730-3206 is a powerful 23.5 HP, 725cc Command PRO horizontal-shaft gasoline engine designed for demanding commercial and industrial applications. Featuring a 4-cycle OHV V-Twin configuration, this engine delivers smooth, reliable power and excellent durability for equipment requiring a dependable replacement engine.
Key Features
- 23.5 HP Kohler Command PRO engine
- 725cc OHV V-Twin
- Horizontal shaft configuration
- 13-tooth splined B-mount crankshaft
- Electric start
- 25-amp charging system
- Two-barrel carburetor
- Full-pressure lubrication
- Full-flow oil filter
- Cast-iron cylinder liners
- Engine-mounted controls
- Engine-mounted ignition switch
- Large-capacity air cleaner
- Replaces Kohler CH730-3206
- Also replaces CH730-0128, CH730-0131 and CH730-3131
Specifications
| Specification | Details |
|---|---|
| Brand | Kohler |
| Model | CH730-3003 |
| Part Number | PA-CH730-3003 |
| Replaces | CH730-3206 |
| Other Replacements | CH730-0128, CH730-0131, CH730-3131 |
| Engine Series | Command PRO |
| Engine Type | 4-Cycle Gasoline |
| Cylinder Configuration | V-Twin |
| Valve Configuration | OHV |
| Displacement | 725cc / 44 cu. in. |
| Gross Power | 23.5 HP |
| Peak Torque | 38.4 ft-lb |
| Bore | 3.3 in. / 83 mm |
| Stroke | 2.7 in. / 67 mm |
| Compression Ratio | 9.1:1 |
| Cooling | Air Cooled |
| Shaft Orientation | Horizontal |
| Crankshaft Type | 13-Tooth Splined |
| Mounting | B-Mount |
| Starting System | Electric Start |
| Charging System | 25 Amp |
| Carburetor | Two-Barrel |
| Lubrication | Full Pressure with Full-Flow Filter |
| Oil Capacity | 2.0 US qt / 1.9 L |
| Cylinder Bore | Cast-Iron Liners |
| Air Cleaner | Flat |
| Fuel | Gasoline |
| Controls | Included on Engine |
| Ignition Switch | Included on Engine |
| Fuel Tank | Not Included |
| Muffler | Not Included |
| Engine Length | 14 in. |
| Engine Width | 17.7 in. |
| Engine Height | 19 in. |
| Dry Weight | Approximately 90 lb |
| Warranty | 3-Year Limited Manufacturer Warranty* |
