Kohler KT715-3027 Vertical 7000 Series Engine, E09 MTD Spec for SALE
$ 1.207,80
Brand: Kohler EnginesBuy the Kohler KT715-3027 Vertical 7000 Series Engine, E09 MTD Spec with electric start, automatic choke and a 1-inch shaft for MTD equipment.

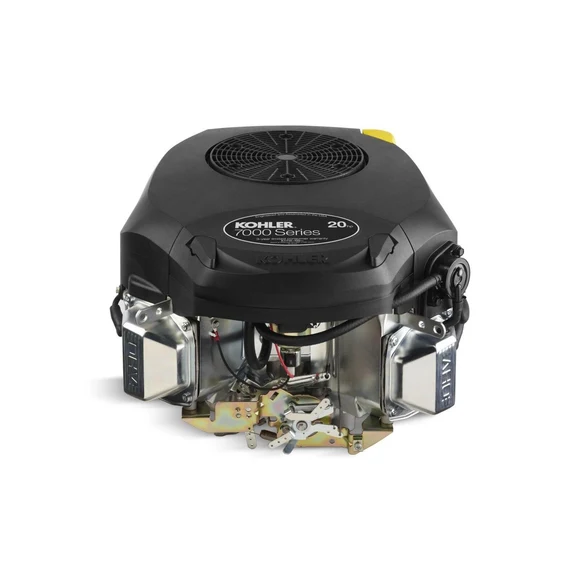

Kohler KT715-3027 Vertical 7000 Series Engine, E09 MTD Spec
The Kohler KT715-3027 is a powerful 7000 Series vertical-shaft engine manufactured in an E09 configuration for selected MTD-built lawn tractors and riding mowers. Its 725cc air-cooled V-twin OHV design delivers 20 gross horsepower and 40.3 lb-ft of peak torque for reliable mowing performance under changing loads.
Key Features
- E09 configuration manufactured for selected MTD equipment
- 725cc air-cooled V-twin OHV engine
- 20 gross horsepower
- 40.3 lb-ft maximum torque
- Vertical 1″ × 3-5/32″ keyed crankshaft
- 12V electric Bendix-drive starter
- 15-amp charging system
- Smart-Choke automatic starting system
- Remote throttle control
- Low-profile air cleaner
- Full-pressure lubrication
- Replaceable full-flow oil filter
- Cast-iron cylinder liners
- Pulse-type fuel pump
- Consistent-Cut technology
- Three-year limited manufacturer warranty
Specifications
| Specification | Details |
|---|---|
| Manufacturer | Kohler / Rehlko |
| Product series | 7000 Series |
| Model | KT715-3027 |
| Manufacturer part number | PA-KT715-3027 |
| OEM specification | E09 MTD |
| Engine type | Four-stroke OHV V-twin |
| Shaft orientation | Vertical |
| Displacement | 725cc (44.2 cu. in.) |
| Gross power | 20 HP (14.9 kW) |
| Peak torque | 40.3 lb-ft (54.6 Nm) at approximately 2,200 rpm |
| Number of cylinders | Two |
| Bore × stroke | 3.27″ × 2.64″ (83 × 67mm) |
| Compression ratio | Approximately 9.1:1 |
| Cylinder liners | Cast iron |
| Cooling system | Forced-air |
| Maximum governed speed | 3,600 rpm |
| Fuel type | Unleaded gasoline |
| Fuel delivery | Carbureted |
| Fuel pump | Pulse type |
| Fuel tank | Not included |
| Ignition system | Electronic |
| Governor | Mechanical |
| Starting system | 12V electric |
| Starter type | Bendix drive |
| Choke system | Smart-Choke automatic choke |
| Throttle control | Remote |
| Charging system | 15 amp |
| PTO shaft type | Straight and keyed |
| Shaft diameter | 1″ (25.4mm) |
| Shaft length | 3-5/32″ or approximately 3.16″ (80.3mm) |
| Keyway | 1/4″ |
| Shaft-end thread | 7/16″-20 |
| Shaft rotation | Counterclockwise viewed from PTO end |
| Lubrication system | Full-pressure lubrication |
| Oil filter | Replaceable full-flow filter |
| Oil capacity | 2.0 US qt (1.9 L) with filter |
| Recommended oil | SAE 10W-30 or viscosity appropriate for ambient temperature |
| Air cleaner | Low-profile paper element with foam pre-cleaner |
| Muffler | Not included |
| Approximate dimensions | 18.6″ L × 17.8″ W × 13.9″ H |
| Approximate dry weight | 85 lb (38.6 kg) |
| Maximum operating angle | 25° with oil at the full mark |
| Warranty | Three-year limited, unlimited-hour manufacturer warranty |
