Kohler SH265-3014 Horizontal Engine with Threaded Pump Shaft for SALE
$ 257,40
Brand: Kohler EnginesShop the Kohler SH265-3014 Horizontal Engine with Threaded Pump Shaft with 6.5 HP, recoil start, variable speed, and a 5/8″-18 threaded pump shaft.

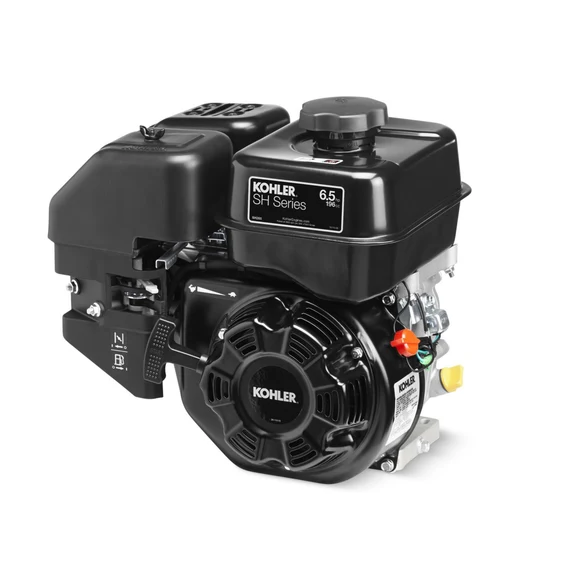

Kohler SH265-3014 Horizontal Engine with Threaded Pump Shaft
The Kohler SH265-3014 Horizontal Engine is a compact and dependable power solution designed for pumps, pressure washers, and other commercial or residential equipment requiring a threaded pump shaft. Its 196cc, four-stroke OHV single-cylinder design delivers up to 6.5 HP and 10.2 ft-lb of peak torque for reliable performance under demanding operating conditions.
Key Features
- Powerful 196cc four-stroke OHV engine
- Up to 6.5 HP maximum output
- 10.2 ft-lb peak torque
- 5/8″-18 UNF threaded pump shaft
- Variable-speed operation
- Reliable recoil starting system
- Mechanical governor for stable engine speed
- Cast-iron cylinder liner for added durability
- Forced-air cooling system
- Dual oil drains for easier servicing
Specifications
| Specification | Details |
|---|---|
| Brand | Kohler |
| Model | SH265-3014 |
| Engine series | SH Series |
| Engine type | Four-stroke OHV |
| Cylinder configuration | Single cylinder |
| Shaft orientation | Horizontal |
| Displacement | 196cc |
| Maximum power | 6.5 HP |
| Power output | Approximately 4.8–4.9 kW |
| Peak torque | 10.2 ft-lb |
| Maximum operating speed | 3,600 RPM |
| Bore × stroke | 68 × 54 mm (2.7 × 2.1 in.) |
| Compression ratio | 8.5:1 |
| Shaft type | Threaded pump shaft |
| Shaft size | 5/8″-18 UNF × 2.44 in. |
| Speed control | Variable speed |
| Starting system | Recoil start |
| Governor | Mechanical |
| Cooling system | Forced air |
| Lubrication system | Splash lubrication |
| Ignition system | Electronic ignition |
| Fuel type | Unleaded gasoline |
| Fuel-tank capacity | Approximately 3.3 L |
| Oil capacity | Approximately 0.6 L (0.63 US qt.) |
| Cylinder liner | Cast iron |
| Recommended oil | SAE 10W-30* |
| Spark plug | Champion RC12YC or equivalent* |
