Kohler SH265-3152 Horizontal Engine for SALE
$ 288,20
Brand: Kohler EnginesBuy the Kohler SH265-3152 Horizontal Engine with 6.5 gross HP, recoil start, variable speed, and a 3/4-inch crankshaft.

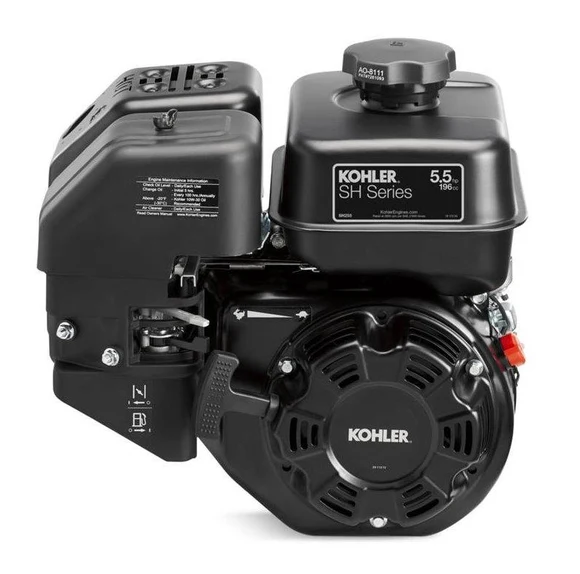

Kohler SH265-3152 Horizontal Engine
The Kohler SH265-3152 Horizontal Engine is a compact and dependable power source designed for pumps, pressure washers, generators, tillers, log splitters, and other compatible general-purpose equipment. Its 196cc, four-cycle OHV single-cylinder design delivers up to 6.5 gross HP and 10.2 ft-lb of peak torque for reliable performance in demanding applications.
Key Features
- 196cc four-cycle OHV engine
- Up to 6.5 gross HP
- 10.2 ft-lb peak torque
- Horizontal 3/4″ × 2.46″ crankshaft
- 5/16″-24 drilled and tapped crankshaft end
- Variable-speed operation
- Reliable recoil starting system
- Mechanical governor for stable speed
- Forced-air cooling
- Splash lubrication
- Cast-iron cylinder liner
- Dual oil drains for easier servicing
- Compact design for general-purpose equipment
Specifications
| Specification | Details |
|---|---|
| Brand | Kohler |
| Model | SH265-3152 |
| Manufacturer part number | PA-SH265-3152 |
| Engine series | SH Series |
| Specification | E16 Jiashan Super Power |
| Engine type | Four-cycle OHV gasoline engine |
| Cylinder configuration | Single cylinder |
| Shaft orientation | Horizontal |
| Displacement | 196cc (12.0 cu. in.) |
| Gross power | 6.5 HP (4.9 kW) at 3,600 RPM |
| Net power | Approximately 5.5 HP (4.1 kW) at 3,600 RPM |
| Listed peak torque | 10.2 ft-lb |
| Bore × stroke | 68 × 54 mm (2.7 × 2.1 in.) |
| Compression ratio | 8.5:1 |
| Crankshaft diameter | 3/4 in. |
| Crankshaft length | 2.46 in. |
| Crankshaft end | 5/16″-24 drilled and tapped |
| Starting system | Recoil start only |
| Speed control | Variable speed |
| Governor | Mechanical |
| Cooling system | Forced air |
| Lubrication system | Splash lubrication |
| Ignition system | Electronic magneto |
| Fuel system | Carbureted |
| Fuel type | Unleaded gasoline |
| Fuel-tank capacity | Approximately 3.6 L (3.8 US qt.) |
| Oil capacity | 0.6 L (0.63 US qt.) |
| Recommended oil | SAE 10W-30* |
| Cylinder liner | Cast iron |
| Dry weight | Approximately 16 kg (35.3 lb.) |
| Maximum operating angle | 25° at full oil level |
