Raymarine Axiom 2 Pro 16 RVM HybridTouch Multifunction Display for SALE
$ 4.752,00
Brand: RaymarineShop the Raymarine Axiom 2 Pro 16 RVM HybridTouch Multifunction Display, RealVision MAX sonar, 1kW CHIRP, GPS and advanced marine networking.

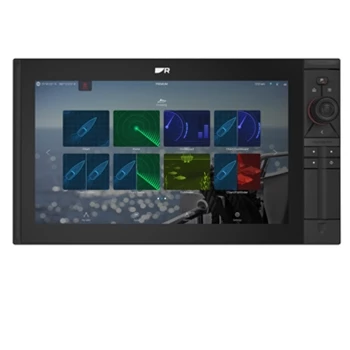

Raymarine Axiom 2 Pro 16 RVM HybridTouch Multifunction Display
The Raymarine Axiom 2 Pro 16 RVM combines a bright 15.6-inch Full HD display, HybridTouch control, six-core processing, built-in GNSS, and RealVision MAX sonar. Designed for serious offshore fishing, it integrates navigation, radar, sonar, autopilot, cameras, and vessel data into one powerful multifunction display.
Key Features
- 15.6-inch sunlight-readable IPS screen
- 1920 × 1080 Full HD resolution
- 1,200-nit display brightness
- HybridTouch touchscreen and keypad operation
- Six-core processor
- LightHouse operating system
- HydroTough water-repellent screen coating
- Integrated RealVision MAX sonar
- High CHIRP, DownVision, SideVision, and RealVision 3D
- Separate 1kW dual-channel CHIRP sonar port
- Built-in 10Hz multi-constellation GNSS
- 64GB internal solid-state storage
- Two front-accessible microSDXC slots
- Two Gigabit RayNet Ethernet ports
- NMEA 2000, dual-band Wi-Fi, and Bluetooth
- HDMI output and analog video input
- IPX6 and IPX7 waterproof protection
Technical Specifications
| Specification | Details |
|---|---|
| Manufacturer | Raymarine |
| Model | Axiom 2 Pro 16 RVM |
| SKU | E70658 |
| Display size | 15.6 inches |
| Display type | IPS HybridTouch |
| Resolution | 1920 × 1080 Full HD |
| Aspect ratio | 16:10 |
| Brightness | 1,200 nits |
| Internal storage | 64GB solid state |
| External storage | 2 × microSDXC |
| RealVision MAX output | 600W RMS |
| Traditional CHIRP output | 1kW RMS |
| GNSS | GPS, GLONASS, Galileo and BeiDou |
| GNSS refresh rate | 10Hz |
| Networking | 2 × RayNet and NMEA 2000 |
| Wireless connectivity | 2.4/5GHz Wi-Fi and Bluetooth 4.0 |
| Operating voltage | 8–32V DC |
| Power consumption | 42.36W at 12V DC |
| Waterproof rating | IPX6/IPX7 |
| Flush-mount dimensions | 452.02 × 258 × 240.4 mm |
| Bracket-mount dimensions | 482.5 × 281.2 × 233.4 mm |
