Raymarine Axiom 2 Pro 9 S HybridTouch Multifunction Display for SALE
$ 2.233,00
Brand: RaymarineBuy the Raymarine Axiom 2 Pro 9 S HybridTouch Multifunction Display, High CHIRP sonar, built-in GPS, sailing tools and advanced marine networking.

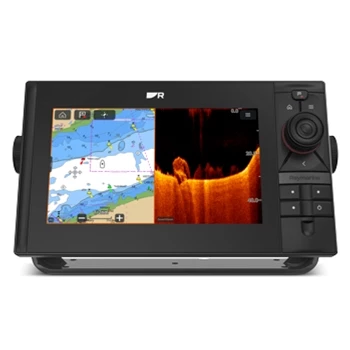

Raymarine Axiom 2 Pro 9 S HybridTouch Multifunction Display
The Raymarine Axiom 2 Pro 9 S combines a bright 9-inch HybridTouch display, six-core processing, built-in GPS, and High CHIRP sonar in a compact marine navigation system. Designed for cruising and sailing, it provides dependable control of charts, radar, autopilot, cameras, instruments, and compatible onboard electronics.
Key Features
- 9-inch sunlight-readable IPS display
- 1280 × 720 HD resolution
- Bright 1,300-nit screen
- HybridTouch touchscreen and keypad control
- Powerful six-core processor
- Intuitive LightHouse operating system
- HydroTough water-repellent screen coating
- Integrated single-channel High CHIRP sonar
- Sonar depth capability up to 900 feet
- Built-in 10Hz multi-constellation GNSS
- Advanced sailing tools and dynamic laylines
- 64GB internal solid-state storage
- Two front-mounted microSDXC slots
- Dual Gigabit RayNet Ethernet ports
- NMEA 2000 marine networking
- Dual-band Wi-Fi and Bluetooth
- HDMI output and analog video input
- IPX6 and IPX7 waterproof protection
Technical Specifications
| Specification | Details |
|---|---|
| Manufacturer | Raymarine |
| Model | Axiom 2 Pro 9 S |
| Manufacturer SKU | E70653 |
| Display size | 9 inches |
| Display type | IPS HybridTouch |
| Resolution | 1280 × 720 HD |
| Aspect ratio | 16:9 |
| Brightness | 1,300 nits |
| Sonar | Single-channel High CHIRP |
| Maximum sonar depth | Up to 274 m/900 ft |
| Transducer connection | 25-pin RealVision connector |
| Internal storage | 64GB solid state |
| External storage | 2 × microSDXC slots |
| GNSS | GPS, Galileo, GLONASS and BeiDou |
| GNSS refresh rate | 10Hz |
| Networking | 2 × RayNet and NMEA 2000 |
| Wireless | 2.4/5GHz Wi-Fi and Bluetooth 4.0 |
| Operating voltage | 8–32V DC |
| Power consumption | 33.12W at 12V DC |
| Waterproof rating | IPX6/IPX7 |
| Flush-mount dimensions | 299.32 × 173.79 × 234.9 mm |
| Bracket-mount dimensions | 329.5 × 186.2 × 234.9 mm |
