Simrad S2009 9″ CHIRP Fishfinder for SALE
$ 570.00
Brand: SimradBuy the Simrad S2009 9″ CHIRP Fishfinder with a bright portrait display, integrated 1kW sounder, deep-water sonar, NMEA 2000 and Ethernet networking.

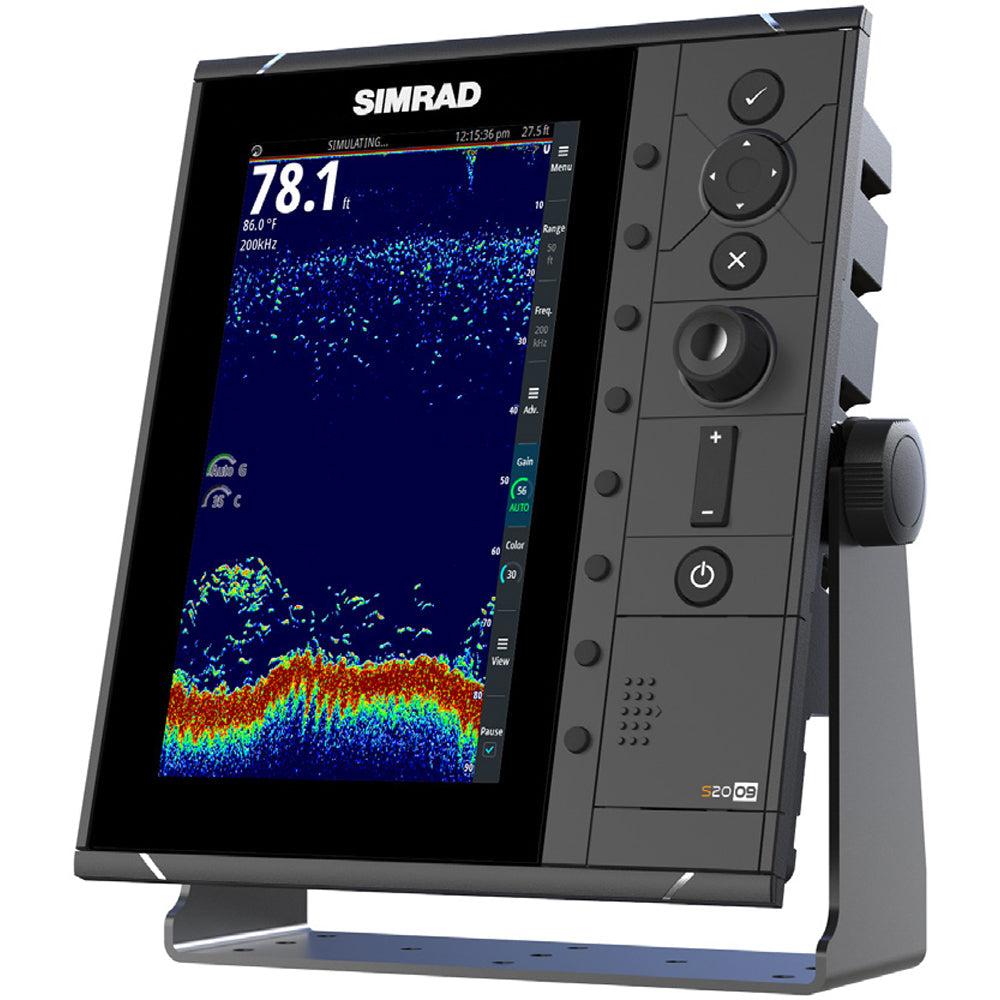

Simrad S2009 9″ CHIRP Fishfinder
The Simrad S2009 is a dedicated 9-inch CHIRP fishfinder featuring a bright portrait display, integrated 1kW Broadband Sounder, deep-water capability, direct-access keypad, rotary controller, and extensive marine networking. Its rugged IPX7 construction and flexible bracket or flush mounting make it ideal for commercial, offshore, and sportfishing vessels.
Key Features
- Dedicated 9-inch portrait fishfinder
- Bright LED-backlit color display
- Integrated single-channel 1kW Broadband Sounder
- Supports Low, Medium, and High CHIRP transducers
- Supports traditional Broadband frequencies
- High depth penetration and fast ping rate
- Eight direct-access menu keys
- Rotary control knob
- White Line, White Marker, and Color Erase functions
- Vertical heave-compensation support
- Full-size SD card slot for sonar recording
- Ethernet sonar networking
- NMEA 2000 and NMEA 0183 connectivity
- Bracket or flush-mount installation
- IPX7 water-resistant construction
- Suitable for commercial and recreational fishing vessels
Specifications
| Specification | Details |
|---|---|
| Model | S2009 |
| Display size | 9 inches |
| Display orientation | Portrait |
| Display type | LED-backlit color TFT LCD |
| Resolution | 480 × 800 pixels |
| Brightness | 1,200 cd/m² |
| Viewing angles | 110° × 160° |
| Sonar output | 1kW RMS |
| Sounder type | Broadband and single-channel CHIRP |
| Maximum depth | Up to approximately 3,000 m/10,000 ft |
| CHIRP frequencies | 28–38, 40–60, 85–145 and 130–210kHz |
| Broadband frequencies | 28, 38, 50, 83 and 200kHz |
| Transducer included | No |
| Transducer connector | Seven-pin blue sonar port |
| Ethernet | One five-pin yellow port |
| NMEA 2000 | One Micro-C port |
| NMEA 0183 | Supported |
| Memory-card slot | Full-size SD |
| Controls | Keypad and rotary knob |
| Supply voltage | 10.8–31.2V DC |
| Compatible systems | 12V and 24V DC |
| Power consumption | 11W |
| Recommended fuse | 3A |
| Water resistance | IPX7 |
| Operating temperature | -15°C to +55°C |
| Dimensions | 8.8 × 10.2 × 2.4 in |
| Weight | Approximately 4.4 lb |
| Mounting | Bracket or flush mount |
| Warranty | Two-year limited manufacturer warranty |
Maximum depth and available frequencies depend on the selected transducer, installation, water conditions, and bottom composition.
Package Contents
- Simrad S2009 CHIRP fishfinder
- Protective sun cover
- Gimbal mounting bracket
- Bracket knobs
- Dash/flush-mounting hardware
- Four-pin power cable
- Bezel assembly
- Documentation
Installation note: A compatible transducer is required and sold separately. Nine-pin xSonic transducers may require an appropriate seven-to-nine-pin adapter cable.
