Simrad NSS9 evo3S Chartplotter Fishfinder for SALE
$ 1,550.00
Brand: SimradShop the Simrad NSS9 evo3S Chartplotter Fishfinder, C-MAP US charts, 1kW CHIRP sonar, dual sonar ports and built-in 10Hz GPS.

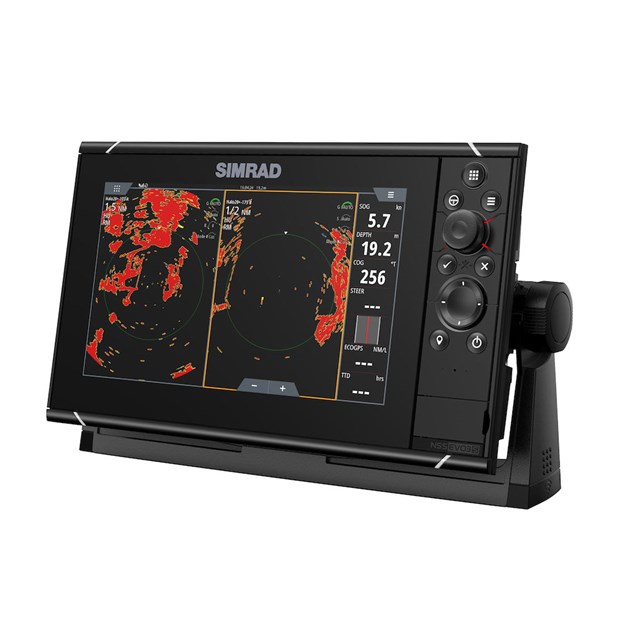

Simrad NSS9 evo3S Chartplotter Fishfinder
The Simrad NSS9 evo3S combines a bright 9-inch SolarMAX IPS touchscreen, responsive keypad controls, an iMX8 processor and built-in 1kW CHIRP sonar. Preloaded C-MAP US Enhanced charts, dual sonar ports, 10Hz GNSS and extensive marine networking make it a powerful navigation and fish-finding display for cruising, offshore fishing and sportfishing boats.
Key Features
- Bright 9-inch SolarMAX IPS display
- 1280 × 720 resolution and 1,200-nit brightness
- Multi-touch screen, keypad and rotary control dial
- High-performance iMX8 processor
- Built-in 1kW CHIRP echosounder
- Two 9-pin xSonic transducer ports
- Preloaded C-MAP US Enhanced charts
- Built-in 34-channel, 10Hz GNSS receiver
- Supports radar and autopilot integration
- Ethernet and NMEA 2000 networking
- NMEA 0183 through an optional adapter cable
- Integrated Wi-Fi and Bluetooth
- Two microSD card slots
- Bracket or flush-mount installation
- IPX6 and IPX7 water-resistance ratings
Technical Specifications
| Specification | Details |
|---|---|
| Display size | 9 inches |
| Display type | SolarMAX IPS, optically bonded |
| Resolution | 1280 × 720 pixels |
| Brightness | 1,200 nits |
| Viewing angles | 80° top, bottom, left and right |
| Controls | Multi-touch, keypad and rotary dial |
| Processor | High-performance iMX8 |
| Included cartography | C-MAP US Enhanced |
| Sonar output | Up to 1kW RMS CHIRP |
| Sonar connections | 2 × 9-pin xSonic ports |
| Transducer included | No |
| GPS receiver | Built-in 34-channel GNSS |
| Position update rate | 10Hz |
| Waypoints | Up to 6,000 |
| Routes | Up to 500; 100 points per route |
| Tracks | 50 tracks; up to 12,000 points each |
| Ethernet | 1 × 5-pin Ethernet port |
| NMEA 2000 | 1 × Micro-C port |
| NMEA 0183 | One input/output through optional cable |
| Wireless | Wi-Fi and Bluetooth |
| Memory-card slots | 2 × microSD, up to 32GB each |
| Video input | Two composite inputs with optional video/data cable |
| HDMI output | Not available on the 9-inch model |
| Supply voltage | 10–31.2V DC |
| Recommended fuse | 5A |
| Dimensions | 287 × 166 × 90mm / 11.30 × 6.55 × 3.50in |
| Display weight | Approximately 1.41kg / 3.11lb |
| Waterproof rating | IPX6 and IPX7 |
| Operating temperature | -15°C to 55°C / 5°F to 131°F |
| Mounting options | Supplied bracket or panel mounting |
| Manufacturer warranty | Two years |
What’s in the Box
- Simrad NSS9 evo3S multifunction display
- Protective sun cover
- U-shaped mounting bracket and knobs
- Panel-mounting kit
- Edge bezels
- Power cable
- Documentation pack
