Simrad GO9 XSE with CMAP Discover Charts and Active Imaging Transducer for SALE
$ 715,00
Brand: SimradBuy the Simrad GO9 XSE with CMAP Discover Charts and Active Imaging Transducer for CHIRP, SideScan, DownScan and GPS navigation.

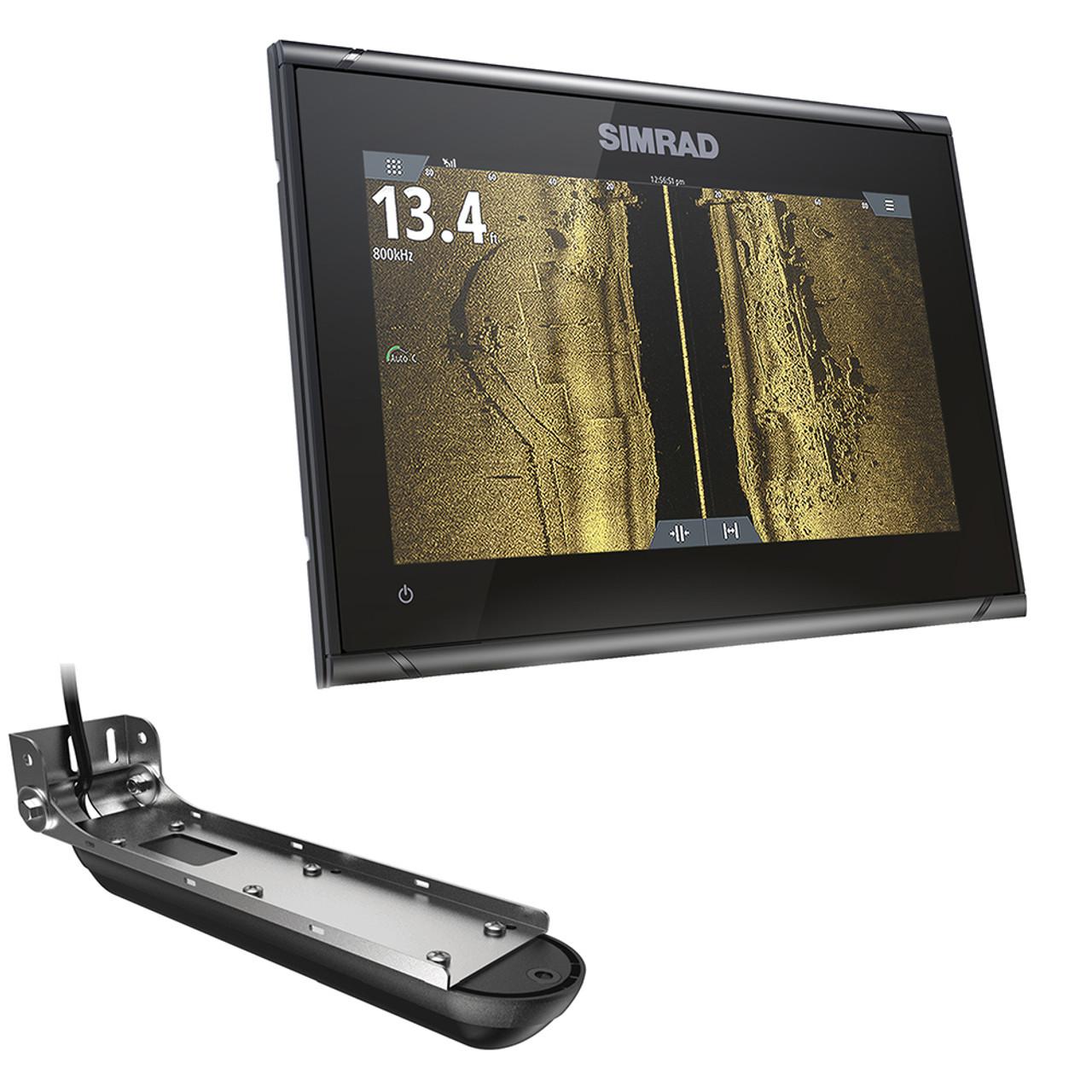

Simrad GO9 XSE with CMAP Discover Charts and Active Imaging Transducer
The Simrad GO9 XSE is a versatile 9-inch touchscreen chartplotter and fishfinder supplied with C-MAP DISCOVER charts and an Active Imaging 3-in-1 transducer. CHIRP sonar, SideScan, DownScan Imaging, FishReveal, built-in 10Hz GPS, Wi-Fi and NMEA 2000 connectivity make it ideal for sportboats, center consoles and smaller cruisers.
Key Features
- Bright 9-inch widescreen touchscreen
- 800 × 480 display resolution
- 1,200-nit sunlight-readable brightness
- C-MAP DISCOVER chart card included
- Active Imaging 3-in-1 transducer included
- CHIRP sonar, SideScan and DownScan Imaging
- FishReveal Smart Target View
- Built-in Broadband and CHIRP echosounder
- Built-in 10Hz GPS receiver
- C-MAP Easy Routing support
- ForwardScan compatible with an optional transducer
- Compatible with selected Simrad HALO radar systems
- NMEA 2000 vessel integration
- Integrated Wi-Fi and Bluetooth
- Wireless display mirroring
- Dual microSD card slots
- Bracket or panel-mount installation
- IPX6 and IPX7 waterproof ratings
Technical Specifications
| Specification | Details |
|---|---|
| Display size | 9 inches |
| Display type | Color widescreen LCD with LED backlight |
| Display resolution | 800 × 480 pixels |
| Screen brightness | 1,200 nits |
| Viewing angles | 80° top, bottom, left and right |
| User interface | Multi-touch touchscreen |
| Included charts | C-MAP DISCOVER chart card |
| Included transducer | Active Imaging 3-in-1 |
| Transducer mounting | Transom mount |
| Sonar functions | CHIRP, SideScan and DownScan Imaging |
| Sonar frequencies | 83/200kHz and 455/800kHz |
| FishReveal | Yes |
| ForwardScan support | Yes; optional transducer required |
| GPS | Built-in 10Hz receiver |
| Radar support | Compatible Simrad radar required |
| NMEA 2000 | 1 × Micro-C connection |
| Ethernet/radar port | 1 × 5-pin connection |
| Wireless | Built-in Wi-Fi and Bluetooth |
| Memory-card slots | 2 × microSD, up to 32GB each |
| Supply voltage | 10–17V DC |
| Typical power consumption | 12W |
| Maximum power consumption | 20W |
| Recommended fuse | 3A |
| Dimensions without bracket | 243 × 171 × 83mm |
| Dimensions without bracket | 9.56 × 6.71 × 3.26in |
| Display weight | 1.315kg / 2.9lb |
| Waterproof rating | IPX6 and IPX7 |
| Operating temperature | -15°C to 55°C / 5°F to 131°F |
| Mounting options | Gimbal bracket or panel mount |
| Warranty | Two-year limited warranty |
What’s in the Box?
- Simrad GO9 XSE 9-inch display
- Active Imaging 3-in-1 transom-mount transducer
- C-MAP DISCOVER chart card
- GO9 XSE protective sun cover
- Gimbal mounting bracket
- Dash-mounting kit
- Replacement edge bezel
- Four-pin power cable
- Installation documentation
Important: Radar, NMEA 2000 network components, autopilot equipment and ForwardScan transducer are not included.
