B&G Zeus SR-12 Chartplotter with US C-MAP Charts for SALE
$ 2,730.00
Brand: B&GBuy the B&G Zeus SR-12 Chartplotter with US C-MAP Charts with US C-MAP DISCOVER X charts, 12-inch touchscreen, eight-core processor and advanced sailing features.

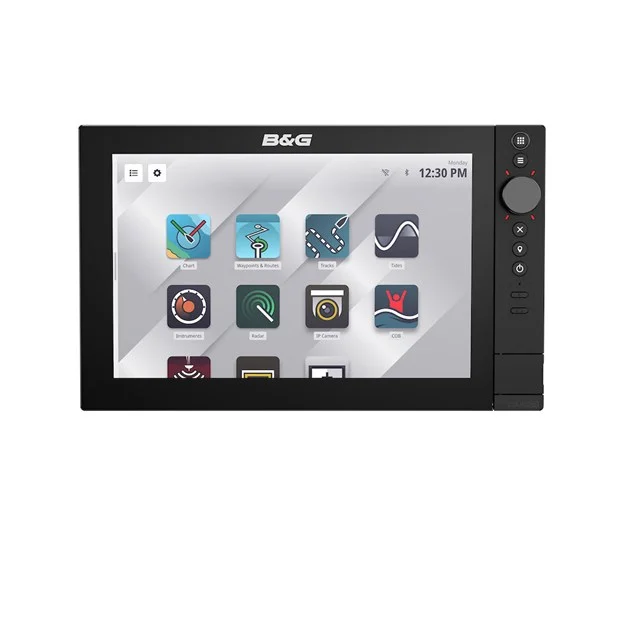

B&G Zeus SR-12 Chartplotter with US C-MAP Charts
Designed for sailors who require performance, visibility and dependable control, the B&G Zeus SR-12 combines a high-resolution 12-inch display with an eight-core processor for fast chart redraws and responsive operation.
The SolarMAX IPS display delivers more than 1,200 nits of brightness and wide viewing angles, helping keep charts and sailing data visible from different positions around the helm—even while wearing polarized sunglasses. Its hybrid interface combines touchscreen operation with buttons and a rotary controller, providing reliable control in rough or wet conditions.
Dedicated Sailing Modes
Zeus SR offers three purpose-built operating modes:
- Cruising Mode prioritizes straightforward navigation and essential vessel information.
- Racing Mode displays tactical sailing data and race-focused tools.
- Anchoring Mode provides clear position, depth and anchoring information.
Advanced B&G Sailing Features
Built-in B&G sailing tools help sailors make better tactical and navigational decisions:
- SailSteer™ displays wind, heading, layline and waypoint information in one clear view.
- LayLines show estimated port and starboard tack courses.
- StartLine assists with race-start positioning and timing.
- SailingTime calculates routes using wind data and expected sailing performance.
- Routes and waypoints support efficient voyage planning.
C-MAP DISCOVER X Charts Included
This US version includes a C-MAP DISCOVER X chart card covering the United States and Canada. DISCOVER X cartography provides detailed coastal information, full-color shaded depth contours, tides and currents, port information and other navigational data.
The integrated X-Chart Manager enables compatible chart updates and upgrades directly from the display. Optional C-MAP REVEAL X charts can add enhanced relief shading and satellite imagery where coverage is available.
Complete System Integration
The Zeus SR-12 connects with compatible B&G equipment through NMEA 2000, marine Ethernet and Wi-Fi. It can become the central control and information hub for:
- B&G HALO® radar
- NAC-series autopilots
- Triton² instruments
- Triton Edge and Hercules sailing processors
- Nemesis sailing displays
- Wind, depth, speed and heading sensors
- Compatible IP and thermal cameras
- CZone and DDS digital switching systems
Up to four compatible IP camera streams can be incorporated into the onboard system. The B&G App also supports route planning, chart management and synchronization with compatible mobile devices.
Network Sonar Support
This model does not contain an internal echosounder or direct transducer connection. Sonar functionality can be added through a compatible network sonar module such as the B&G S3100 or S5100, or shared from another compatible multifunction display.
B&G lists the Zeus SR series with an eight-core processor, SolarMAX IPS display, dedicated sailing modes and integration with radar, autopilot and sailing processors. B&G product information Navico Zeus SR announcement
Key Features
- 12-inch SolarMAX IPS touchscreen
- 1280 × 800-pixel display resolution
- More than 1,200-nit screen brightness
- Touchscreen, keypad and rotary-controller operation
- High-performance eight-core processor
- C-MAP DISCOVER X US and Canada charts included
- Compatible with optional C-MAP REVEAL X charts
- SailSteer, LayLines, StartLine and SailingTime features
- Dedicated Cruising, Racing and Anchoring modes
- Integrated 10 Hz GPS/GNSS receiver
- NMEA 2000, Gigabit Ethernet and Wi-Fi 5 connectivity
- Dual microSD/SDHC card slots
- Compatible with B&G HALO radar and NAC autopilots
- Supports compatible network sonar modules
- Supports up to four compatible IP cameras
- IPX6 and IPX7 water-resistance ratings
Technical Specifications
| Specification | Details |
|---|---|
| Display size | 12 inches |
| Display type | SolarMAX IPS color touchscreen |
| Resolution | 1280 × 800 pixels |
| Brightness | Greater than 1,200 nits |
| Viewing angle | 80° top, bottom, left and right |
| User controls | Multi-touch, physical buttons and rotary controller |
| Processor | Eight-core |
| Included charts | C-MAP DISCOVER X, United States and Canada |
| GPS | Internal 10 Hz, 32-channel GNSS receiver |
| Position accuracy | Approximately 3 metres under suitable conditions |
| NMEA 2000 | One Micro-C connection, 1 LEN |
| Networking | Gigabit Ethernet and marine Ethernet |
| Wireless | Wi-Fi 5 |
| Memory-card slots | Two microSD/SDHC slots |
| Video | HDMI input and compatible network-camera support |
| Radar compatibility | B&G HALO radar systems |
| Autopilot compatibility | B&G NAC-1, NAC-2, NAC-3 and NAC-D |
| Sonar | Network sonar only; no internal echosounder |
| Waypoints | Up to 10,000 |
| Routes | Up to 125 |
| Saved tracks | Up to 75 |
| Power supply | 12/24V DC |
| Operating voltage | 10–31.2V DC |
| Maximum power consumption | 28W |
| Recommended fuse | 5A |
| Water resistance | IPX6 and IPX7 |
| Operating temperature | −15°C to 55°C |
| Display dimensions | 338.9 × 208.4 × 84.8 mm |
| Dimensions with bracket | 367.8 × 232.8 × 84.8 mm |
| Weight | Approximately 2.8 kg |
| Warranty | Two years, subject to regional terms |
Package Contents
- B&G Zeus SR-12 multifunction display
- C-MAP DISCOVER X US and Canada chart card
- Sun cover
- Dash-mount gasket
- Power cable
- Fuse and fuse holder
- Metal mounting bracket
- Mounting knobs and hardware
- Rear-mount installation kit
- Product documentation
