Briggs & Stratton 104M02-0039-F1 Vertical Engine for SALE
$ 222,20
Brand: Briggs & Stratton EnginesBuy the Briggs & Stratton 104M02-0039-F1 Vertical Engine with ReadyStart, Mow Nā Stow, and a BBC stepped crankshaft.

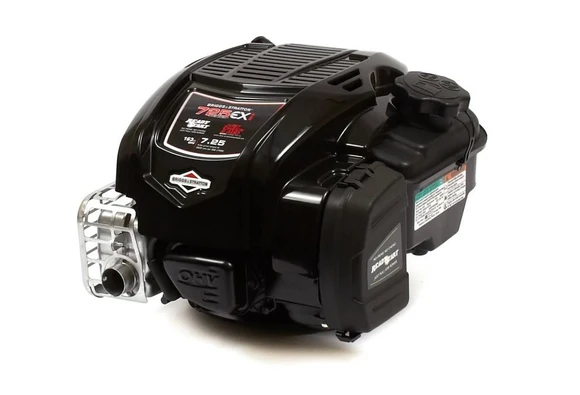

Briggs & Stratton 104M02-0039-F1 Vertical Engine
The Briggs & Stratton 104M02-0039-F1 Vertical Engine is a specialized 725EXi Series replacement engine designed for compatible equipment using a blade-brake-clutch-style stepped crankshaft. Its 163cc single-cylinder OHV design delivers 7.25 ft-lb of gross torque with a fixed maximum operating speed of 3,000 RPM.
Key Features
- Genuine Briggs & Stratton engine
- 725EXi Series
- 163cc single-cylinder OHV design
- 7.25 ft-lb gross torque
- ReadyStart no-prime, no-choke starting
- Recoil starter
- Specialized BBC stepped crankshaft
- Mow Nā Stow-compatible configuration
- Heavy cast-iron flywheel
- Dual-sealing paper air cleaner
- Lo-Tone muffler
- Fixed-speed control
- No CPSC flywheel brake
- Replaces 104M02-0083-F1
Specifications
| Specification | Details |
|---|---|
| Manufacturer | Briggs & Stratton |
| Model/MPN | 104M02-0039-F1 |
| Engine series | 725EXi |
| Engine type | Single-cylinder, four-cycle OHV |
| Displacement | 163cc |
| Gross torque | 7.25 ft-lb |
| Bore Ć stroke | 68.3mm Ć 44.45mm |
| Shaft orientation | Vertical |
| Crankshaft type | BBC stepped |
| Nominal shaft diameter | 7/8″ |
| Nominal shaft length | 3-5/32″ |
| Shaft interface | M14 Ć 1.5-6 external thread |
| Rotation from PTO side | Counterclockwise |
| Maximum RPM | 3,000 |
| Starting system | Recoil with ReadyStart |
| Speed control | Fixed |
| Flywheel | Heavy cast iron |
| CPSC engine brake | No |
| Oil capacity | 16 fl oz |
| Fuel-tank capacity | Approximately 1.09 qt |
| Air cleaner | Dual-sealing paper element |
| Governor | Mechanical |
| Charging system | None |
| Muffler | Included |
| Mow Nā Stow | Yes |
| UPC/GTIN | 047282798997 |
Replacement Model
- 104M02-0083-F1
