Briggs & Stratton 83132-1036-F1 Horizontal Engine for SALE
$ 224,40
Brand: Briggs & Stratton EnginesBuy the Briggs & Stratton 83132-1036-F1 Horizontal Engine with 3.5 HP, recoil start, and a 5/8-18 threaded crankshaft.

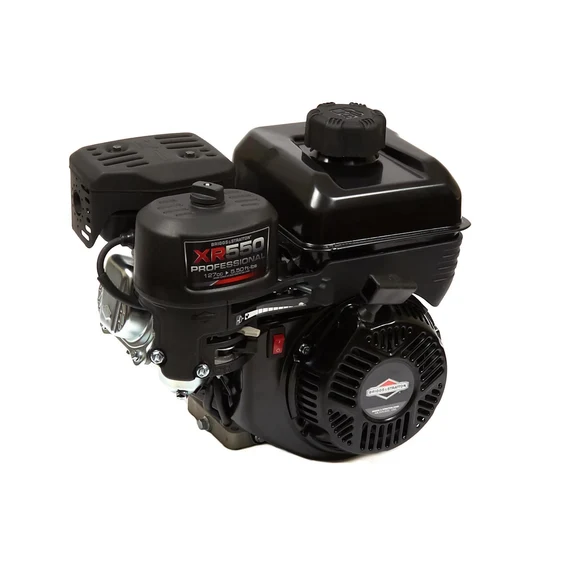

Briggs & Stratton 83132-1036-F1 Horizontal Engine
The Briggs & Stratton 83132-1036-F1 Horizontal Engine delivers dependable power for compatible pumps, tillers, compressors, log splitters, compactors, and other mid-duty utility equipment. Part of the XR550 Series, this 127cc single-cylinder OHV engine produces 3.5 HP and 5.5 ft-lb of gross torque, with a maximum operating speed of 4,000 RPM.
Key Features
- Genuine Briggs & Stratton engine
- XR550 Series
- 127cc single-cylinder OHV design
- 3.5 HP power rating
- 5.5 ft-lb gross torque
- Recoil starting system
- Magnetron electronic ignition
- Dura-Bore cast-iron cylinder sleeve
- Dual ball-bearing support
- Float-feed carburetor
- Maxi-Clean pleated-paper air filter
- DuraLube splash lubrication
- Mechanical governor
- Super Lo-Tone muffler
- Fuel tank and shutoff included
- Threaded horizontal crankshaft
Specifications
| Specification | Details |
|---|---|
| Manufacturer | Briggs & Stratton |
| Model/MPN | 83132-1036-F1 |
| Engine series | XR550 |
| Engine type | Single-cylinder, four-cycle OHV |
| Displacement | 127cc |
| Gross horsepower | 3.5 HP |
| Gross torque | 5.5 ft-lb |
| Bore × stroke | 2.44″ × 1.65″ |
| Shaft orientation | Horizontal |
| Crankshaft type | Externally threaded |
| Crankshaft diameter/thread | 5/8-18 |
| Crankshaft length | 2-27/64″ |
| Shaft rotation from PTO | Counterclockwise |
| PTO height | Approximately 4-11/64″ |
| Maximum RPM | 4,000 |
| Starting system | Recoil |
| Ignition | Magnetron electronic |
| Carburetor | Float feed |
| Governor | Mechanical |
| Oil capacity | 20 fl oz |
| Fuel-tank capacity | 2 qt |
| Low-oil shutdown | No |
| Charging system | None |
| Air cleaner | Pleated-paper dual element |
| Cylinder sleeve | Cast iron |
| Muffler | Included |
| UPC/GTIN | 024847867091 |
Replacement Model
- 83132-0036-B1
