Briggs & Stratton 19N132-0051-F1 Horizontal Engine for SALE
$ 740,30
Brand: Briggs & Stratton EnginesThe Briggs & Stratton 19N132-0051-F1 Horizontal Engine delivers 10 gross HP and 14.5 ft-lb of torque from its 306cc OHV design. It features recoil starting, a low-oil sensor, dual ball bearings and a 3/4-inch keyed shaft.

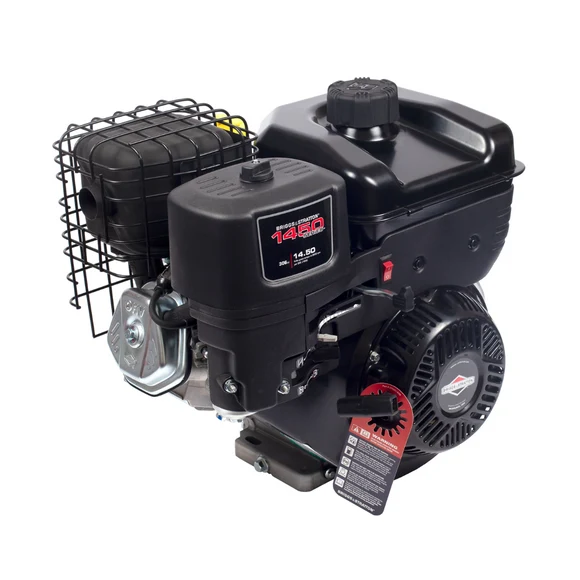

Briggs & Stratton 19N132-0051-F1 Horizontal Engine
The Briggs & Stratton 19N132-0051-F1 XR1450 Professional Series horizontal engine delivers dependable power for pressure washers, log splitters, compressors, tillers, pumps, blowers and other compatible utility equipment. Its 306cc single-cylinder OHV design produces 10 gross horsepower and 14.5 ft-lb of gross torque, providing strong performance for frequently used equipment.
Key Features
- XR1450 Professional Series engine
- 306cc single-cylinder OHV design
- Rated at 10 gross horsepower
- Produces 14.5 ft-lb gross torque
- Recoil starting system
- Magnetron electronic ignition
- Dual Clean air-filtration system
- Dura-Bore cast-iron cylinder sleeve
- Dual ball-bearing support
- PTO-side ball bearing
- Integrated low-oil sensor
- Fuel tank and Lo-Tone muffler included
- 3/4-inch keyed horizontal crankshaft
- Designed for demanding utility applications
Specifications
| Specification | Details |
|---|---|
| Brand | Briggs & Stratton |
| Model | 19N132-0051-F1 |
| Series | XR1450 Professional |
| Engine type | Single-cylinder, four-stroke OHV |
| Shaft orientation | Horizontal |
| Displacement | 306cc |
| Gross horsepower | 10 HP |
| Gross torque | 14.5 ft-lb |
| Maximum speed | 3,750 RPM |
| Starting system | Recoil |
| Charging system | None |
| Crankshaft diameter | 3/4 in. |
| Crankshaft length | 2-1/2 in. |
| Keyway | 3/16 in. |
| Crankshaft end | Drilled and tapped 3/8-24 |
| PTO height | Approximately 5-1/4 in. |
| PTO rotation | Counterclockwise when viewed from PTO |
| Ignition | Magnetron electronic |
| Governor | Mechanical |
| Air cleaner | Paper element with foam pre-cleaner |
| Cylinder sleeve | Dura-Bore cast iron |
| Bearings | Dual ball bearings |
| Lubrication | DuraLube splash lubrication |
| Oil capacity | 37 fl. oz. |
| Low-oil sensor | Yes |
| Fuel-tank capacity | Approximately 3.2 qt. |
| Fuel tank | Included |
| Muffler | Lo-Tone muffler included |
| Controls | Manual throttle and choke |
| Fuel type | Gasoline |
| EPA compliant | Yes |
| Approximate weight | 69 lb. |
| Warranty | 2 years consumer / 1 year commercial |
