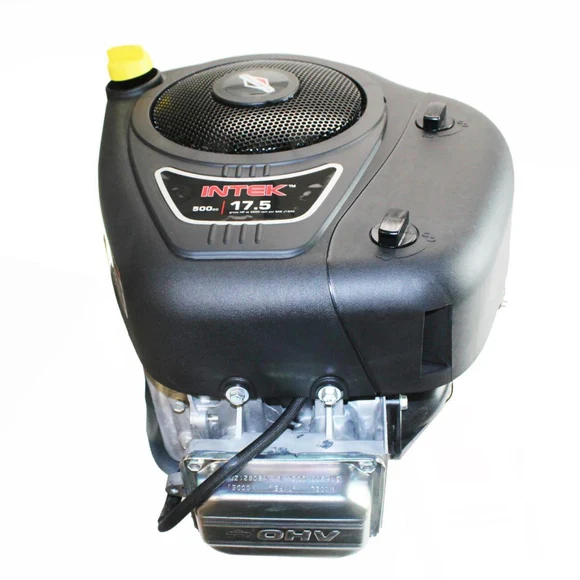

Briggs & Stratton 31R977-0054-G1 Vertical INTEK Engine for SALE
$ 603,90
Brand: Briggs & Stratton EnginesBriggs & Stratton 31R977-0054-G1 Vertical INTEK Engine with 17.5 gross HP, approximately 500cc displacement, electric start, 9-amp alternator, pressure lubrication, oil filter, fuel pump, and a 1-inch by 3-5/32-inch crankshaft.
Briggs & Stratton 31R977-0054-G1 Vertical INTEK Engine
The Briggs & Stratton 31R977-0054-G1 Intek EX1750 Engine provides dependable replacement power for compatible riding lawn mowers, lawn tractors, and outdoor equipment. Its approximately 500cc single-cylinder OHV design delivers 17.5 gross horsepower while promoting efficient combustion, cooler operation, and extended valve life.
Key Features
- Intek/EX Series vertical engine
- 17.5 gross horsepower
- Approximately 500cc displacement
- Single-cylinder OHV configuration
- 12-volt electric starting
- Regulated 9-amp alternator
- Full-pressure lubrication
- Replaceable engine-oil filter
- Dura-Bore cast-iron cylinder sleeve
- Magnetron electronic ignition
- Automatic Choke-A-Matic system
- Float carburetor with fuel-shutoff solenoid
- Integrated pulse fuel pump
- Heavy cast-iron flywheel
Specifications
| Specification | Details |
|---|---|
| Brand | Briggs & Stratton |
| Model | 31R977-0054-G1 |
| Series | Intek / EX1750 |
| Engine type | Single-cylinder, four-stroke OHV |
| Shaft orientation | Vertical |
| Displacement | 500cc–501cc |
| Gross horsepower | 17.5 HP |
| Starting system | 12V electric start |
| Charging system | 9 amp |
| Maximum speed | 3,300 RPM |
| Crankshaft diameter | 1 inch |
| Crankshaft length | 3-5/32 inches |
| Shaft keyway | 1/4 inch |
| Shaft end | Drilled and tapped 7/16-20 |
| Bore × stroke | 3.56 × 3.06 inches |
| Oil capacity | 48 oz / 1.5 qt |
| Lubrication | Full-pressure |
| Oil pump | Included |
| Oil filter | Included |
| Cylinder sleeve | Dura-Bore cast iron |
| Ignition | Magnetron electronic |
| Carburetor | Float type |
| Fuel shutoff | Carburetor solenoid |
| Choke | Automatic Choke-A-Matic |
| Governor | Mechanical |
| Fuel pump | Included |
| Fuel tank | Not included |
| Muffler | Not included |
| Cooling system | Air-cooled |
| Replaces | 31R977-0052-G1 and 31R977-0027-G1 |
| Warranty | 2-year manufacturer warranty |
