Briggs & Stratton 21R702-0087-G1 Vertical Engine for SALE
$ 598,40
Brand: Briggs & Stratton EnginesBriggs & Stratton 21R702-0087-G1 Vertical Engine with 10.5 gross HP, recoil start, cast-iron cylinder sleeve, electronic ignition, included muffler, and a 1-inch by 3-5/32-inch keyed crankshaft.

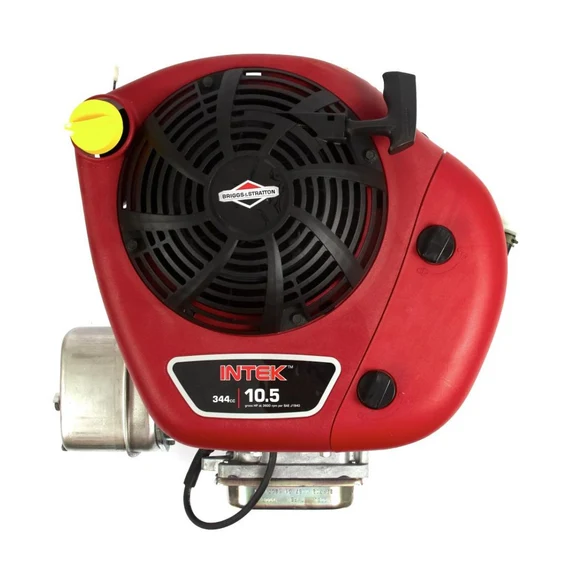

Briggs & Stratton 21R702-0087-G1 Vertical Engine
The Briggs & Stratton 21R702-0087-G1 is a dependable vertical-shaft replacement engine designed for compatible riding mowers, lawn tractors, and outdoor power equipment. Its 344cc single-cylinder OHV design produces 10.5 gross horsepower while encouraging efficient combustion, cooler operation, and longer valve life.
Key Features
- Intek/PowerBuilt vertical-shaft engine
- 344cc single-cylinder OHV design
- 10.5 gross horsepower
- Manual recoil starting
- Dura-Bore cast-iron cylinder sleeve
- Electronic ignition system
- Float-style carburetor
- Cartridge-style air cleaner
- Mechanical governor
- Air-cooled operation
- Muffler included
- No battery or electric-start wiring required
Specifications
| Specification | Details |
|---|---|
| Brand | Briggs & Stratton |
| Model | 21R702-0087-G1 |
| Series | Intek / PowerBuilt |
| Engine type | Single-cylinder, four-stroke OHV |
| Shaft orientation | Vertical |
| Displacement | 344cc |
| Gross horsepower | 10.5 HP |
| Starting system | Recoil start |
| Crankshaft diameter | 1 inch |
| Crankshaft length | 3-5/32 inches |
| Shaft keyway | 1/4 inch |
| Shaft end | Drilled and tapped 7/16-20 |
| Shaft rotation | Counterclockwise from PTO side |
| Mounting bolt circle | 10 inches |
| Maximum speed | 3,600 RPM |
| Oil capacity | 48 oz / 1.5 qt |
| Lubrication | Splash |
| Cylinder sleeve | Dura-Bore cast iron |
| Compression ratio | 8.5:1 |
| Ignition | Electronic |
| Carburetor | Float type |
| Governor | Mechanical |
| Air cleaner | Cartridge style |
| Choke control | Manual |
| Cooling system | Air-cooled |
| Fuel type | Gasoline |
| Fuel pump | Not included |
| Fuel tank | Not included |
| Muffler | Included |
| Low-oil alert/shutdown | No |
| Superseded by | 21R702-0065-G1 |
