Briggs & Stratton 386447-3321-G1 Horizontal Vanguard Engine for Multiquip Trowel for SALE
$ 1.366,20
Brand: Briggs & Stratton EnginesBuy the Briggs & Stratton 386447-3321-G1 Horizontal Vanguard Engine for Multiquip Trowel with a nine-tooth splined shaft for compatible Multiquip power trowels.

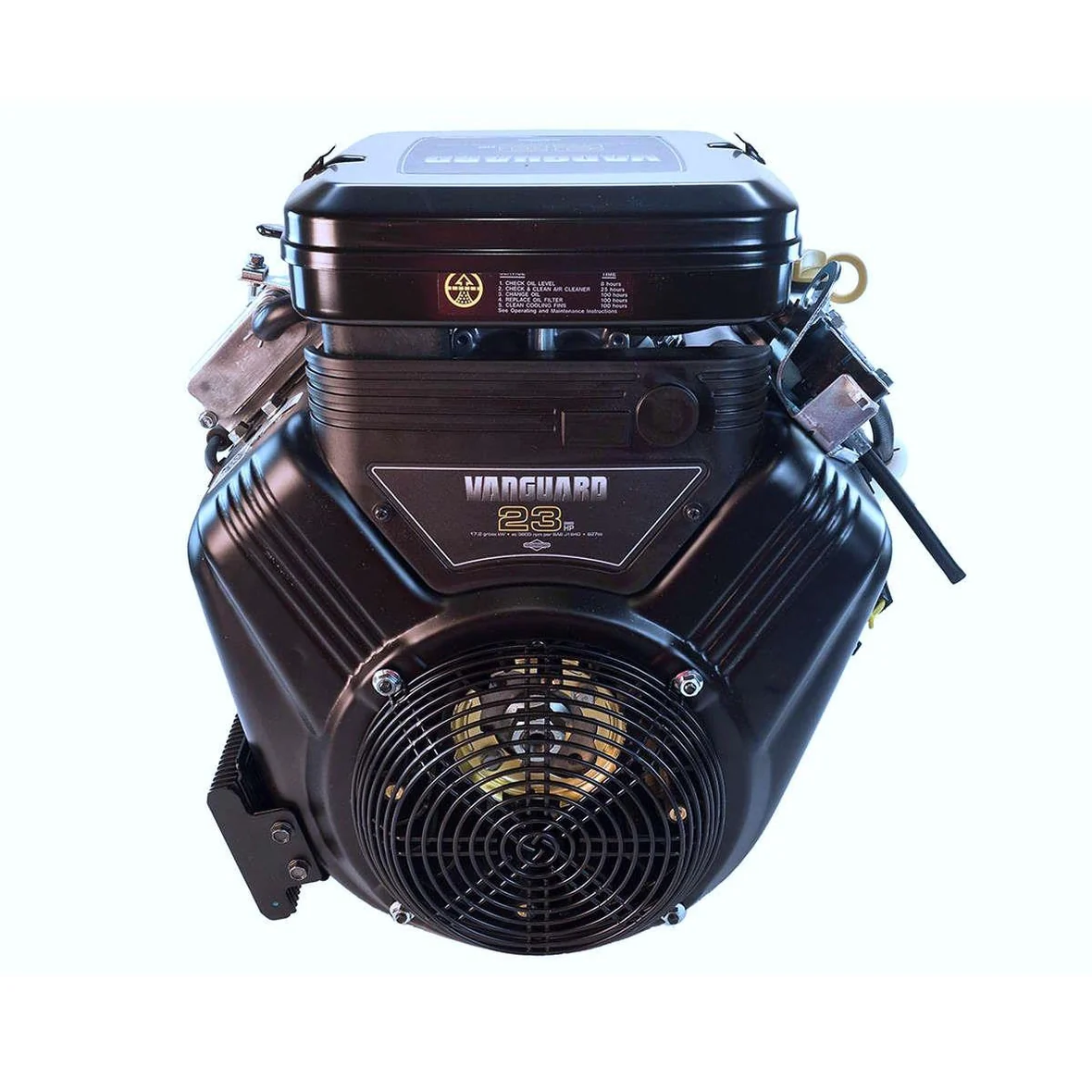

Briggs & Stratton 386447-3321-G1 Horizontal Vanguard Engine for Multiquip Trowel
The Briggs & Stratton 386447-3321-G1 Horizontal Vanguard Engine is specially configured for compatible Multiquip ride-on power trowels. Its 627cc V-Twin design produces 23 gross horsepower, providing dependable commercial-grade power for demanding concrete-finishing applications.
Key Features
- Designed for compatible Multiquip power trowels
- Commercial-grade Vanguard V-Twin construction
- 23 gross HP output
- 627cc displacement
- Horizontal engine configuration
- 1-3/8″ nine-tooth splined crankshaft
- Designed for a hydraulic-pump connection
- Electric starting system
- Dual-Clean air filtration
- Full-pressure lubrication
- Spin-on oil filter
- Integrated oil cooler
- Fuel pump included
- 20-amp charging system
- Oil-pressure switch for an hour meter
- Three-year commercial limited warranty
Specifications
| Specification | Details |
|---|---|
| Brand | Briggs & Stratton |
| Engine series | Vanguard |
| Model number | 386447-3321-G1 |
| Engine configuration | V-Twin OHV |
| Shaft orientation | Horizontal |
| Power rating | 23 gross HP |
| Displacement | 627cc |
| Bore | 2.97″ / 75.44 mm |
| Stroke | 2.76″ / 70.10 mm |
| Maximum engine speed | 3,600 RPM |
| Starting system | Electric start |
| Crankshaft diameter | 1-3/8″ |
| Crankshaft connection | Nine-tooth spline |
| Crankshaft application | Hydraulic pump |
| Carburetor | Float type |
| Air cleaner | Dual-Clean paper filter with foam pre-cleaner |
| Lubrication system | Full pressure |
| Oil filter | Spin-on oil filter |
| Oil cooler | Included |
| Oil capacity | 48 fl oz / approximately 1.42 L |
| Fuel pump | Included |
| Fuel tank | Not included |
| Charging system | 20 amp |
| Oil-pressure switch | Included for hour-meter connection |
| Emissions compliance | EPA compliant |
| Intended application | Compatible Multiquip power trowel |
| Limited warranty | Three-year commercial use |
