Honda GX270 RHE4 Horizontal Engine with 2:1 Gear Reduction and Electric Start for SALE
$ 792,00
Brand: Honda EnginesBuy the Honda GX270 RHE4 Horizontal Engine with 2:1 Gear Reduction and Electric Start with 2:1 gear reduction, clutch, electric start, 1-amp charging and a 22 mm output shaft.

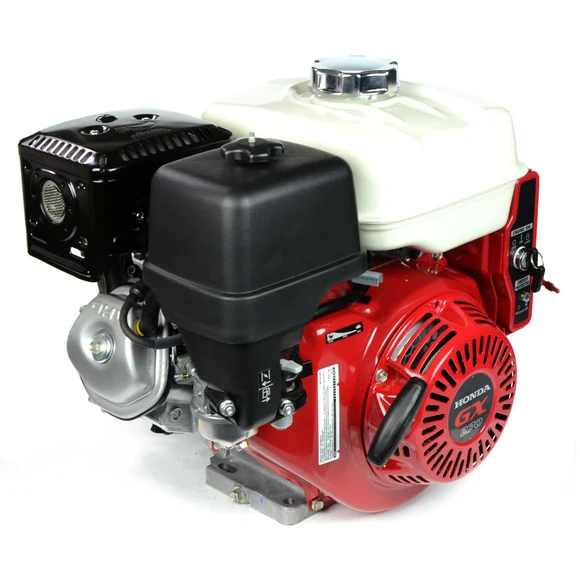

Honda GX270 RHE4 Horizontal Engine with 2:1 Gear Reduction and Electric Start
The Honda GX270 RHE4 Horizontal Engine is a commercial-grade power unit engineered for equipment requiring lower output speed, increased usable torque, and convenient electric starting. Its integrated 2:1 gear reduction with clutch reduces the output speed to approximately 1,800 rpm when the engine operates at 3,600 rpm, making it suitable for concrete equipment, agricultural machinery, compressors, and other heavy-duty applications.
Key Features
- Commercial-grade 270cc Honda GX engine
- Horizontal crankshaft orientation
- Integrated 2:1 gear reduction with clutch
- Electric and recoil starting
- 1-amp battery charging system
- Digital CDI ignition
- Cast-iron cylinder sleeve
- Dual-element air cleaner
- Mechanical centrifugal governor
- Automatic decompression system
Specifications
| Specification | Details |
|---|---|
| Model | Honda GX270 RHE4 |
| Engine code | GX270UT2RHE4 |
| Engine type | Air-cooled four-stroke OHV |
| Cylinders | Single cylinder |
| Displacement | 270cc |
| Net power | 8.4 HP at 3,600 rpm |
| Maximum torque | 14.1 lb-ft (19.1 Nm) at 2,500 rpm |
| Bore × stroke | 77 × 58 mm |
| Compression ratio | 8.5:1 |
| Crankshaft orientation | Horizontal |
| Output shaft | 22 mm × 2-23/64″ |
| Shaft tapping | M8 × 1.25 |
| Gear reduction | 2:1 with clutch |
| Approximate output speed | 1,800 rpm at 3,600 engine rpm |
| Starting system | Electric and recoil |
| Charging system | 1 amp |
| Ignition | Digital CDI with variable timing |
| Carburetor | Float type |
| Lubrication | Splash |
| Oil capacity | 1.1 liters |
| Fuel tank capacity | Approximately 5.3 liters |
| Fuel | Unleaded gasoline, 86 octane or higher |
