Honda GX630 QZB2 Horizontal V-Twin Engine for SALE
$ 1.353,00
Brand: Honda EnginesBuy the Honda GX630 QZB2 Horizontal V-Twin Engine with 20.8 HP, electric start, 17-amp charging, control box and a 1-inch keyed shaft.

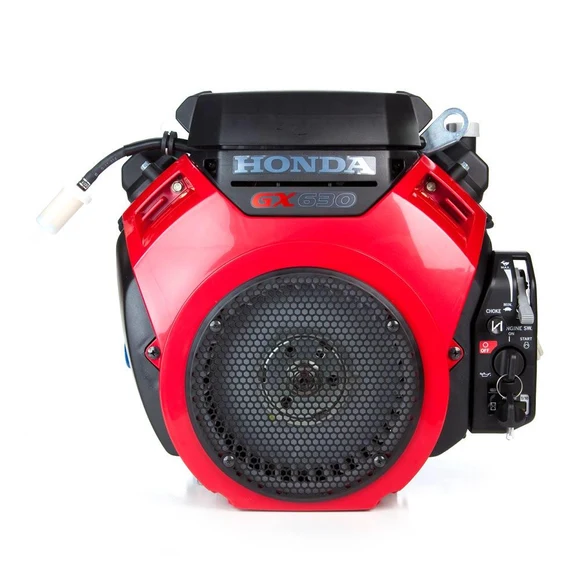

Honda GX630 QZB2 Horizontal V-Twin Engine
The Honda GX630 QZB2 Horizontal V-Twin Engine is a commercial-grade power unit designed for pressure washers, generators, pumps, construction equipment, agricultural machinery, and other demanding applications. Its 688cc air-cooled four-stroke OHV V-twin design produces 20.8 net horsepower at 3,600 rpm and 35.6 lb-ft of torque at 2,500 rpm.
Key Features
- Commercial-grade 688cc OHV V-twin
- 20.8 net horsepower
- Electric start
- 17-amp charging system
- Control box with key switch
- Manual throttle and choke controls
- Perpendicular spin-on oil filter
- Full-pressure lubrication
- Digital CDI with variable timing
- Honda Oil Alert system
Specifications
| Specification | Details |
|---|---|
| Model | Honda GX630 QZB2 |
| Engine code | GX630RHQZB2 |
| Engine type | Air-cooled four-stroke OHV V-twin |
| Cylinders | Two |
| Displacement | 688cc |
| Net power | 20.8 HP (15.5 kW) at 3,600 rpm |
| Maximum torque | 35.6 lb-ft (48.3 Nm) at 2,500 rpm |
| Bore × stroke | 78 × 72 mm |
| Compression ratio | 9.3:1 |
| Crankshaft orientation | Horizontal |
| Crankshaft size | 1″ × 2-29/32″ |
| Shaft type | Straight and keyed |
| Keyway | 1/4″ |
| Shaft tapping | 3/8-24 |
| PTO rotation | Counterclockwise from PTO side |
| Starting system | Electric |
| Charging system | 17 amp |
| Control box/key switch | Included |
| Throttle and choke | Manual controls included |
| Ignition | Digital CDI with variable timing |
| Fuel system | Two-barrel carburetor |
| Governor | Mechanical |
| Lubrication | Full-pressure |
| Oil filter | Spin-on, perpendicular to crankshaft |
| Oil capacity | 2.0 liters |
| Air cleaner | Dual element |
| Dry weight | Approximately 96.8 lb (44 kg) |
| Fuel tank | Not included |
| Muffler | Not included |
