Kohler CH270-3021 Horizontal Command PRO Engine for SALE
$ 558,80
Brand: Kohler EnginesShop the Kohler CH270-3021 Horizontal Command PRO Engine with 208cc displacement, electric and recoil start, 3-amp alternator and keyed shaft.

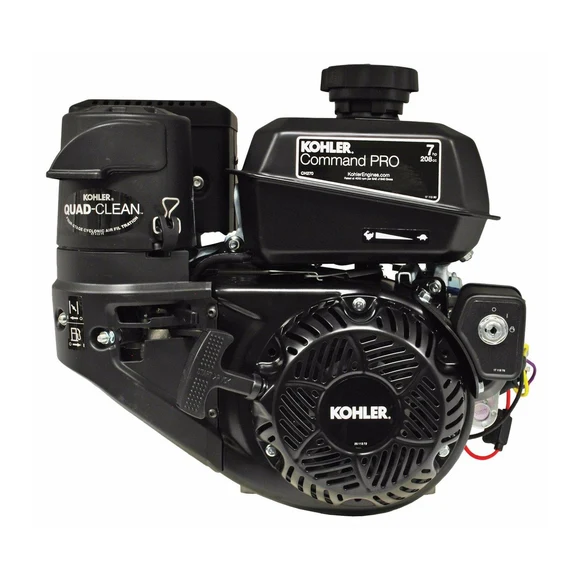

Kohler CH270-3021 Horizontal Command PRO Engine
The Kohler CH270-3021 Horizontal Command PRO Engine delivers commercial-grade performance with the convenience of electric starting. Its 208cc, single-cylinder OHV design produces up to 7 HP and approximately 10.5 lb-ft of peak torque, providing dependable power for compatible construction, agricultural, and outdoor power equipment.
Key Features
- 7 HP commercial-grade Command PRO engine
- 208cc single-cylinder OHV design
- 12-volt electric starting system
- Recoil backup starter
- 3-amp battery-charging alternator
- 3/4-inch keyed horizontal crankshaft
- Quad-Clean™ four-stage cyclonic air cleaner
- Oil Sentry™ low-oil shutdown
- Electronic ignition
- Cast-iron cylinder liner
- Forged and hardened steel crankshaft
- Dual ball bearings
- Large-capacity metal fuel tank
- Oversized muffler with heat shield
- Manual throttle and choke controls
Specifications
| Specification | Details |
|---|---|
| Brand | Kohler |
| Series | Command PRO |
| Model | CH270 |
| Specification Number | CH270-3021 |
| Manufacturer Part Number | PA-CH270-3021 |
| UPC/GTIN | 0885612019264 |
| Engine Type | Four-cycle, single-cylinder OHV |
| Shaft Orientation | Horizontal |
| Fuel Type | Unleaded gasoline |
| Cooling System | Forced air-cooled |
| Maximum Power | 7 HP (5.2 kW) |
| Rated Engine Speed | 3,600 RPM |
| Displacement | 208cc (12.7 cu. in.) |
| Peak Torque | Approximately 10.5 lb-ft (14.2 Nm) at 3,000 RPM |
| Bore | 70 mm (2.8 in.) |
| Stroke | 54 mm (2.1 in.) |
| Compression Ratio | 8.5:1 |
| Crankshaft Diameter | 3/4 in. |
| Crankshaft Length | Approximately 2-3/8 in. |
| Shaft Configuration | Straight and keyed |
| Keyway | 3/16 in. |
| Shaft End | 5/16″-24 drilled and tapped |
| Starting System | 12V electric and recoil start |
| Alternator | 3 amp |
| Battery | Not included |
| Ignition System | Electronic magneto |
| Air Cleaner | Quad-Clean™ four-stage cyclonic |
| Governor | Mechanical |
| Throttle Control | Manual; remote-throttle capable |
| Choke Control | Manual |
| Low-Oil Protection | Oil Sentry™ automatic shutdown |
| Lubrication System | Splash |
| Oil Capacity | Approximately 0.63 US qt (0.6 L) |
| Recommended Oil | SAE 10W-30 for general conditions |
| Fuel Tank Capacity | Approximately 4.0 L (4.2 US qt) |
| Muffler | Included |
| Rotation | Counterclockwise viewed from PTO side |
| Maximum Operating Angle | 25° with proper oil level |
| Approximate Dimensions | 12.7 × 15.2 × 14.2 in. |
| Approximate Engine Weight | 43 lb |
| Listed Shipping Weight | Approximately 57.9 lb |
| Warranty | Three-year manufacturer warranty, subject to terms |
