Kohler CH270-3153 Horizontal Command PRO Engine for SALE
$ 402,60
Brand: Kohler EnginesBuy the Kohler CH270-3153 Horizontal Command PRO Engine with 7 HP, recoil start, variable speed, and a 20mm × 53mm horizontal crankshaft.

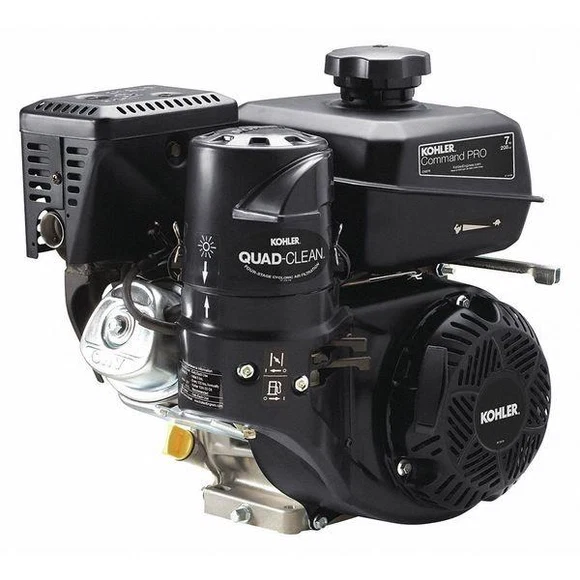

Kohler CH270-3153 Horizontal Command PRO Engine
The Kohler CH270-3153 Horizontal Command PRO Engine delivers professional-grade power for compatible pumps, pressure washers, tillers, compressors, compactors, generators, construction equipment, and other general-purpose machinery. Unlike SAE-shaft CH270 variants, this model uses a metric crankshaft, making careful compatibility verification essential.
Key Features
- 208cc four-cycle OHV engine
- 7 HP maximum output
- Up to 10.5 ft-lb of torque
- Metric 20mm × 53mm horizontal crankshaft
- M8 × 1.25 drilled and tapped shaft end
- Variable-speed operation
- Recoil-only starting system
- Electronic ignition
- Mechanical governor
- Quad-Clean four-stage cyclonic air cleaner
- Oil Sentry low-oil protection
- Forged-steel crankshaft
- Cast-iron cylinder liner
- Dual ball bearings
- Large-capacity fuel tank
- Commercial-grade Command PRO construction
Specifications
| Specification | Details |
|---|---|
| Brand | Kohler |
| Model | CH270-3153 |
| Manufacturer part number | PA-CH270-3153 |
| Engine series | Command PRO |
| Specification designation | E09 Marketing Basic |
| Engine type | Four-cycle OHV gasoline engine |
| Cylinder configuration | Single cylinder |
| Shaft orientation | Horizontal |
| Displacement | 208cc (12.7 cu. in.) |
| Maximum power | 7 HP (5.2 kW) |
| Maximum torque | 10.5 ft-lb (14.2 Nm) |
| Peak-torque speed | Approximately 3,000 RPM |
| Maximum rated speed | Up to 4,000 RPM |
| Bore × stroke | 70 × 54 mm (2.8 × 2.1 in.) |
| Compression ratio | 8.5:1 |
| Crankshaft diameter | 20mm |
| Crankshaft length | 53mm |
| Crankshaft end | Drilled and tapped |
| Crankshaft-end thread | M8 × 1.25 |
| Starting system | Recoil start only |
| Speed control | Variable speed |
| Governor | Mechanical |
| Ignition system | Electronic magneto |
| Fuel system | Carburetor with fixed main jet |
| Fuel type | Unleaded gasoline |
| Fuel-tank capacity | Approximately 4.2 US qt. (4.0 L) |
| Cooling system | Forced air |
| Lubrication system | Splash |
| Oil capacity | Approximately 0.63 US qt. (0.6 L) |
| Low-oil protection | Oil Sentry |
| Air cleaner | Quad-Clean four-stage cyclonic |
| Cylinder liner | Cast iron |
| Crankshaft construction | Forged steel |
| Bearings | Dual ball bearings |
| Dimensions | Approximately 12.7 × 15.2 × 14.2 in. |
| Dry weight | Approximately 38.7 lb. |
