Kohler CH680-3094 Horizontal Engine, Replaces PA-76582 for SALE
$ 1.577,40
Brand: Kohler EnginesBuy Kohler CH680-3094 Horizontal Engine, Replaces PA-76582, a 22.5 HP 674cc Command PRO V-Twin with electric start and 15-amp charging. Replaces PA-76582.

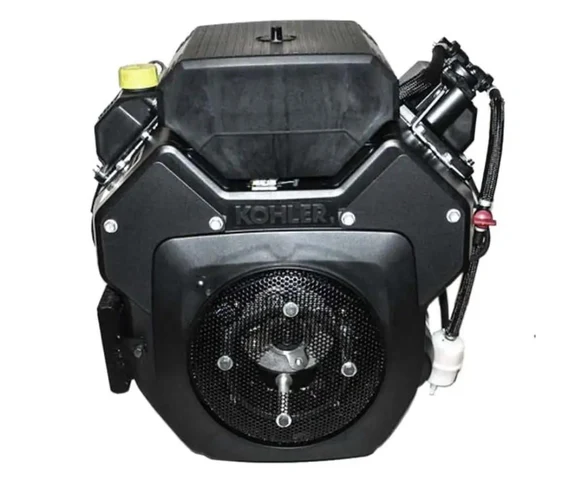

Kohler CH680-3094 Horizontal Engine, Replaces PA-76582
Kohler CH680-3094 Horizontal Engine, Replaces PA-76582 is a dependable 22.5 HP Command PRO V-Twin gasoline engine designed for commercial and demanding outdoor power equipment. With 674cc displacement, overhead-valve technology, cast-iron cylinder liners, and full-pressure lubrication, the CH680-3094 delivers strong performance and durability for demanding applications.
Key Features
- 22.5 HP Kohler Command PRO engine
- 674cc V-Twin gasoline engine
- Horizontal shaft configuration
- OHV design
- Cast-iron cylinder liners
- Electric start
- 15-amp alternator/stator
- Full-pressure lubrication with full-flow oil filter
- Fuel pump
- Oil cooler
- 1-1/2″ × 3/16″ crankshaft
- Designed for compatible Kubota equipment
- Suitable for Kubota ZG23 applications
- Replaces PA-76582 / CH23-76582
Specifications
| Specification | Details |
|---|---|
| Brand | Kohler |
| Model | CH680-3094 |
| OEM Part Number | PA-CH680-3094 |
| Replaces | PA-76582 / CH23-76582 |
| Engine Series | Command PRO |
| Engine Type | 4-Cycle Gasoline |
| Cylinder Configuration | V-Twin |
| Valve Configuration | OHV |
| Displacement | 674cc / 41.1 cu. in. |
| Maximum Power | 22.5 HP @ 3,600 RPM |
| Maximum Torque | 36.8 ft-lb |
| Cooling | Air Cooled |
| Mounting | Horizontal |
| Starting System | Electric Start |
| Charging System | 15 Amp |
| Lubrication | Full Pressure |
| Oil Capacity | 2.0 US qt / 1.9 L |
| Fuel Pump | Yes |
| Oil Cooler | Yes |
| Crankshaft | 1-1/2″ × 3/16″ |
| Shaft Extension | None |
| Fuel Tank | Not Included |
| Muffler | Not Included |
| Length | 14″ |
| Width | 17.7″ |
| Height | 19″ |
| Dry Weight | Approximately 107 lb |
| Application | Kubota |
| Known Equipment | Kubota ZG23 |
| Warranty | 3-Year Manufacturer Warranty* |
