Kohler CH680-3043 Horizontal Engine, Replaces PA-76628 for SALE
$ 1.584,00
Brand: Kohler EnginesBuy Kohler CH680-3043 Horizontal Engine, Replaces PA-76628, a 22.5 HP 674cc Command PRO V-Twin with electric start and 15/20-amp charging. Replaces PA-76628.

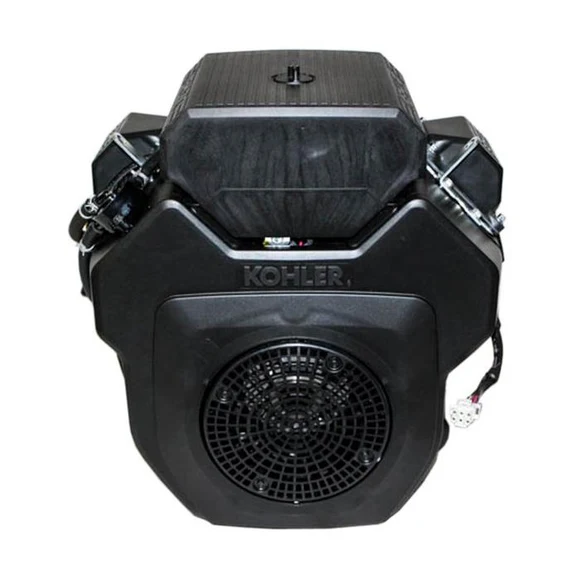

Kohler CH680-3043 Horizontal Engine, Replaces PA-76628
Kohler CH680-3043 Horizontal Engine, Replaces PA-76628 is a powerful 22.5 HP Command PRO V-Twin gasoline engine designed specifically for demanding commercial applications, including Miller Electric welders. With 674cc displacement, OHV technology, cast-iron cylinder liners, and full-pressure lubrication, this engine delivers reliable power and durability in heavy-duty operating environments.
Key Features
- 22.5 HP Kohler Command PRO engine
- 674cc V-Twin gasoline engine
- Horizontal shaft configuration
- OHV design
- Cast-iron cylinder liners
- 12-volt electric start
- 15/20-amp charging system
- 1″ × 3-11/16″ crankshaft
- Externally threaded 1″-14 UNS-2 shaft
- Pulse fuel pump
- Full-pressure lubrication
- Full-flow oil filter
- Standard air cleaner
- Miller Electric-specific configuration
- Replaces PA-76628
- Supersedes CH23S-76628
Specifications
| Specification | Details |
|---|---|
| Brand | Kohler |
| Model | CH680-3043 |
| OEM Part Number | PA-CH680-3043 |
| Replaces | PA-76628 |
| Previous Model | CH23S-76628 |
| Engine Series | Command PRO |
| Application | Miller Electric |
| Engine Type | 4-Cycle Gasoline |
| Cylinder Configuration | V-Twin / Twin Cylinder |
| Valve Configuration | OHV |
| Displacement | 674cc / 41.1 cu. in. |
| Gross Power | 22.5 HP @ 3,600 RPM |
| Peak Torque | 36.8 ft-lb |
| Bore | 3.15 in. / 80 mm |
| Stroke | 2.64 in. / 67 mm |
| Compression Ratio | 8.5:1 |
| Cooling | Air Cooled |
| Shaft Orientation | Horizontal |
| Crankshaft Diameter | 1 inch |
| Crankshaft Length | Approx. 3-11/16 inches |
| Crankshaft Thread | 1″-14 UNS-2 |
| Starting System | 12-Volt Electric Start |
| Charging System | 15/20 Amp |
| Ignition | Electronic |
| Carburetor | Two-Barrel |
| Fuel Pump | Pulse Type |
| Lubrication | Full Pressure with Full-Flow Filter |
| Oil Capacity | 2.0 US qt / 1.9 L |
| Cylinder Liners | Cast Iron |
| Fuel | Gasoline |
| Air Cleaner | Standard |
| Governor | Mechanical |
| Length | 14 inches |
| Width | 17.7 inches |
| Height | 19 inches |
| Dry Weight | Approximately 107 lb |
| Common Application | Miller Electric Welders |
