Kohler CH680-3165 Horizontal Command PRO Engine for SALE
$ 1.449,80
Brand: Kohler EnginesShop the Kohler CH680-3165 Horizontal Command PRO Engine with electric start, 15-amp charging and a 1-1/8 x 4.30-inch shaft for select Toro equipment.

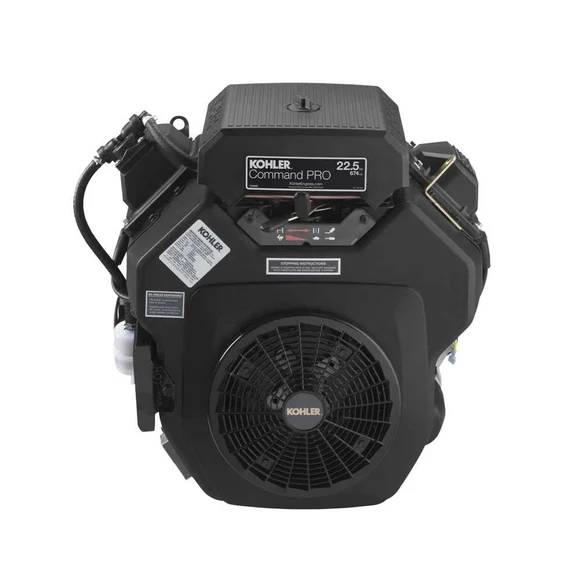

Kohler CH680-3165 Horizontal Command PRO Engine
The Kohler CH680-3165 Command PRO Horizontal Engine is a commercial-grade replacement engine designed for select Toro equipment applications. Its heavy-duty V-twin construction makes it suitable for professional turf equipment and other machinery requiring dependable horizontal-shaft power.
Key Features
- Commercial-duty Kohler Command PRO engine
- Toro replacement specification
- 674cc V-twin OHV design
- Rated at 22.5 horsepower
- Approximately 36.8 ft-lb of peak torque
- 12-volt electric starter
- 15-amp regulated charging system
- Heavy flywheel
- Full-pressure lubrication
- Full-flow spin-on oil filter
- Integrated oil cooler
- Dual-element flat air cleaner
- Cast-iron cylinder liners
- Mechanical fuel pump
- Low-oil shutdown protection
- Remote throttle and choke controls
- Key switch, fuel tank, and muffler not included
Specifications
| Specification | Details |
|---|---|
| Brand | Kohler |
| Series | Command PRO |
| Engine model | CH680 |
| Specification number | CH680-3165 |
| Manufacturer part number | PA-CH680-3165 |
| OEM application | Select Toro equipment |
| Engine orientation | Horizontal shaft |
| Engine configuration | V-twin |
| Engine cycle | Four-cycle |
| Valve configuration | OHV |
| Displacement | 674cc / 41.1 cu. in. |
| Rated power | 22.5 HP / 16.8 kW |
| Rated speed | 3,600 RPM |
| Peak torque | Approximately 36.8 ft-lb / 49.9 Nm |
| Peak torque speed | Approximately 2,400 RPM |
| Bore | 3.15 in. / 80 mm |
| Stroke | 2.64 in. / 67 mm |
| Compression ratio | Approximately 8.5:1 |
| Cooling system | Forced air |
| Fuel type | Unleaded gasoline |
| Fuel delivery | Carbureted |
| Fuel pump | Mechanical fuel pump included |
| Starting system | 12V electric start |
| Charging system | 15 amp with regulator/control |
| Key switch | Not included |
| Ignition system | Electronic |
| Governor | Mechanical |
| Flywheel | Heavy flywheel |
| Low-oil protection | Included |
| Lubrication system | Full pressure |
| Oil cooler | Integrated |
| Oil filter | Full-flow spin-on filter |
| Oil capacity | Approximately 2 US qt. / 1.9 L |
| Air cleaner | Dual-element flat air cleaner |
| Throttle control | Remote |
| Choke control | Remote |
| PTO shaft type | Straight, keyed shaft |
| PTO shaft diameter | 1-1/8 in. |
| PTO shaft length | Approximately 4.30 in. |
| Crankshaft end | 7/16-20 drilled and tapped |
| PTO rotation | Counterclockwise when viewed from PTO side |
| Fuel tank | Not included |
| Muffler | Not included |
| Approximate dimensions | 14 × 17.7 × 19 in. |
| Approximate base dry weight | 90 lb |
| UPC/GTIN | 885612994561 |
| Warranty | Three-year limited manufacturer warranty |
