Kohler CV682-3013 Vertical Command PRO Engine, Replaces CV680-3039 for SALE
$ 1.459,70
Brand: Kohler EnginesShop the Kohler CV682-3013 Vertical Command PRO Engine, Replaces CV680-3039 with a 1-1/8 x 4.30-inch shaft for Toro and Exmark equipment. Replaces CV680-3039.

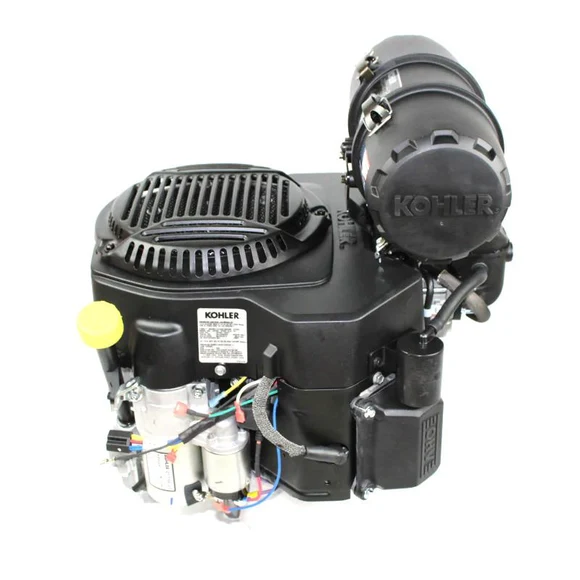

Kohler CV682-3013 Vertical Command PRO Engine, Replaces CV680-3039
The Kohler CV682-3013 Command PRO Vertical Engine is a commercial-grade replacement engine designed for select Toro and Exmark equipment. This E3 specification directly replaces Kohler CV680-3039 and may also supersede CV680-3021, subject to complete installation verification.
Key Features
- Commercial-duty Kohler Command PRO engine
- E3 Toro/Exmark specification
- Replaces Kohler CV680-3039
- Additional cross-reference: CV680-3021
- 694cc four-cycle V-twin OHV design
- Rated at 22.5 horsepower
- Maximum torque of approximately 39 ft-lb
- Electric start
- 15-amp charging system
- Full-pressure lubrication
- Full-flow spin-on oil filter
- Cast-iron cylinder liners
- Heavy-duty snorkel-style air cleaner
- Mechanical fuel pump
- Electronic ignition
- Large 1-1/8-inch keyed PTO shaft
- Muffler and fuel tank not included
Specifications
| Specification | Details |
|---|---|
| Brand | Kohler |
| Series | Command PRO |
| Engine model | CV682 |
| Specification number | CV682-3013 |
| Manufacturer part number | PA-CV682-3013 |
| Replaces | CV680-3039 |
| Additional cross-reference | CV680-3021 |
| OEM specification | E3 Toro/Exmark |
| Engine orientation | Vertical shaft |
| Engine configuration | V-twin |
| Engine cycle | Four-cycle |
| Valve configuration | OHV |
| Engine block | Aluminum with cast-iron cylinder liners |
| Displacement | 694cc / 42.4 cu. in. |
| Rated power | 22.5 HP / 16.8 kW |
| Rated speed | Approximately 3,600 RPM |
| Maximum torque | 39 ft-lb / 52.9 Nm |
| Maximum torque speed | Approximately 2,800 RPM |
| Bore | 3.15 in. / 80 mm |
| Stroke | 2.72 in. / 69 mm |
| Compression ratio | 8.7:1 |
| Cooling system | Forced air |
| Fuel type | Unleaded gasoline |
| Fuel delivery | Carbureted |
| Fuel pump | Mechanical fuel pump included |
| Starting system | Electric start |
| Charging system | 15 amp |
| Ignition system | Electronic |
| Governor | Mechanical |
| Lubrication system | Full pressure |
| Oil filter | Full-flow spin-on filter |
| Oil capacity | Approximately 2 US qt. / 1.9 L |
| Air cleaner | Heavy-duty snorkel-style air cleaner |
| PTO shaft type | Straight, keyed shaft |
| PTO shaft diameter | 1-1/8 in. |
| PTO shaft length | Approximately 4.30 in. / 4-5/16 in. |
| Keyway width | 1/4 in. |
| Crankshaft end | 7/16-20 tapped |
| PTO rotation | Counterclockwise when viewed from PTO side |
| Muffler | Not included |
| Fuel tank | Not included |
| Approximate dimensions | 20.5 × 16.2 × 19.9 in. |
| Approximate dry weight | 105 lb |
| UPC/GTIN | 885612210852 |
| Warranty | Three-year limited manufacturer warranty |
