Brand: Kohler EnginesShop the Kohler KT735-3076 Vertical 7000 Series Engine, E16 MTD Spec with electric start and a 1 x 3.16-inch keyed shaft. E16 MTD mower specification.

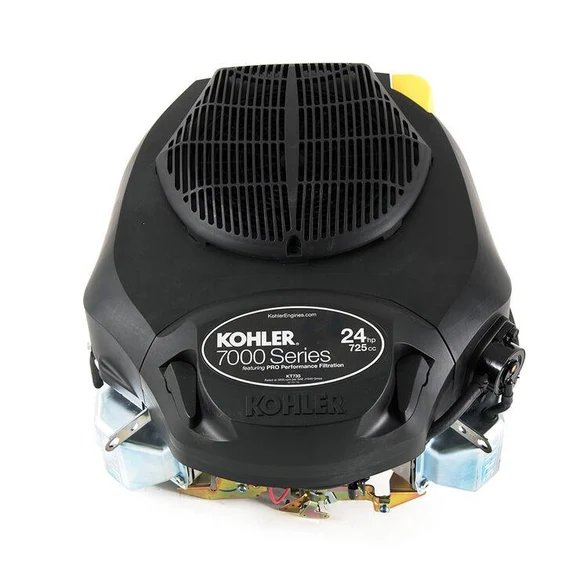

Kohler KT735-3076 Vertical 7000 Series Engine, E16 MTD Spec
The Kohler KT735-3076 7000 Series Vertical Engine is a residential-grade V-twin engine designed specifically for select MTD-manufactured riding mowers and lawn tractors. Its E16 MTD configuration may be found on certain Cub Cadet, Troy-Bilt, Craftsman, and other MTD-built equipment, although compatibility must be confirmed using the original engine specification number.
Key Features
- Kohler 7000 Series V-twin engine
- E16 MTD equipment specification
- Designed for select MTD-built riding mowers
- 725cc four-cycle OHV configuration
- Maximum output of 24 horsepower
- Approximately 40.5 ft-lb of torque
- Bendix-drive electric starter
- 15-amp charging system
- Pressure lubrication
- Full-flow spin-on oil filter
- Cast-iron cylinder liners
- Low-profile air cleaner
- Mechanical fuel pump
- Electronic ignition
- One-inch keyed vertical PTO shaft
Specifications
| Specification | Details |
|---|---|
| Brand | Kohler |
| Series | 7000 Series |
| Engine model | KT735 |
| Specification number | KT735-3076 |
| Manufacturer part number | PA-KT735-3076 |
| OEM specification | E16 MTD |
| Intended application | Select MTD-built riding mowers and lawn tractors |
| Engine orientation | Vertical shaft |
| Engine configuration | V-twin |
| Engine cycle | Four-cycle |
| Valve configuration | OHV |
| Engine block | Aluminum with cast-iron cylinder liners |
| Displacement | 725cc / 44.2 cu. in. |
| Maximum power | 24 HP / 17.9 kW |
| Rated speed | Approximately 3,600 RPM |
| Maximum torque | 40.5 ft-lb / 54.9 Nm |
| Maximum torque speed | Approximately 2,400 RPM |
| Bore | 3.27 in. / 83 mm |
| Stroke | 2.64 in. / 67 mm |
| Compression ratio | 9.1:1 |
| Cooling system | Forced air |
| Fuel type | Unleaded gasoline |
| Fuel system | Carbureted |
| Fuel pump | Mechanical fuel pump included |
| Starting system | 12V Bendix-drive electric start |
| Charging system | 15 amp |
| Ignition system | Electronic |
| Governor | Mechanical |
| Lubrication system | Pressure lubrication |
| Oil filter | Full-flow spin-on filter |
| Oil capacity | Approximately 2 US qt. / 1.9 L |
| Air cleaner | Low-profile air cleaner |
| PTO shaft type | Straight, keyed shaft |
| PTO shaft diameter | 1 in. |
| PTO shaft length | Approximately 3.16 in. / 3-5/32 in. |
| Keyway width | 1/4 in. |
| Crankshaft end | 7/16-20 tapped |
| PTO rotation | Counterclockwise when viewed from PTO side |
| Fuel tank | Equipment-mounted; not included with engine |
| Muffler | Verify with seller; equipment-specific configuration |
| Approximate dimensions | 18.6 × 17.5 × 13.9 in. |
| Approximate dry weight | 85 lb |
| Warranty | Three-year limited residential warranty; other-use terms may differ |
