Kohler CH680-3045 Horizontal Engine, Replaces PA-76589 for SALE
$ 1.488,30
Brand: Kohler EnginesShop the Kohler CH680-3045 Horizontal Engine, Replaces PA-76589 with electric start, 15-amp charging and a tapered shaft for select Lincoln Ranger welders.

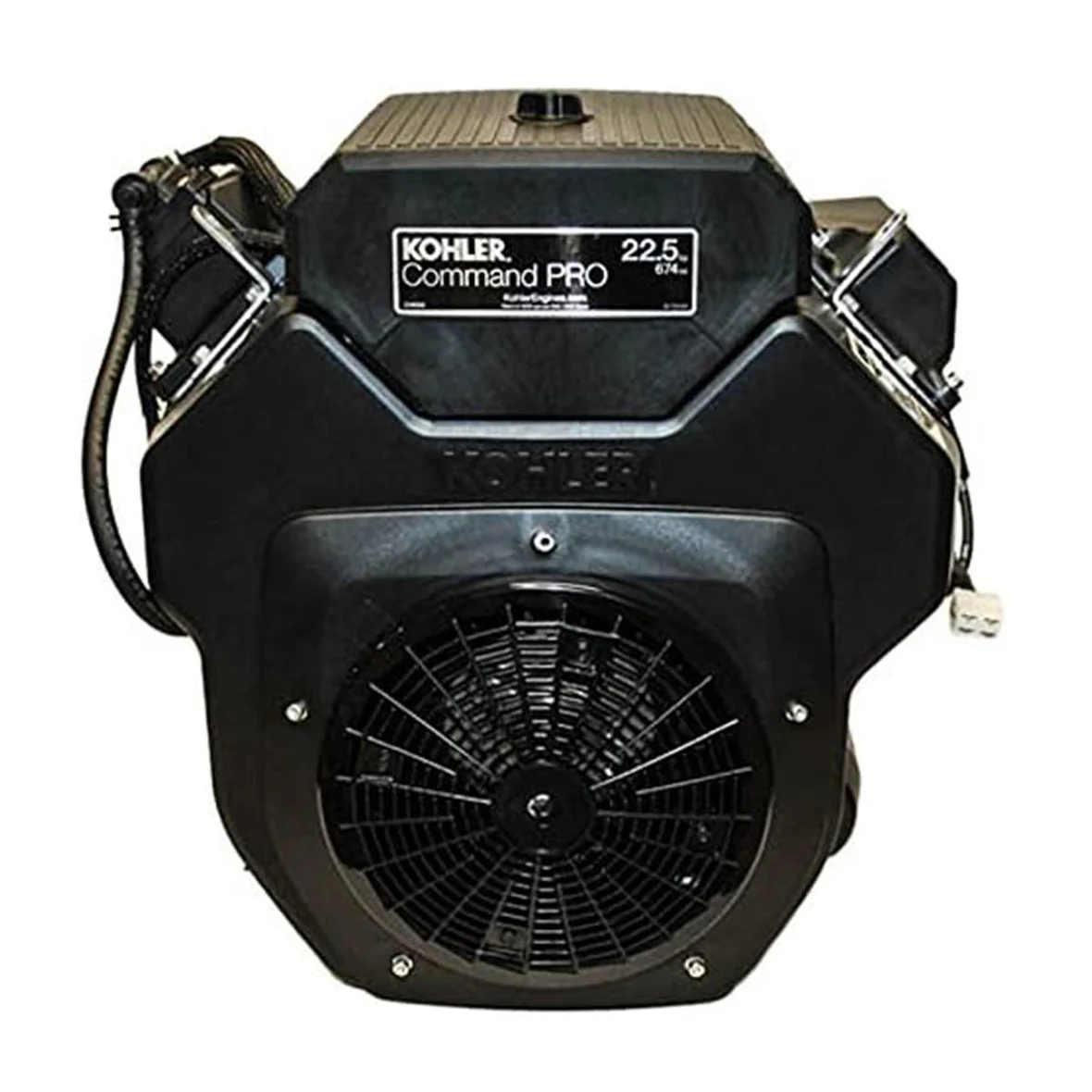

Kohler CH680-3045 Horizontal Engine, Replaces PA-76589
The Kohler CH680-3045 Command PRO Horizontal Engine is an application-specific replacement engine designed for select Lincoln Ranger engine-driven welders. It is marketed as a replacement for PA-76589 and may also cross-reference PA-76635, CH23-76635, and CH22-76529, subject to complete equipment and engine-specification verification.
Key Features
- Commercial-duty Kohler Command PRO engine
- Lincoln Ranger welder specification
- Marketed as a replacement for PA-76589
- Additional legacy references: PA-76635, CH23-76635 and CH22-76529
- 674cc four-cycle V-twin OHV design
- Rated at 22.5 gross horsepower
- Approximately 36.8 ft-lb of peak torque
- Specialized tapered PTO crankshaft
- Solenoid-shift electric starter
- 15-amp regulated charging system
- Electronic ignition
- Full-pressure lubrication
- Full-flow spin-on oil filter
- Cast-iron cylinder liners
- Hydraulic valve lifters
- Mechanical fuel pump
- Dual-element air cleaner
- Muffler and control panel not included
Specifications
| Specification | Details |
|---|---|
| Brand | Kohler |
| Series | Command PRO |
| Engine model | CH680 |
| Specification number | CH680-3045 |
| Manufacturer part number | PA-CH680-3045 |
| Replaces | PA-76589 |
| Additional cross-references | PA-76635, CH23-76635 and CH22-76529 |
| OEM application | Select Lincoln Ranger engine-driven welders |
| Engine orientation | Horizontal shaft |
| Engine configuration | V-twin |
| Engine cycle | Four-cycle |
| Valve configuration | OHV |
| Engine block | Aluminum with cast-iron cylinder liners |
| Displacement | 674cc / 41.1 cu. in. |
| Gross power | 22.5 HP / 16.8 kW |
| Rated speed | 3,600 RPM |
| Peak torque | Approximately 36.8 ft-lb / 49.9 Nm |
| Peak torque speed | Approximately 2,400 RPM |
| Bore | 3.15 in. / 80 mm |
| Stroke | 2.64 in. / 67 mm |
| Compression ratio | 8.5:1 |
| Cooling system | Forced air |
| Fuel type | Unleaded gasoline |
| Fuel delivery | Carbureted |
| Fuel pump | Mechanical fuel pump included |
| Starting system | 12V solenoid-shift electric start |
| Charging system | 15 amp, regulated |
| Ignition system | Electronic |
| Governor | Mechanical, variable speed |
| Valve lifters | Hydraulic |
| Lubrication system | Full pressure |
| Oil filter | Full-flow spin-on filter |
| Oil capacity | Approximately 2 US qt. / 1.9 L |
| Air cleaner | Dual-element air cleaner |
| PTO shaft type | Tapered, non-thrust style |
| PTO shaft length | Approximately 2.93 in. |
| Crankshaft part reference | 24 014 359-S |
| PTO rotation | Counterclockwise when viewed from PTO side |
| Key switch | Not included |
| Engine controls | Not included |
| Muffler | Not included |
| Fuel tank | Not included |
| Approximate dimensions | 14 × 17.7 × 19 in. |
| Approximate configured dry weight | 106 lb |
| UPC/GTIN | 650531995636 |
| Warranty | Three-year limited manufacturer warranty |
