Kohler CV173-3002 Vertical Command PRO Engine with Fuel Tank and Side Pull Start for SALE
$ 339,90
Brand: Kohler EnginesBuy the Kohler CV173-3002 Vertical Command PRO Engine with Fuel Tank and Side Pull Start with a fuel tank, side-pull recoil start, and 7.75 ft-lb of gross torque.

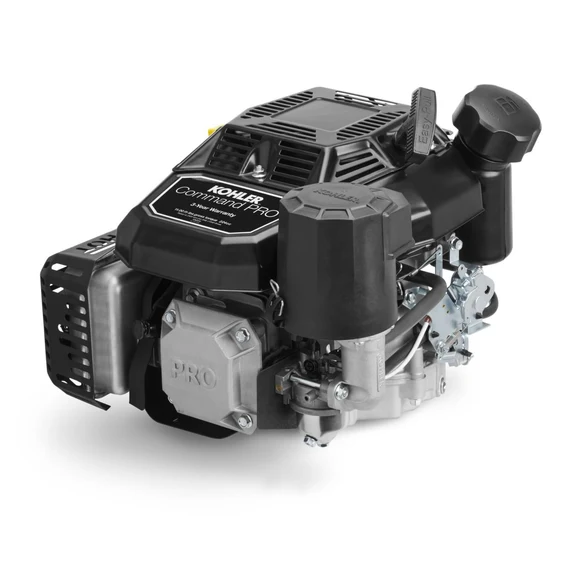

Kohler CV173-3002 Vertical Command PRO Engine with Fuel Tank and Side Pull Start
The Kohler CV173-3002 Vertical Command PRO Engine is engineered for dependable performance in compatible walk-behind lawn mowers and other equipment requiring a vertical PTO shaft. Its 173cc, four-cycle OHV single-cylinder design delivers approximately 4 HP and 7.75 ft-lb of gross torque, providing consistent power for demanding mowing applications.
Key Features
- 173cc four-cycle OHV engine
- Approximately 4 HP output
- 7.75 ft-lb gross torque
- Vertical stepped crankshaft
- 7/8-inch tapered shaft section
- 3.21-inch crankshaft length
- 3/16-inch keyway
- Side-pull recoil starter
- Integrated 1.4-liter fuel tank
- Variable-speed operation
- Full-pressure lubrication
- Quad-Clean air-filtration system
- Easy-Pull starting technology
- Electronic ignition
- Cast-iron cylinder liner
- Forced-air cooling
Specifications
| Specification | Details |
|---|---|
| Brand | Kohler |
| Model | CV173-3002 |
| Manufacturer part number | PA-CV173-3002 |
| Engine series | Command PRO |
| Engine type | Four-cycle OHV gasoline engine |
| Cylinder configuration | Single cylinder |
| Shaft orientation | Vertical |
| Displacement | 173cc (10.6 cu. in.) |
| Power output | Approximately 4 HP |
| Gross torque | 7.75 ft-lb (10.5 Nm) |
| Torque speed | Approximately 2,600 RPM |
| Maximum operating speed | Approximately 3,300 RPM |
| Bore × stroke | 70 × 45 mm (2.75 × 1.80 in.) |
| Compression ratio | 8.0:1 |
| Crankshaft type | Stepped vertical shaft |
| Crankshaft length | 3.21 in. |
| Shaft profile | 7/8-inch tapered |
| Keyway | 0.1875 in. (3/16 in.) |
| Starting system | Side-pull recoil |
| Speed control | Variable speed |
| Governor | Mechanical |
| Ignition system | Electronic magneto |
| Cooling system | Forced air |
| Lubrication system | Full pressure |
| Air cleaner | Quad-Clean filtration |
| Fuel system | Carburetor with fixed main jet |
| Fuel type | Unleaded gasoline |
| Fuel-tank capacity | 1.4 L |
| Oil capacity | Approximately 0.6 L (0.63 US qt.) |
| Recommended oil | SAE 10W-30 or API SJ and higher* |
| Cylinder liner | Cast iron |
| Dimensions | Approximately 17.1 × 13.9 × 11.1 in. |
| Dry weight | Approximately 36.2 lb. |
