Kohler CV200-3002 Vertical Command PRO Engine with Fuel Tank and Side Pull for SALE
$ 414,70
Brand: Kohler EnginesBuy the Kohler CV200-3002 Vertical Command PRO Engine with Fuel Tank and Side Pull with a fuel tank, side-pull starter, 25mm shaft, and 9.5 ft-lb torque.

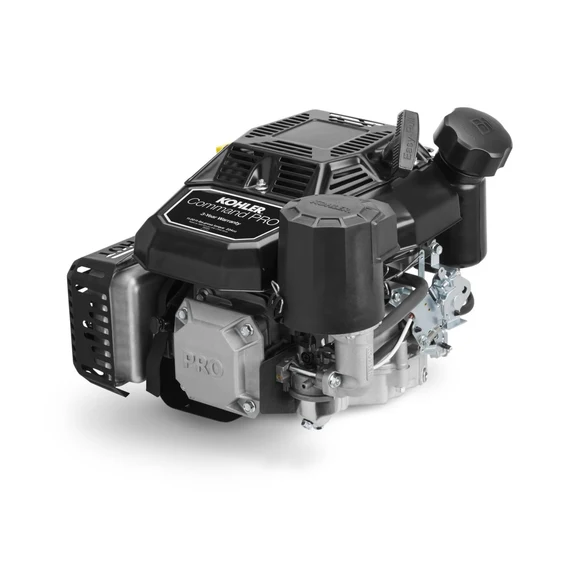

Kohler CV200-3002 Vertical Command PRO Engine with Fuel Tank and Side Pull
The Kohler CV200-3002 Vertical Command PRO Engine is engineered for commercial walk-behind lawn mowers and other compatible equipment requiring a metric vertical PTO shaft. Its 200cc, four-cycle OHV single-cylinder design delivers 9.5 ft-lb of gross torque and is commonly rated at approximately 5 HP.
Key Features
- 200cc four-cycle OHV engine
- Approximately 5 HP output
- 9.5 ft-lb gross torque
- 25mm vertical crankshaft
- 3.11-inch crankshaft length
- 3/16-inch keyway
- Two #505 Woodruff-key slots
- 7/16″-20 drilled and tapped shaft end
- Side-pull recoil starter
- Easy-Pull starting technology
- Integrated 1.4-liter Accu-Fill fuel tank
- Variable-speed operation
- Full-pressure lubrication with oil filter
- Electronic ignition
- Quad-Clean air filtration
- Cast-iron cylinder liner
- Muffler included
Specifications
| Specification | Details |
|---|---|
| Brand | Kohler |
| Model | CV200-3002 |
| Manufacturer part number | PA-CV200-3002 |
| Engine series | Command PRO |
| Engine type | Four-cycle OHV gasoline engine |
| Cylinder configuration | Single cylinder |
| Recommended application | Commercial walk-behind mowers |
| Shaft orientation | Vertical |
| Displacement | 200cc (12.2 cu. in.) |
| Advertised power | Approximately 5 HP |
| Gross torque | 9.5 ft-lb (12.9 Nm) |
| Peak-torque speed | Approximately 2,600 RPM |
| Maximum governed speed | Approximately 3,500–3,600 RPM |
| Idle speed | Approximately 1,800 RPM |
| Bore × stroke | 73 × 48 mm (2.87 × 1.89 in.) |
| Compression ratio | 8.9:1 |
| Crankshaft diameter | 25mm |
| Crankshaft length | 3.11 in. |
| Keyway | 0.1875 in. (3/16 in.) |
| Additional shaft slots | Two #505 Woodruff-key slots |
| Crankshaft end | Drilled and tapped |
| Crankshaft-end thread | 7/16″-20 UNF |
| Starting system | Side-pull recoil |
| Starting technology | Easy-Pull |
| Speed control | Variable speed |
| Governor | Mechanical |
| Ignition system | Electronic magneto |
| Fuel system | Carburetor with fixed main jet |
| Fuel type | Unleaded gasoline |
| Fuel-tank capacity | 1.4 L |
| Fuel-tank design | Accu-Fill angled filler neck |
| Cooling system | Forced air |
| Lubrication system | Full pressure |
| Oil filter | Included |
| Oil capacity | Approximately 0.63 US qt. (0.6 L) |
| Air cleaner | Quad-Clean filtration |
| Cylinder liner | Cast iron |
| Muffler | Included |
| Approximate dimensions | 15.7 × 13.9 × 11.1 in. |
| Equipped weight | Approximately 41.1 lb. |
